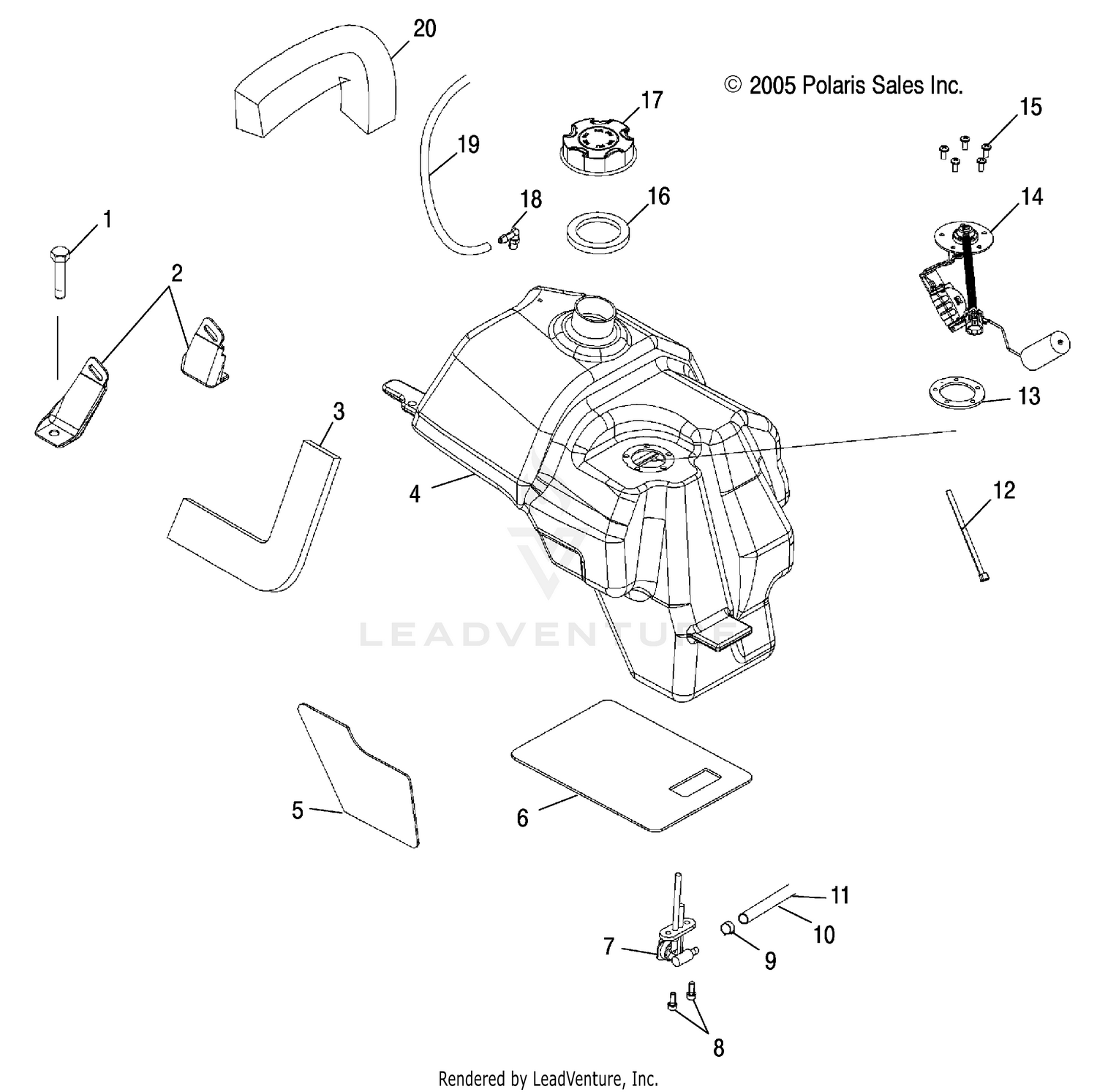

Fuel System - A06mh68aa/ad/af (4999200179920017b01) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Screw
7515179
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Bracket, Fuel Cover Mount, LH
5247184
|
$29.99 | ||
|
Unavailable |
|||
|
#2
Bracket, Fuel Cover Mount, RH
5247185
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Seal, Foam
5812265
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Asm., Fuel Tank w/Sender
2520556
|
$892.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Foil
5812004
Superseded by 5813044
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Foil
5812005
Superseded by 5813045
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Valve, Fuel, On/Off/Reserve
7052331
|
$49.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Screw
7515136
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
HOSE CLAMP, RED
7080003
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
Hose, Fuel
8450103
Superseded by 8450117-250
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Sheath, Reflective Sleeve
8450108-29
|
|||
|
Unavailable |
|||
|
#12
CABLE-TIE,25-76MM,WEATH.-RES.
7080492
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
Gasket
5810858
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Sender, Fuel, Lever
2410554
|
|||
|
Unavailable |
|||
|
#15
Screw
7518257
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Gasket
5812123
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CAP-GAS TANK
5433687
Superseded by 5450389
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Vent, Tank
5431053
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Line, Fuel
8360009-600
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Foam
5812776
|
$3.09 | ||
|
Unavailable |
|||
