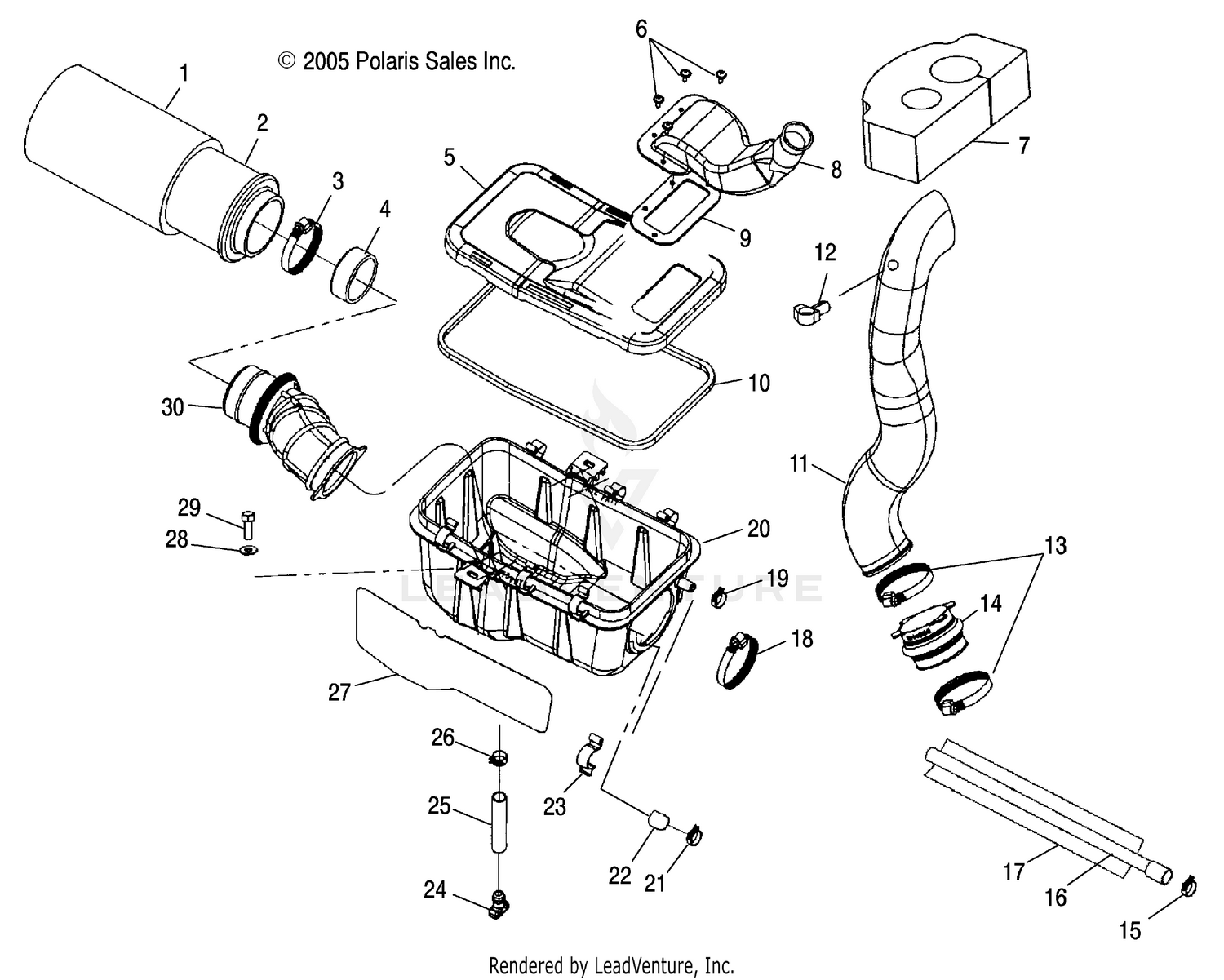

Air Box - A06mh68aa/ad/af (4999200179920017a12) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Filter, Precleaner Sleeve
5811633
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
FILTER, AIR INTAKE
7080595
Superseded by 7082101
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Clamp, Narrow Band
7080413
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
Sleeve, Carburetor, Inner
5433847
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Cover, Air Box
5432868
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCR-#8X1/2,TR/PH,TYPE B-Y
7517317
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Seal, Foam
5812775
|
$15.79 | ||
|
Available to order. Add to View Price |
|||
|
#8
Duct, Air Intake
5434013
Superseded by 5436938
|
$29.79 | ||
|
Available to order. Add to View Price |
|||
|
#9
Gasket, Intake
5411422
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL, COVER
5811482
Superseded by 5812829
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Duct, Clutch Air Inlet
5434044
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Clip
7670102
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Clamp, Hose
7080451
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
Boot, Clutch Intake
5412634
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Clamp, Hose, Spring
7080694
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
KIT-BREATHER LINE,SINGLE PC,W/S
5412615
Superseded by 2202744
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Sheath, Reflective Sleeve
8450108-34
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Clamp, Narrow Band
7080511
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Clamp, Hose
7080699
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Box, Air
5433678
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Clamp, Hose
7080534
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Cap, End
5433396
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP-AIR BOX
5242044
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Plug, Trap
5432377
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Line, Fuel
8450059-150
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Clamp, Hose
7080650
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Foil
5811650
|
|||
|
Unavailable |
|||
|
#28
Washer, Flat
7555859
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
Screw
7515179
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Boot, Carburetor
5412066
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
