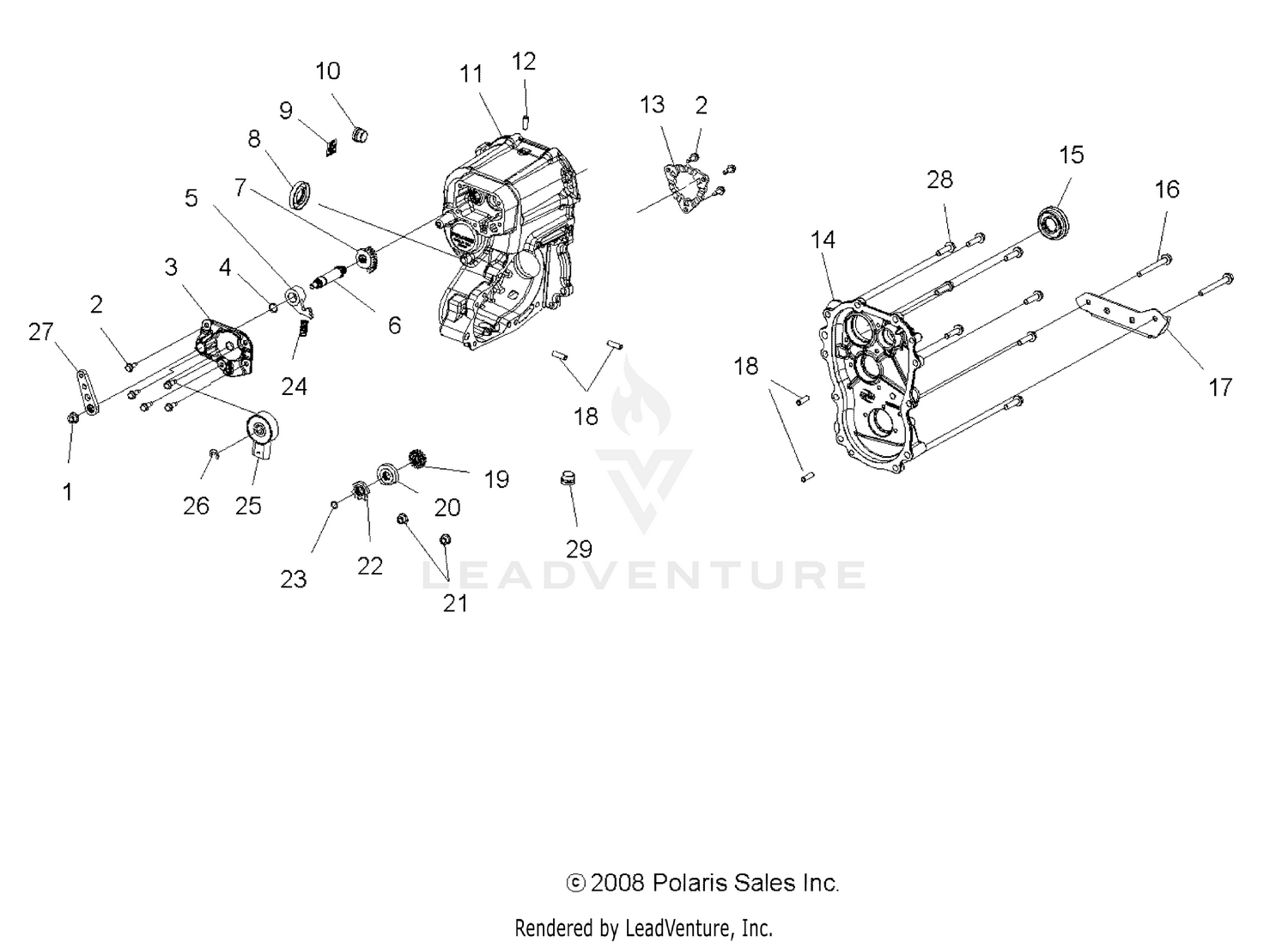

Transmission - A07mh68ax/ay/az (49atvgearcase800efi) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
Asm., Gearcase
1332459
|
|||
|
Unavailable |
|||
|
#1
Nut, Lock
3233961
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
Screw
3233826
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Cover
3234188
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-Ring
3233869
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Pawl, Detent
3233829
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Shaft, Shift
3233831
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR-SECTOR,31T
3233832
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Seal, Triple Lip
3233788
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Label, Oil Fill/Level Check
3234143
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#10
Plug, Hex, Hollow w/O-Ring
3233794
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Gearcase, Main
3234358
|
$774.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Tube, Vent
3233524
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Plate, Park
3233915
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Cover, Main, LH
3234221
|
$444.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Seal, Dual Lip
3233874
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Screw
3234042
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Bracket, Transmission Mount
3234142
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Pin, Dowel
3233247
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Gear, 16T
3233839
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Disc, Lockout
3233838
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
3234043
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Star, Detent
3233909
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-Ring
3233076
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Spring, Compression
3234359
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SWITCH-ROTARY,6 PIN
3233835
Superseded by 3236115
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Ring, Retaining
3233834
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Bellcrank
3234232
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Screw
3234114
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Plug, Hollow Hex
3234529
Superseded by 3233794
|
$18.99 | ||
|
Unavailable |
|||
