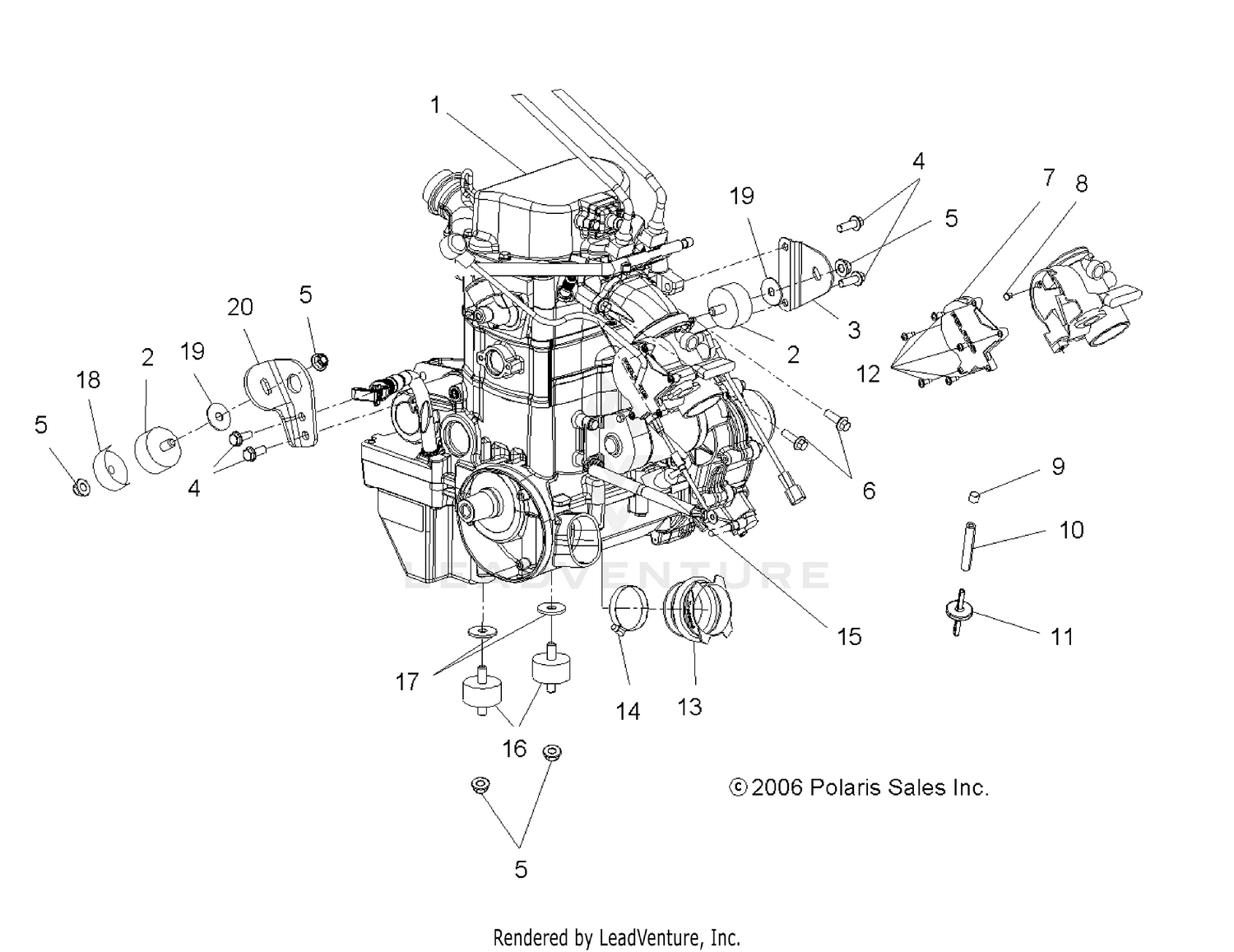

Engine, Mounting - A07mh68ax/ay/az (49atvengine07700) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Kit, Short Block, 700 EFI
2203064
|
|||
|
Unavailable |
|||
|
#2
ISOLATOR-3/8-24M/M,60DURO
3110044
Superseded by 3023593
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Bracket, Mount, Engine, Top
5247368
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Bolt
7518364
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Nut
7547108
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
Screw
7516734
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Asm., Cover and O-Ring
1202578
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GUIDE,CABLE
3131514
Superseded by 3130543
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP-HOSE, (LARGE GREEN)
7080307
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
Hose
8450113
|
|||
|
Unavailable |
|||
|
#11
Valve, Check
7052038
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Screw, Shoulder
3131515
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Boot, Clutch Intake
5412634
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Clamp, Hose
7080451
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
Cable, Battery/Frame
4011139
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Isolator
3021119
Superseded by 3022076
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Washer, Flat
7555815
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Bracket, Torque Stop
5245043
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Washer
7555823
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
Mount, Engine, Front, Lower, Black
5244771-067
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
