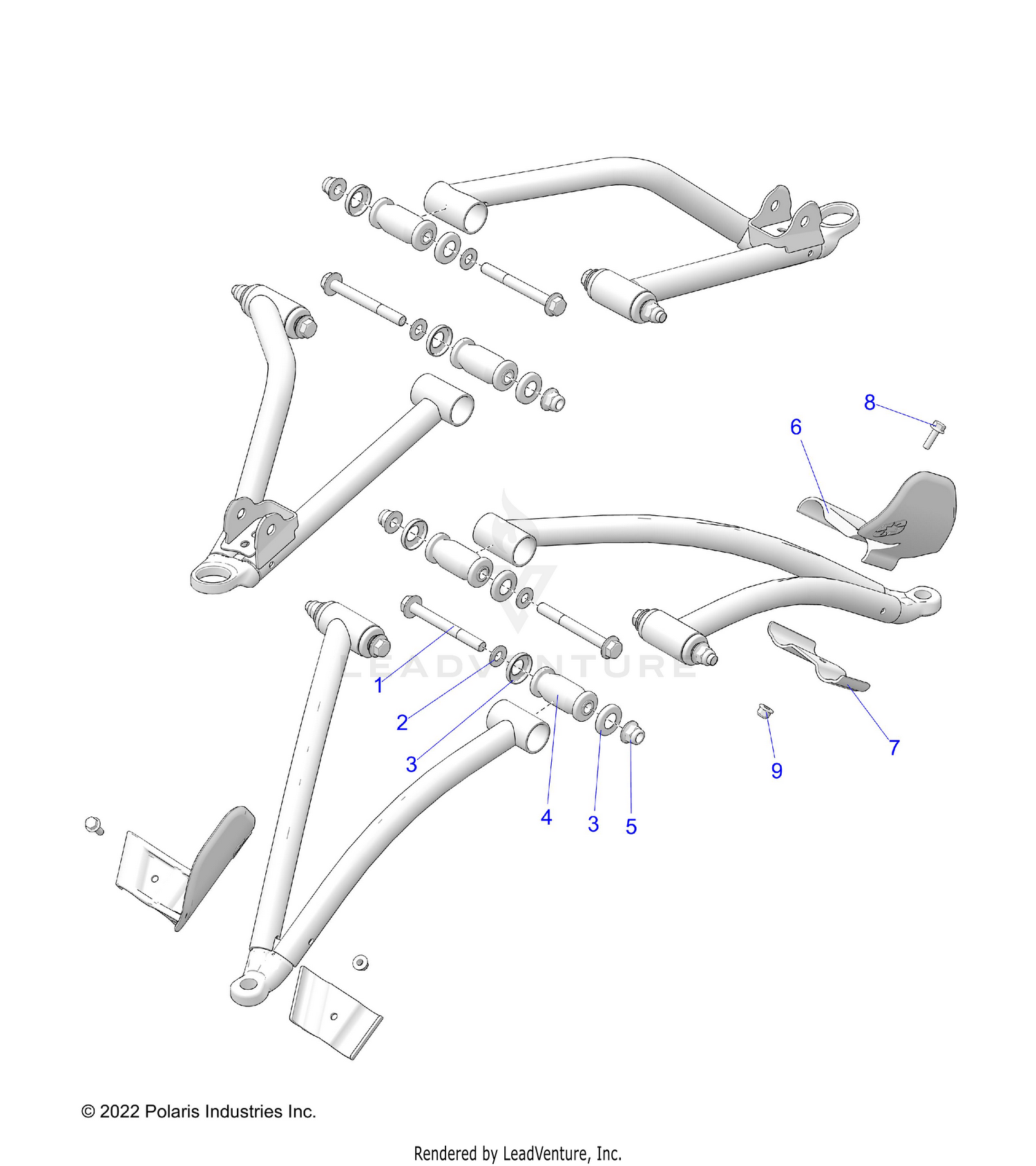

Suspension, A-arm Mounting - A25shd57a9 (c102438) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SCR-HXFL-M10X1.25X90 10.9 ZOD
7521024
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER-3/8 FW SAE STL THRU-HRD
7556153
|
$2.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
WASHER-CAP,SUSP,ID 28.8
7557210
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSHING-SUSPENSION,RUBBER
5417111
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BRKT-CV SHIELD,LH,SP
5274881
|
$29.99 | ||
|
Unavailable |
|||
|
#6
BRKT-CV SHIELD,RH,SP
5274882
|
$29.99 | ||
|
Unavailable |
|||
|
#7
SHIELD-CV,FRONT,LH,SP,BLK
5465784-070
|
$24.99 | ||
|
Unavailable |
|||
|
#7
SHIELD-CV,FRONT,RH,SP,BLK
5465785-070
|
$24.99 | ||
|
Unavailable |
|||
|
#8
SCR-HXFL-M6X1.0X25 10.9 ZFB
7521331-25
|
$1.99 | ||
|
Unavailable |
|||
|
#9
NUT-HXFL-M6X1.0 8 ZTB NYL
7548027
|
$1.99 | ||
|
Unavailable |
|||
