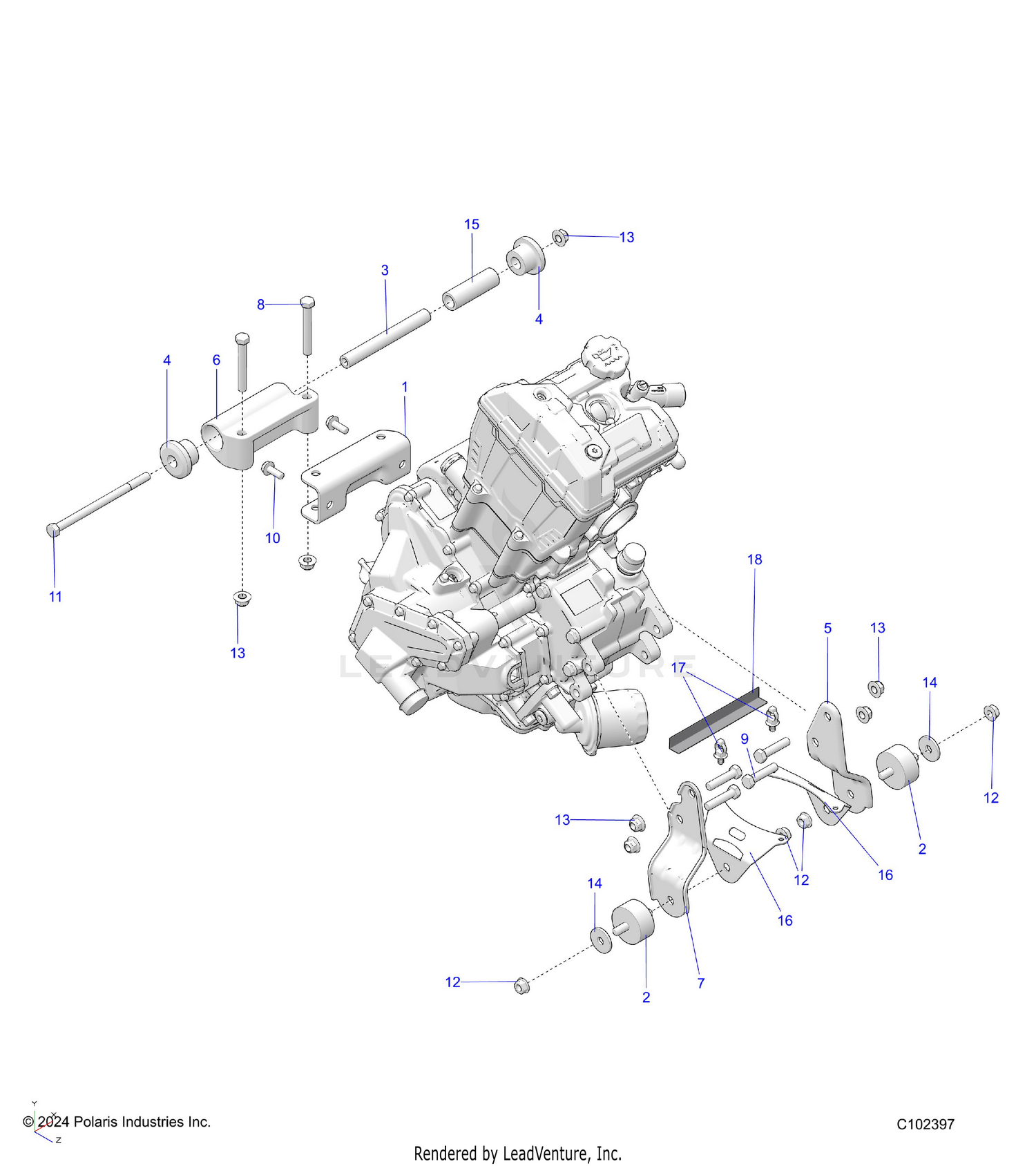

Engine, Mounting & Long Block - A25shd57a9 (c102397) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
K-LONG BLOCK ATV 570
2208756
|
$4,964.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
MOUNT, ENGINE, REAR
5256926
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ISOLATOR-3/8-24M/M,60DURO
3024012
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE, ISOLATOR, REAR
5337887
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
ISOLATOR-RUBBER,40D,SILICONE
5415404
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
MOUNT, ENGINE, FRONT, LH
5259038
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
MOUNT-ENGINE,REAR (CAST)
5634600
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
MOUNT, ENGINE, FRONT, RH
5259039
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCR-3/8-24X2 3/4HX HD CP GR5-Y
7515417
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOLT(10)
7515528
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Bolt, Hex, Flange
7518364
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, 3/87547423
7518481
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT-3/8-24 FLG LOC
7547263
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, FLANGE, LOCK
7547108
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
Washer, Flat
7555761
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
HOSE, ENGINE MOUNT
5415442
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRKT-STATOR,BLK
5274058-329
|
$15.99 | ||
|
Unavailable |
|||
|
#17
CLIP FIR-TREE,DIA6-33MM
7081496
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
TRAY-ROUTING,150X15X15
7082907
|
$7.99 | ||
|
Unavailable |
|||
