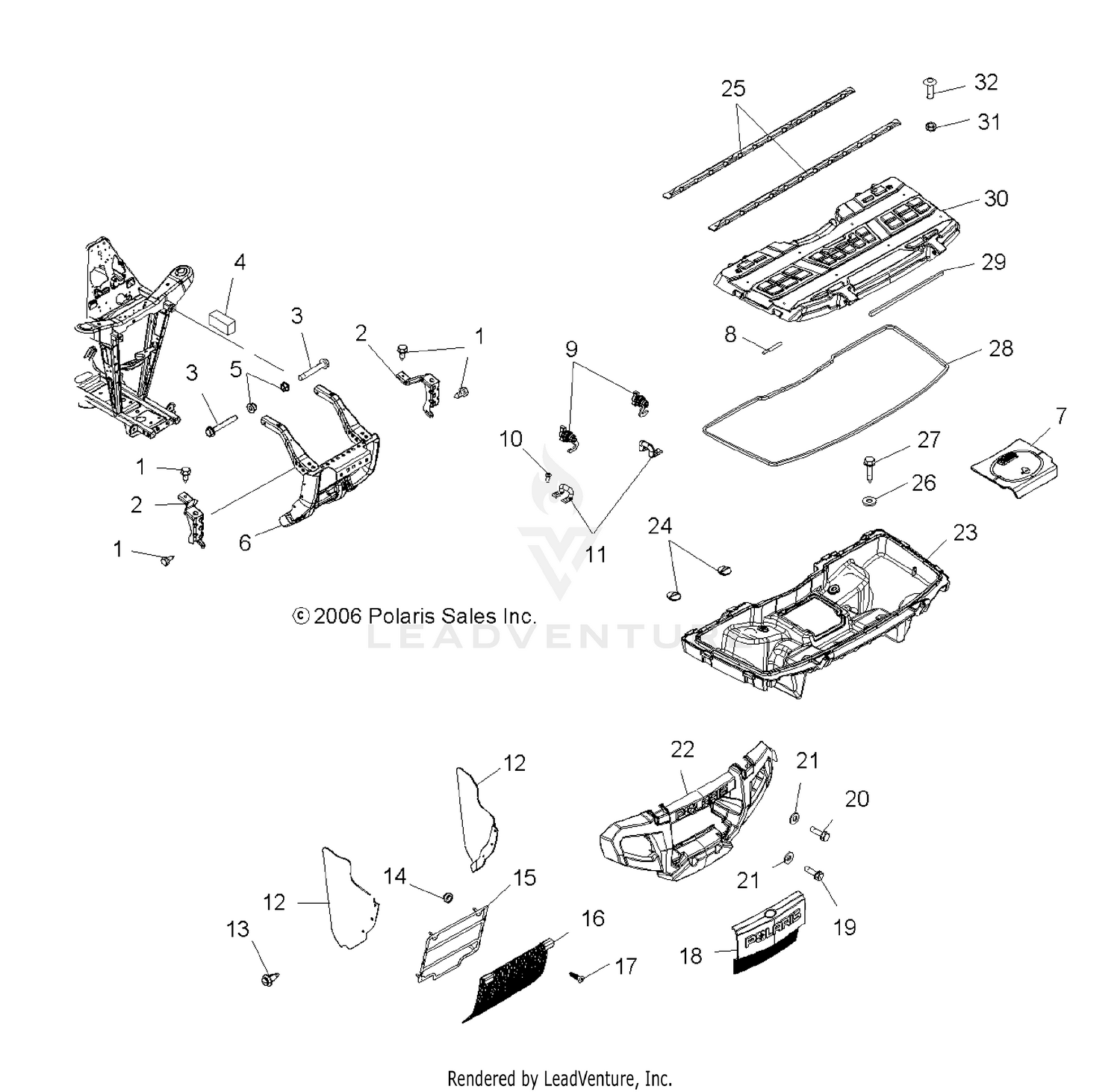

Storage, Front And Bumper Mounting - A07mh46aa/az (49atvbumpersp450) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Screw
7515399
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
Support, Rack, Black, LH
1014591-067
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Support, Rack, Black, RH
1014592-067
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Bolt, Flange
7518341
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Plug, Frame
5810467
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT-5/16-18 HX FLG NL-Y
7542343
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Guard, Brush, Black
1015033-067
Superseded by 1017050-067
|
$329.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Cover, Radiator, Front
5413189
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Pin, Hinge, Front
5134576
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Latch, LH
7081241
|
$29.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
Latch, LH
7081421
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Latch, RH
7081242
|
$16.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
Latch, RH
7081422
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Screw
7512076
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
Bracket, Latch Box
5334257
Superseded by 5252765
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Shield, Side, Radiator, LH
5434314
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Shield, Side, Radiator, RH
5434315
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Rivet
7661855
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
Grommet, Rubber Mount
5412504
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Cover, Radiator
5435046
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Grill, Brush Guard, Black
5247507-067
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Screw
7518046
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Panel, Bumper, Front, Black
5435357-070
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Screw
7518383
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Bolt
7518382
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Washer, Flat
7556341
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Asm., Bumper, Front, Black
2633271-070
Superseded by 2633527-070
|
$234.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
Asm., Bumper, Front, Black
2633520-070
Superseded by 2633527-070
|
$234.99 | ||
|
Unavailable |
|||
|
#23
Kit, Asm., Lower Box, Front
2633377
Superseded by 2203484
|
$384.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
PLUG-COMPARTMENT
5412981
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLUG-COMPARTMENT
5418084
|
$3.99 | ||
|
Unavailable |
|||
|
#25
Channel, Lid, Front, Flat Black Wrinkle
5247653-418
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Washer, Flat
7556175
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
Screw
7517208
|
$2.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
Seal
5521693
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Seal, Lid/Bumper
5521706
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Asm., Front Cover
2633162
|
$194.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Nut, Nylok
7542122
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
Screw
7518427
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
