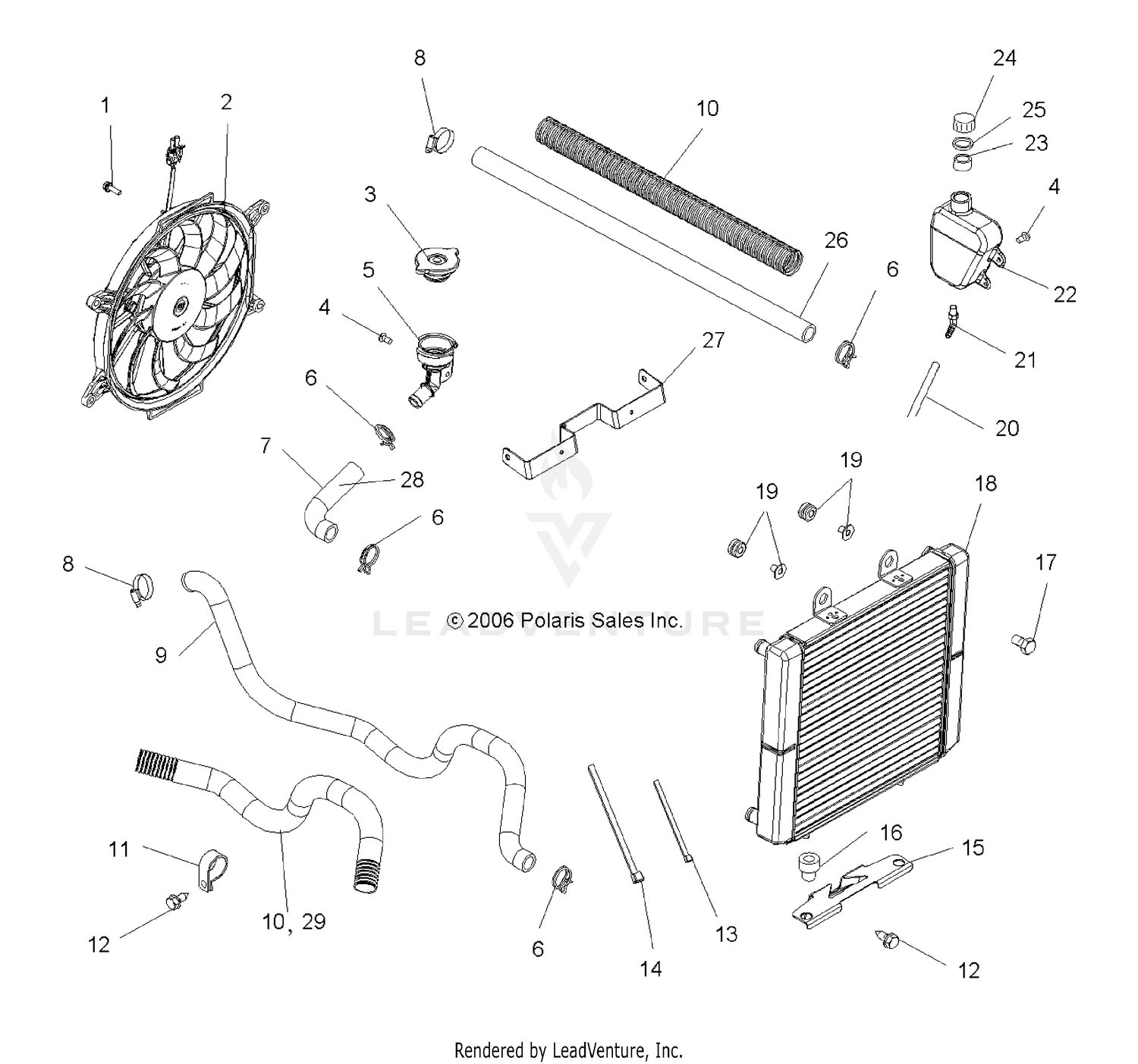

Cooling System - A07mh46aa/az (49atvcoolsp450) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Bolt
7517975
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Asm., Fan and Motor
2410383
|
$236.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP, PRESSURE
1240044
Superseded by 1240508
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Screw
7512084
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
Neck, Filler
5412402
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Clamp
7080826
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Hose, Filler Neck
5412405
Superseded by 5413677
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Clamp, Hose
7080696
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Hose, Engine, Lower
5412404
Superseded by 5413676
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Conduit, Flex
5521550
Superseded by 5521793-51
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Clamp, Hose
7080908
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Screw
7517386
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CABLE-TIE,25-76MM,WEATH.-RES.
7080492
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
Bracket, Radiator, Lower, Black
5247047-067
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BUSHING-MOUNT,LOWER RADIATOR
5410584
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Screw
7515179
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
ASM., RADIATOR
1240152
Superseded by 1240520
|
$424.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
ASM., RADIATOR
1240305
Superseded by 1240520
|
$424.99 | ||
|
Unavailable |
|||
|
#19
Asm., Grommet and Insert
5411975
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
Line, Fuel
8450003-1525
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Fitting, 90 Degree
7052065
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
TANK-SURGE
5431673
Superseded by 5436936
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLUG-CAP 9X(GREEN) FLEX TEMP
5433774
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
CAP-OVER FLOW BOTTLE,DRILLED
5430743
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET-OVERFLOW CAP
5810279
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
Hose
5412403
Superseded by 5413675
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Bracket, Radiator, Upper, Black
5246754-067
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Tubing, Convoluted
5521602
|
|||
|
Unavailable |
|||
|
#29
Guard, Hose
5521750
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
