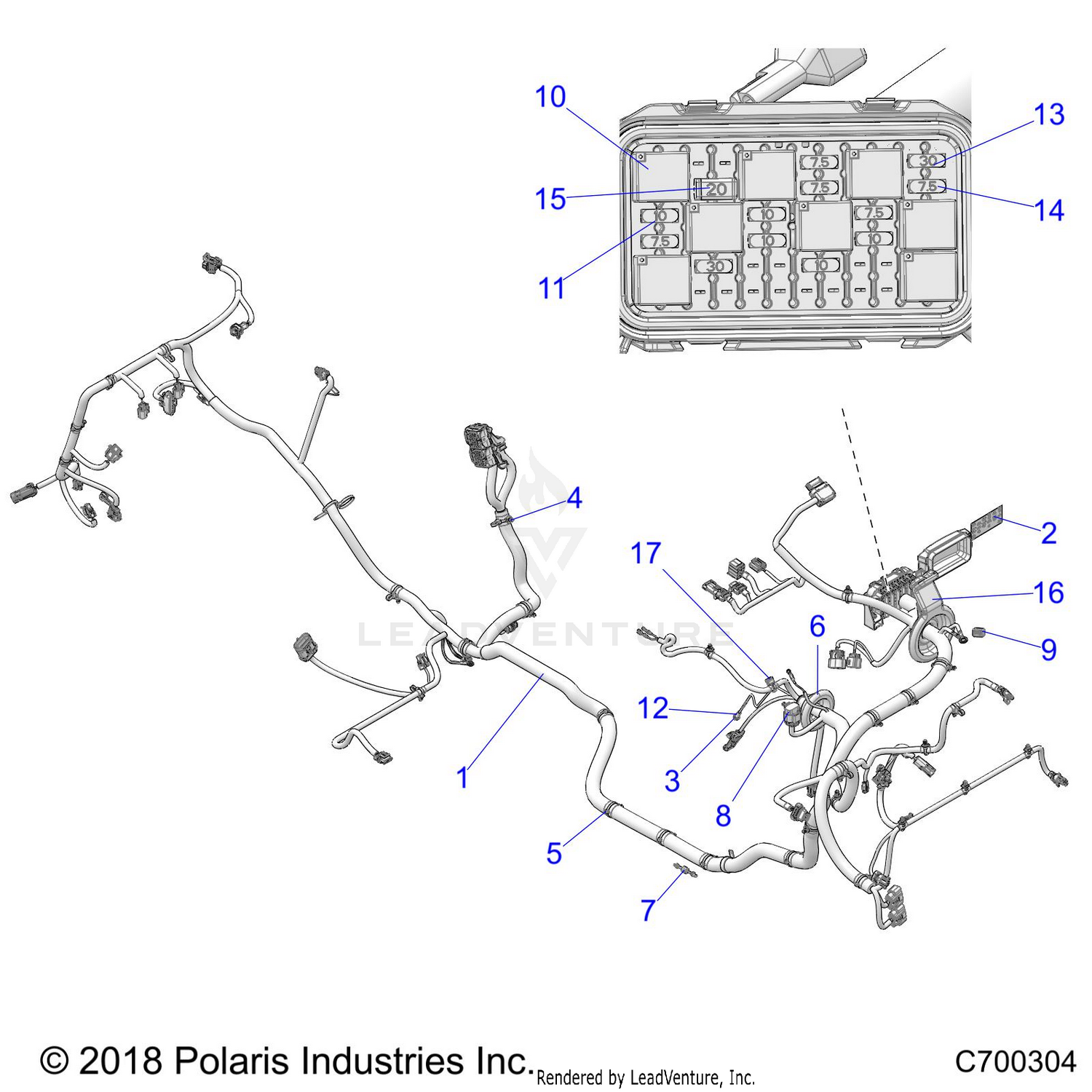

Electrical, Wire Harness - Z22nar99af/bf (c700304) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS-CHASSIS,EPS,RZR,64,CA
2414467
|
$1,664.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
LABEL-FUSE BOX
7188875
|
|||
|
Available to order. Add to View Price |
|||
|
#3
CLIP - ROUTING, DIN BOX
7082020
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CABLE-TIE,DIA6-38MM,DUAL-LOOP
7081916
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP FIR-TREE,DIA6-33MM
7081496
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
GROMMET - 65 MM, BLK
5813954
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
DIODE - 6 AMP, 1/4, 3/16 TERM
2411035
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER-DIAGNOSTIC,W/CLIP
4012170
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
DIODE - 6 AMP, 1/4, 3/16 TERM
2410000
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
RELAY-SPST,12V,20A,EPXY,HFA
4016819
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
FUSE-IGNITION,10 AMP
2434016
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
LED - PANEL MNT, 12V, BLUE
2413217
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
FUSE-MAIN,30 AMP
2434015
|
$9.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
FUSE - 7.5, MINI BLADE (BROWN)
4011068
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BREAKER-CIRCUIT,20 AMP
4011372
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROMMET - DASH FUSE CTR, RZR
5416469
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP-EDGE,HARNESS
7081890
|
$12.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
