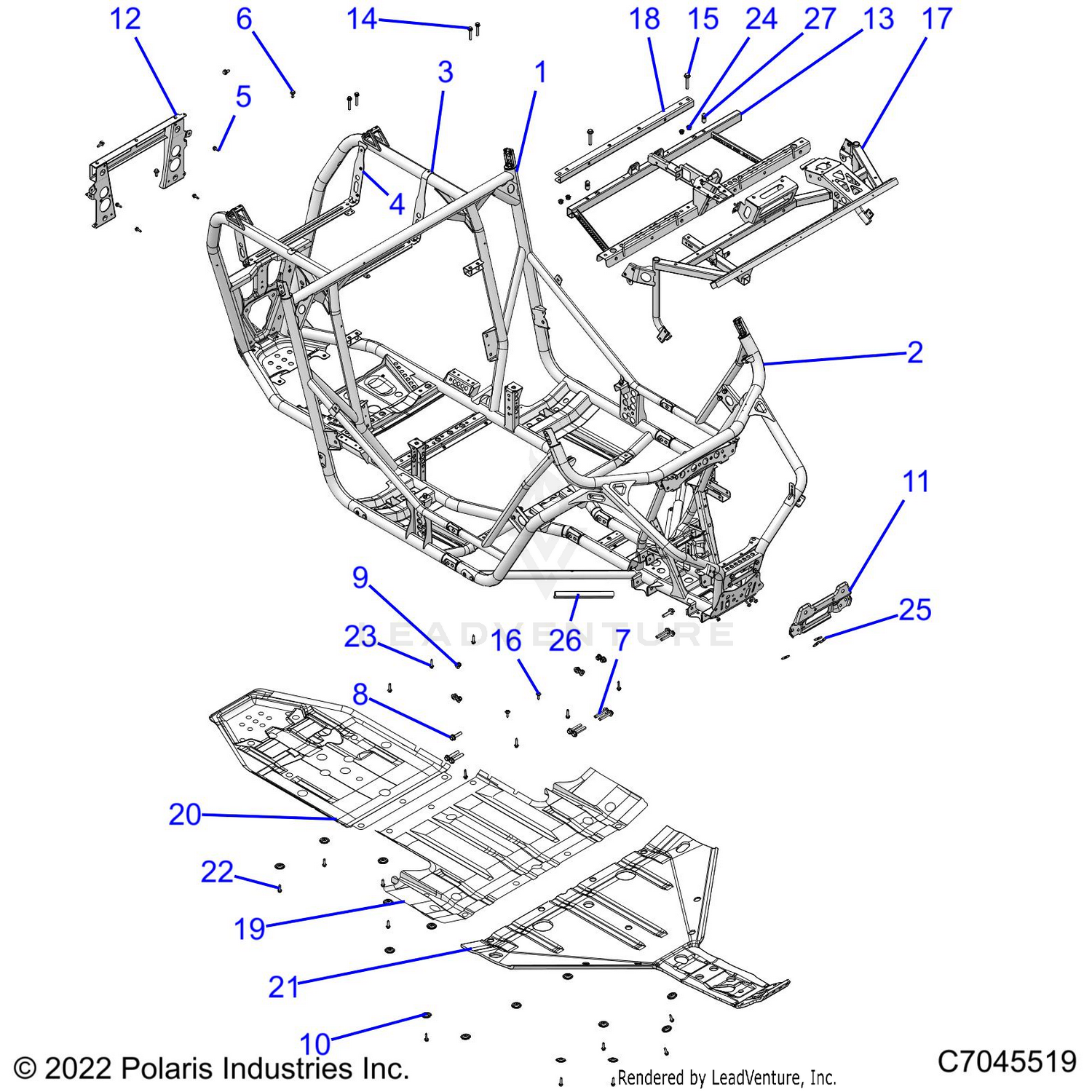

Chassis, Main Frame And Skid Plates - Z22nar99af/bf (c700273) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WELD-MAIN FRAME,BLK
1024526-458
|
$2,869.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WELD-MAINFRAME,FRT,SWAY,BLK
1024369-458
|
$2,884.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, BOX STRAP, BLACK
5260947-329
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRKT-BOX SUPPORT REAR,ECOAT
5264553-329
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCR-HXFL-M10X1.25X55 10.9 ZOD
7519285
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCR-HXFL-M10X1.25X40 8.8 ZOD
7519332
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
WASHER-SKID PLATE
7556065
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRKT-SUSP MNT,FRT,M.BLK
5259449-458
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SUPPORT, REAR, MATTE BLACK
1019529-458
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WELD-SEAT BASE,BLK
1022443-329
|
$374.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCR-SH-M8X1.25X30 8.8 ZPC
7516732
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
SCR-HXFL-M10X1.5X55 8.8 ZY3
7518474
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCR-TXTH-M6X1.0X25 ZFB
7519650
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WELD-DASH,TURBO,S,ECOAT
1024577-329
|
$404.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRKT-CLOSE OFF SUPPORT,BLK
5260539-329
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SKIDPLATE-HMW,MID,RZN
5450926
|
$354.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SKIDPLATE-HMW,RR,RZN,R2
5452769
|
$354.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SKIDPLATE-HMW,FRT,BUMPER WRAP
5455926
|
$474.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCR-TFHFL-M6X1.0X25,ZOD
7519342
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT-HXFL-M6X1.0X30 RIE TAPR
7519344
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER-.270X1.25X.060,FL-Y
7558221
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BRAKET, SKID PLATE MOUNT, BLACK
5260402-329
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
LATCH, PLUNGER, SEAT
5632848
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
