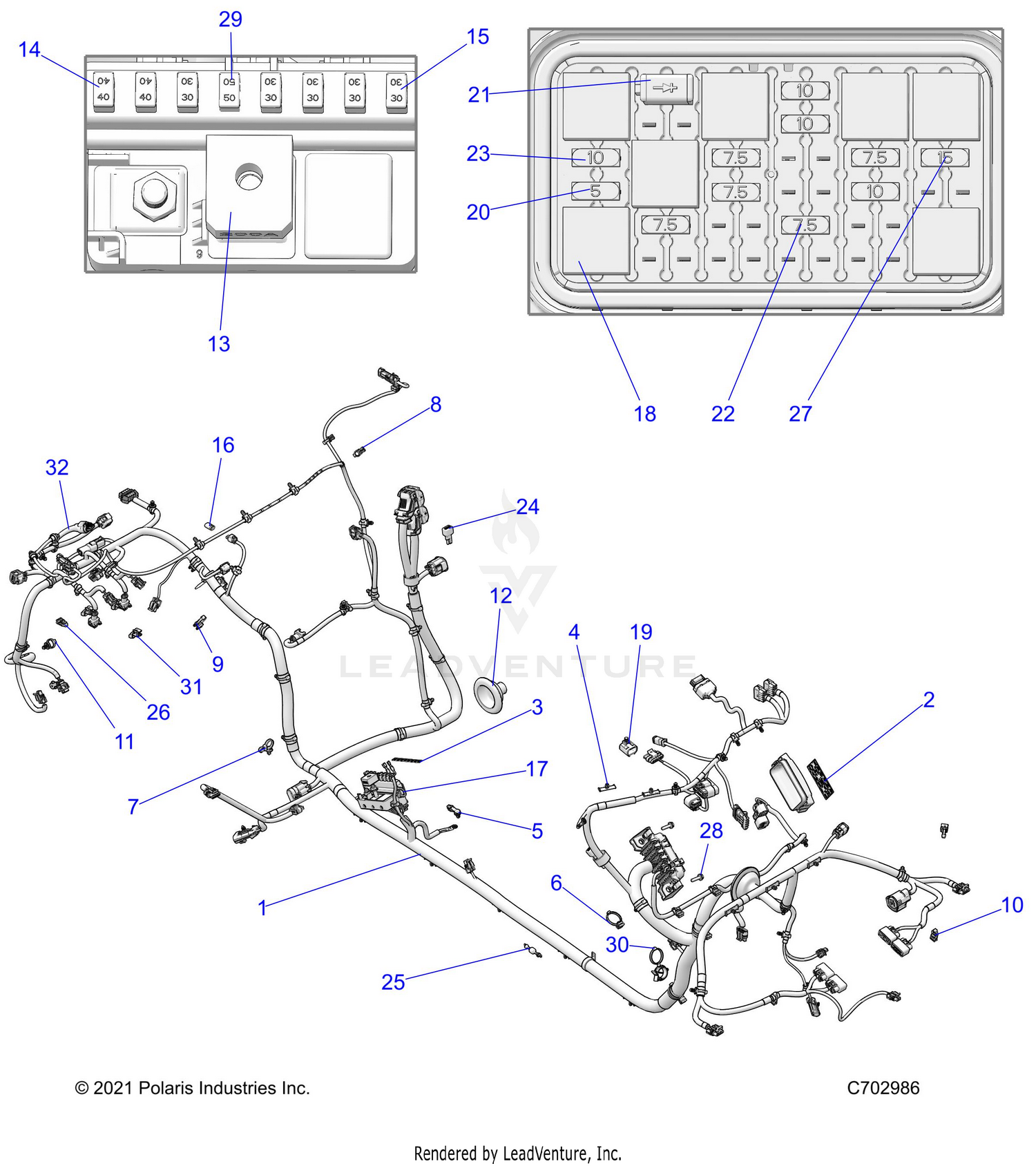

Electrical, Wire Harness, Chassis - Z22gae92aj/bj/gak92ap/bp/gav92ap/bp (c702986) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARN-CHASSIS,RZR,T,96X74
2415657
|
$3,014.99 | ||
|
Unavailable |
|||
|
#2
LABEL-FUSE BOX
7194198
|
|||
|
Unavailable |
|||
|
#3
LABEL-PDM,RZR
7194199
|
|||
|
Unavailable |
|||
|
#4
CLIP-XMAS,6.35MM HOLE,TAPE-ON
7082411
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP-FIR TREE,12.5MM OFF,90DEG
7082406
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP-EDGE,3-6MM THICKNESS
7082399
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CABLE-TIE,DIA6-38MM,DUAL-LOOP
7081916
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP-EDGE,HARNESS
7081890
|
$12.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CLIP-EDGE,DIA5-50MM,OUT-SER
7081824
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP-EDGE,1-3MM,6-45MM,SERT.
7081808
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP FIR-TREE,DIA6-33MM
7081496
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GROMMET - 65 MM, BLK
5813954
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
FUSE-ZCASE, 200A
4018415-200
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
FUSE-MCASE,40A
4018414-40
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
FUSE-MCASE,SLOTTED,30A
4018414-30
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP EVAP CONNECTOR
4018066
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
FUSE-PDM
4017598
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
RELAY-SPST,12V,20A,EPXY,HFA
4016819
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER-DIAGNOSTIC,W/CLIP
4012170
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
FUSE-5A,MINI BLADE
4011652
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
DIODE-6AMP
4011474
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
FUSE - 7.5, MINI BLADE (BROWN)
4011068
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
FUSE-IGNITION,10 AMP
2434016
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
RESISTOR - EVAP PULLUP - 1 KOHM
2414716
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
DIODE - 6 AMP, 1/4, 3/16 TERM
2411035
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP-EDGE,1-3MM THICKNESS
7082428
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
FUSE-15AMP,MINI BLADE
4010859
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCR-HXFL-M6X1.0X25 8.8 RIE
7518533
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
FUSE-MCASE,50A
4018414-50
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLIP, OMEGA, CABLE
7082343
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
STRAP-CABLE TIEW/EDGECLIP3-6MM
7082073
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
HARN-TMAP,505MM
2416468
|
$54.99 | ||
|
Unavailable |
|||
