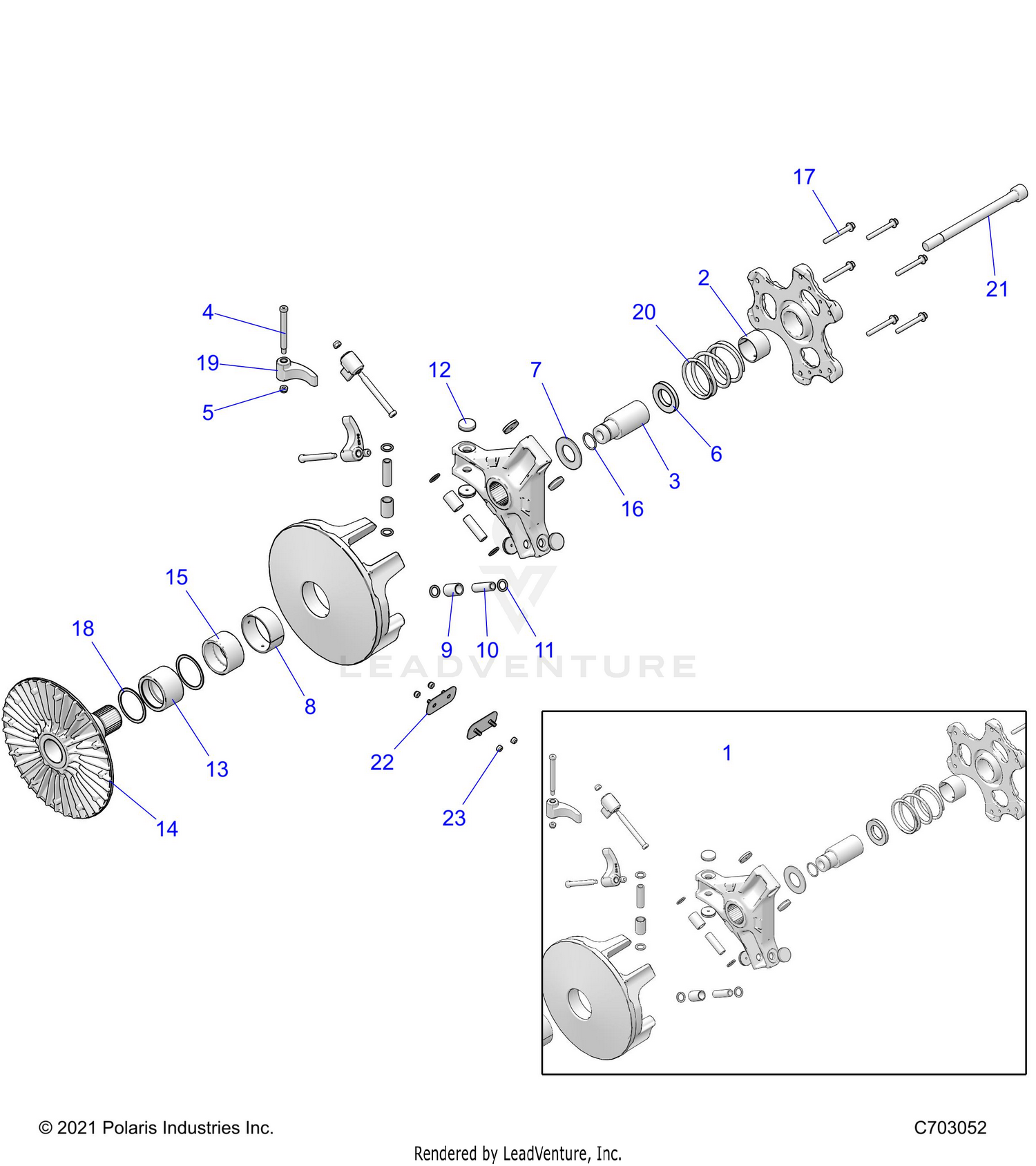

Drive Train, Primary Clutch - Z22gae92aj/bj/gak92ap/bp/gav92ap/bp (c703052) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-DRIVE CLUTCH,BASIC
1327318
|
$804.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
ASM-DRIVE CLUTCH,BASIC
1327287
|
$804.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSHING-MU,35X39X25
3515181
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
POST-CLUTCH,OUTER
5142275
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT-SHOULDER,8X65,10-24
7527984
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT-10-24-FLEX LOC-Z
7541906
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
WSHR-SPR,26.5X45.7X6.86,P&O
7557140
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WSHR-26.5X49.0X2.38 P&O
7557192
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSHING-MU,55X60X25
3515182
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
ASM-SPIDER ROLLR,12X17X25,DP11
1323587
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN-SPIDER,8X12X40
5142278
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER-12X17X1.4,SP-21
5455244
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BUTTON-CLUTCH,24X5.25,SCP
5456312
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING-NEEDLE,45X55X35,FKM
3515111
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
ASM-SHEAVE,STAT,A369,HD,GDT
5144589
|
$114.99 | ||
|
Unavailable |
|||
|
#14
ASM-SHEAVE,STAT
5144411
|
$119.99 | ||
|
Unavailable |
|||
|
#15
SPACER-CLUTCH
5142274
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING-020 0.875X0.0625
5416424
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCR-M6X1.0X50.0 HX/FL-Y/D
7517932
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WSHR-45.5X54X0.8,SP-21
7557138
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
ASM-WEIGHT,SHIFT,34-113,30MM
1323832
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING-CLUTCH,80-120
7045112
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCR-HXFL,M14X1.5X180 12.9 SPC
7520950
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
ASM-CLUTCH WEAR
1327285
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT-M5X.8,HX NYL-Y
7546601
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
