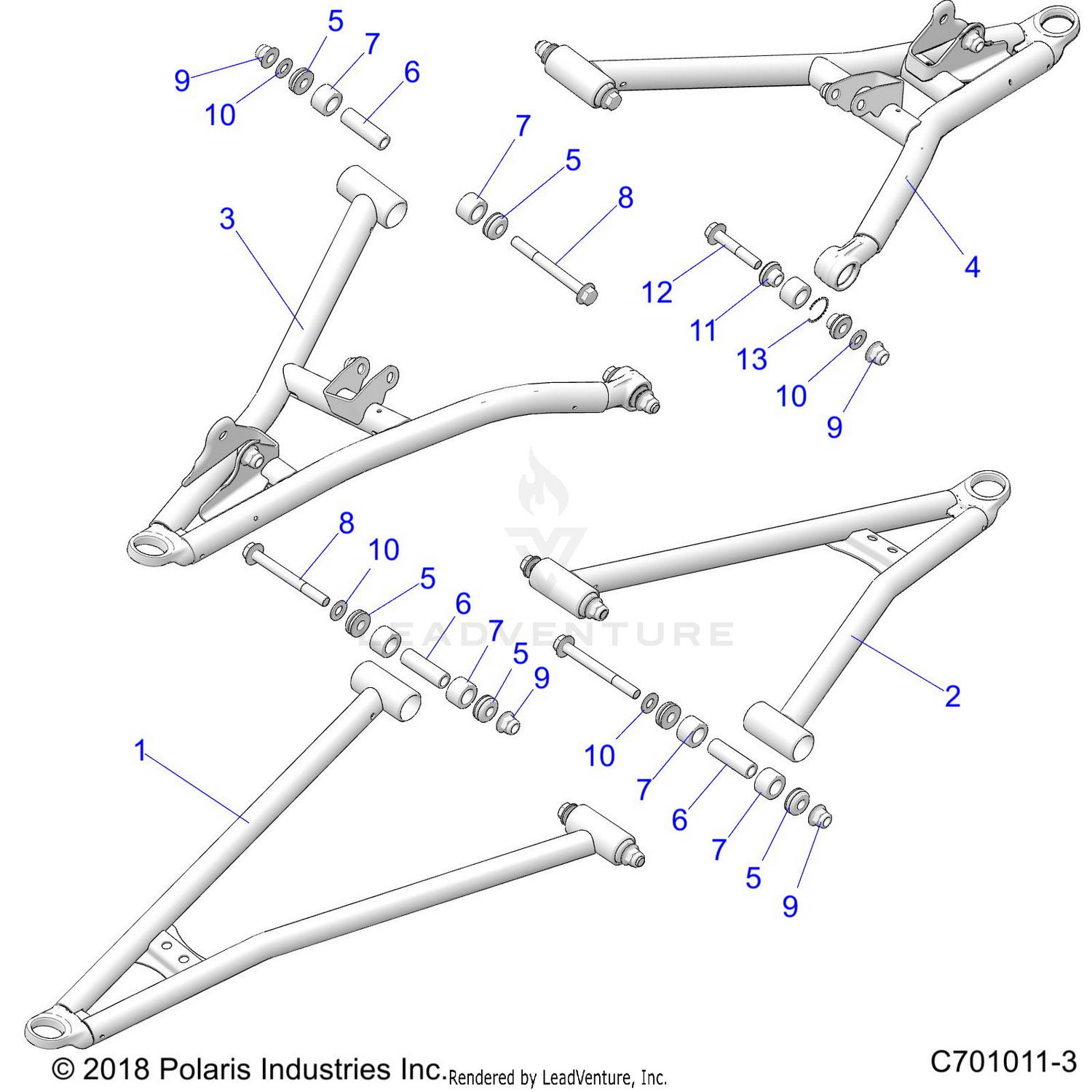

Suspension, Front Control Arms - Z22asa87a2 (c701011-3) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WELD-CTRL ARM,LWR,FRT,LH,60,BL
1021416-458
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WELD-CTRL ARM,LWR,FRT,RH,60,BL
1021417-458
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WELD-CTRL ARM,UPR,FRT,LH,60,BK
1023223-458
|
$244.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WELD-CTRL ARM,UPR,FRT,RH,60,BK
1023224-458
|
$244.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
ASM-PIVOT CAP, SEALED, M10
1543611
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT-PIVOT,SHORT,M10
5139966
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSHING-STANDARD, SUSP, M10
5452233
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SCR-HXFL-M10X1.25X95 10.9 ZOD
7519043
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
WASHER-3/8 FW SAE STL THRU-HRD
7556153
|
$2.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
ASM-PIVOT CAP,SEALED,SLIM,M10
1543735
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCR-HXFL-M10X1.25X55 10.9 ZOD
7519285
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
28MM SPIRAL RING,STEEL
7710845
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
