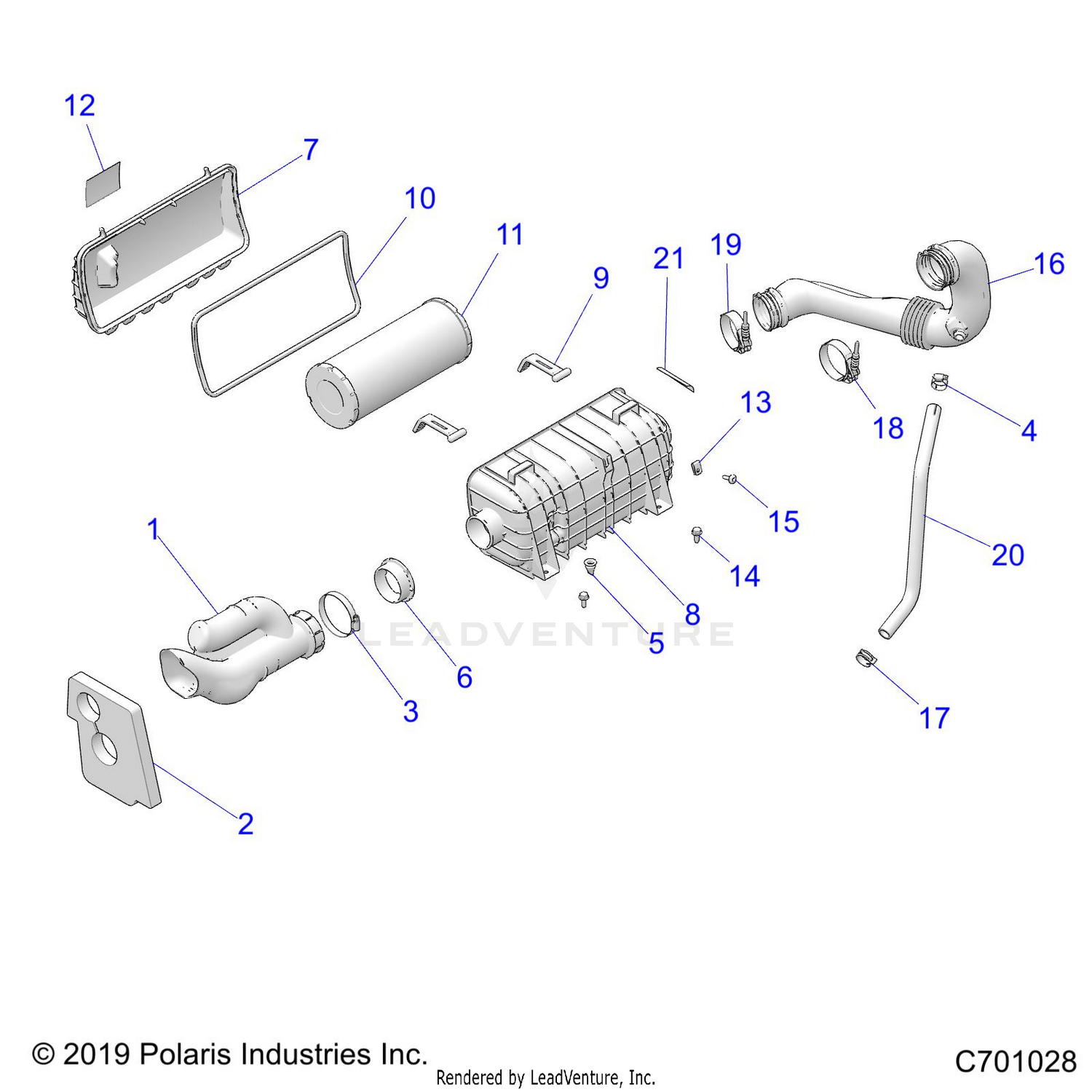

Engine, Air Intake System - Z23asa87a2(c701028) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DUCT, INTAKE, AIRBOX
5450781
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PANEL, INTAKE SEPARATOR
5814168
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP, HOSE, 3.25 SS
7080439
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP, HOSE WORM GEAR 1.25
7080614
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG-DRAIN
5414472
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL, INTAKE, AIRBOX
5415155
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, AIRBOX
5451097
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
AIRBOX
5451098
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
STRAP, AIRBOX
5451099
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL-AIRBOX
5815300
|
$34.99 | ||
|
Unavailable |
|||
|
#11
FILTER-AIR
7082115
|
$44.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
DECAL-CAUT.AIR BOX
7182652
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT-M6-1.0, U-TYPE (2.5-3.8)
7547674
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCR-TXTH-M6X1.0X25 ZFB
7519650
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
ASM., INTAKE DUCT
1240871
|
$234.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRINGBAND-CLAMP 27/12,GREEN
7080841
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP, HOSE, T-BOLT, 72 DIA
7081978
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP, HOSE, T-BOLT, 66.4 DIA
7081979
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE, VENT
5414896
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
DECAL, INTAKE DUCT
7182087
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
