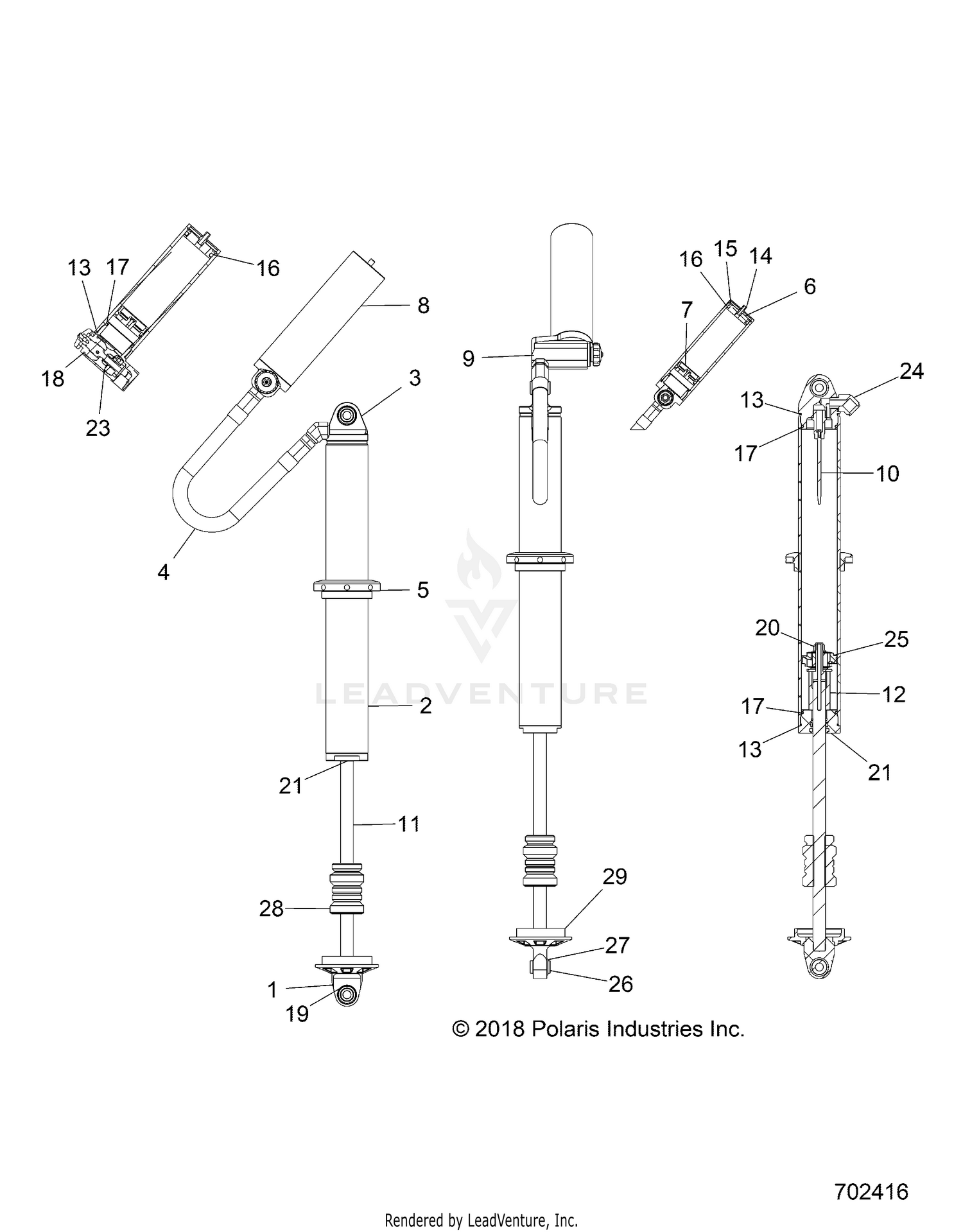

Suspension, Rear Shock Internals - Z22s1e99al/bl (702416) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
SHOCK-REAR,REMOTE,LH
7044780
|
$1,064.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SHOCK-REAR,REMOTE,RH
7044877
|
$1,064.99 | ||
|
Available to order. Add to View Price |
|||
|
#
DECAL-RESERVOIR,RR,LH
7189459
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#
DECAL-RESERVOIR,RR,RH
7189460
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
42629 HEIM SHAFTLOOP (CLEAR)
1800555
|
$294.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
2.5IN AL CO BODY 18.55L (Clear)
1800718
|
$529.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BODY LOOP, 2.5" .562 NO SLOT, 3.227L (CLR)
1800605
|
$319.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Hose 35.5in long 901mm
-------
|
|||
|
Unavailable |
|||
|
#5
2.5IN SPRING NUT (HARD BLACK)
1800715
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
2.5in END CAP SV (Clear)
1800552
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
RES, PISTON 2.5IN ASM
1800752
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
2.5in 8.5L PB RES CAN
1800644
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
2.5IN REMOTE ADJ RES MOUNT (CLEAR )
1800608
|
$294.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
ASM. NEEDLE BOLT
-------
|
|||
|
Unavailable |
|||
|
#11
3/4in SS CHROME NEEDLE SHAFT 18.295L
1800620
|
$294.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER 2.287L
1800610
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING 2-033
1800613
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
VALVE, SCHRAEDER
1800021
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
2.125 ID BORE SNAP RING
1800507
|
$13.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
O-RING 2-327
1800508
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING 2-225
1800500
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING 2-122
1800503
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
ASM. SS RETENTION NUT (GOLD)
1800857
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
RING- RETAIN (SNAP)
1800482
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT 7/16 NYLOCK (1425112)
1800638
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
ASM. SEAL HEAD, 2.5 (ANODIZE CLEAR)
1800549
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
ASM. CHECK VALVE - 2SEAT
-------
|
|||
|
Unavailable |
|||
|
#24
FITTING, 45 DEG 3/8
-------
|
|||
|
Unavailable |
|||
|
#25
Piston Asm
-------
|
|||
|
Unavailable |
|||
|
#26
BEARING HCOM9T-12MM
1800880
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING 2-312 1000312
1800810
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
2.50 BUMP STOP
-------
|
|||
|
Unavailable |
|||
|
#29
RETAINER-SPRING,2.5"
1501211
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#
.600 BUMP STOP
-------
|
|||
|
Unavailable |
|||
