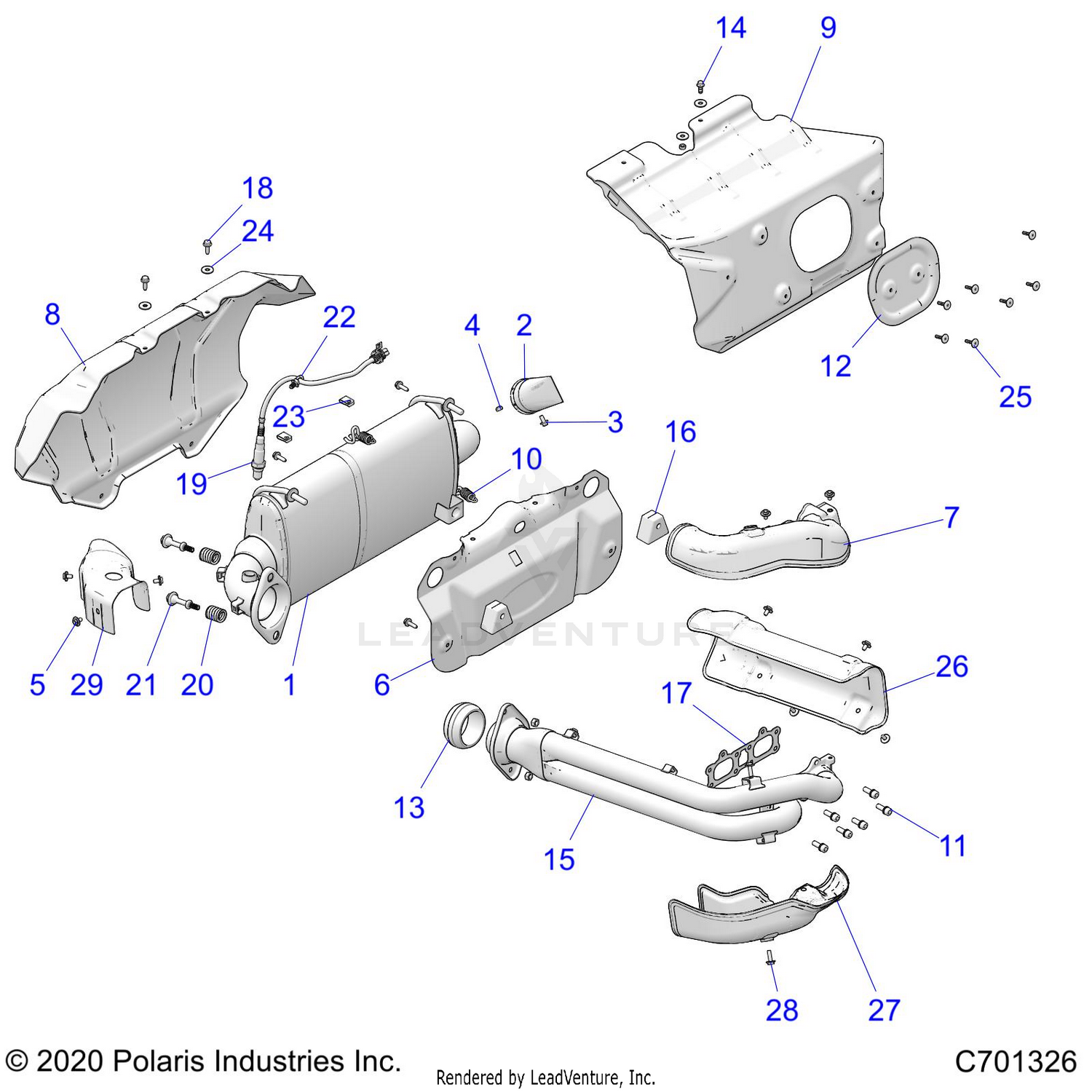

Engine, Exhaust System - Z22s1e99al/bl (c701326) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-SILENCER
1263066
|
$764.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WELD-SPARK ARRESTOR
1262390
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW-HXFL-M6X1.0X12 10.9 ZPC
7517257
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT-HEX-M6X1.0 8 SPC
7547120
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCR-HHSEMS-M6X1.0X10 A286,LOCK
7520291
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIELD-REAR,STAINLESS
5266579
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHIELD-HEAT,HEADPIPE,FRONT UPR
5266219
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIELD-REAR BUMPER
5814571
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIELD-REAR CLOSEOFF
5814580
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING-EXHAUST S.S. SHOTPEENED
7043727
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCR-HXFL-M5X0.8X12 4.8 ZPC NYL
7518984
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIELD-ACCESS PANEL
5814629
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, DOUBLE, SPHERICAL
3610236
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCR-M6X1.0X16.0,HX/FL-Y/D
7516820
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
ASM-HEADPIPE
1263285
|
$479.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
MOUNT, ISOLATOR
5450115
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET-EXHAUST SEAL
3610184
|
$59.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SENSOR-LAMBDA,LSF 4.2
4011853
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING, SPHERICAL, EXHAUST
7044274
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
STUD-SPHERICAL,EXHAUST
7520079
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP FIR-TREE,DIA6-33MM
7081496
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
NUT-M6-1.0, U-TYPE (2.5-3.8)
7547674
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
WASHER-.28 X .81 X .06, ST-M
7555935
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
RVT-3/16X.040-.354,AL BLK
7662345
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SHIELD-HEAT,HEADPIPE,INNER
5264090
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
K-SHIELD-HEAT,HEADPIPE,FRT,LWR
2212145
|
$49.99 | ||
|
Unavailable |
|||
|
#28
SCR-HHSEMS-M6X1.0X19 A286,LOCK
7520995
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SHIELD-SILENCER INLET
5264296
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
