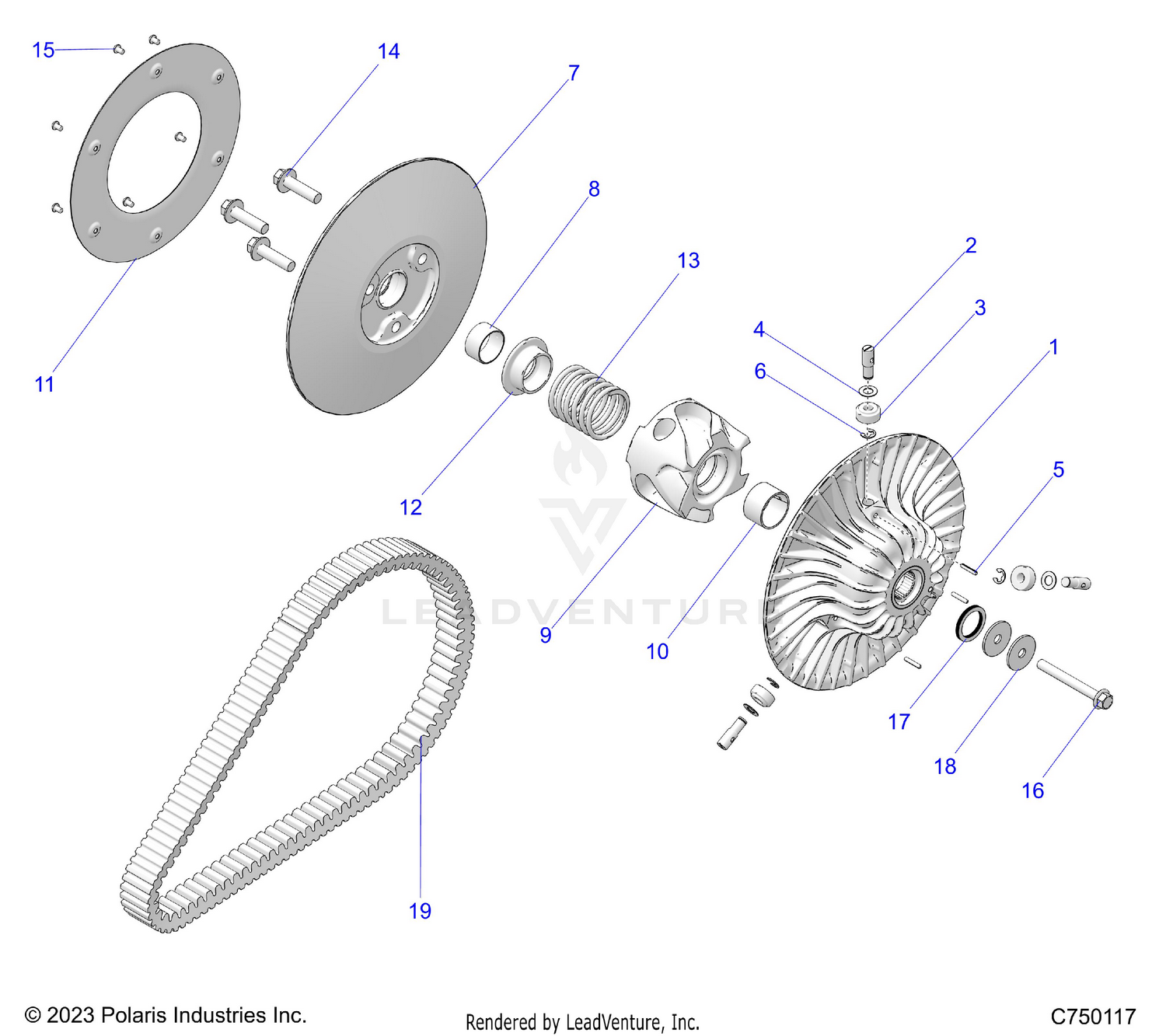

Drive Train, Secondary Clutch/belt - Z25r4d2kak/bk/aj/bj/am/bm (c750117) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-STATIONARY SHEAVE,DRVN G4
1323568
|
$324.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN-DRIVEN,ROLLER,12MM
5142341
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ROLLER-10X25.4X12,PA14203
5455322
|
$44.99 | ||
|
Unavailable |
|||
|
#4
WASHER-0.75X.400X.03,FL-Y
7556580
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING-PIN-4X22,JIS B 2808
7662377
|
$2.99 | ||
|
Unavailable |
|||
|
#6
E-CLIP, M8
7710733
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
ASM-MOVABLE SHEAVE,DRIVEN,G4
1323570
|
$394.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
ASM-MOVEABLE SHEAVE,G4
1323600
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING-DU,35X20
3514903
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
ASM-HELIX,MACH,G4
1327172
|
$239.99 | ||
|
Unavailable |
|||
|
#10
BUSHING-MOVEABLE, 1.0 DU
3576511
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE-WINDAGE,DRIVEN,MOVABLE
5266654
|
$34.99 | ||
|
Unavailable |
|||
|
#12
CUP-DRIVEN SPRING,G4
5634553
|
$9.99 | ||
|
Unavailable |
|||
|
#13
SPRING-DRIVEN,180-240
7045119
|
$104.99 | ||
|
Unavailable |
|||
|
#14
SCR-M12X1.75X45MM,HXHDFLG
7519768
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCR-TXBH-M5X0.8X8 SPC TRILOBE
7521023
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCR-HXFL-M10X1.5X90 10.9 ZOD
7519790
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIM-RING,30.5X40.0X0.5,P&O
7557161
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WSHR-FLAT 10.5X40X2.5,HARD,P&O
7557231
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BELT-DRIVE,12.0,CD
3211226
|
$199.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
