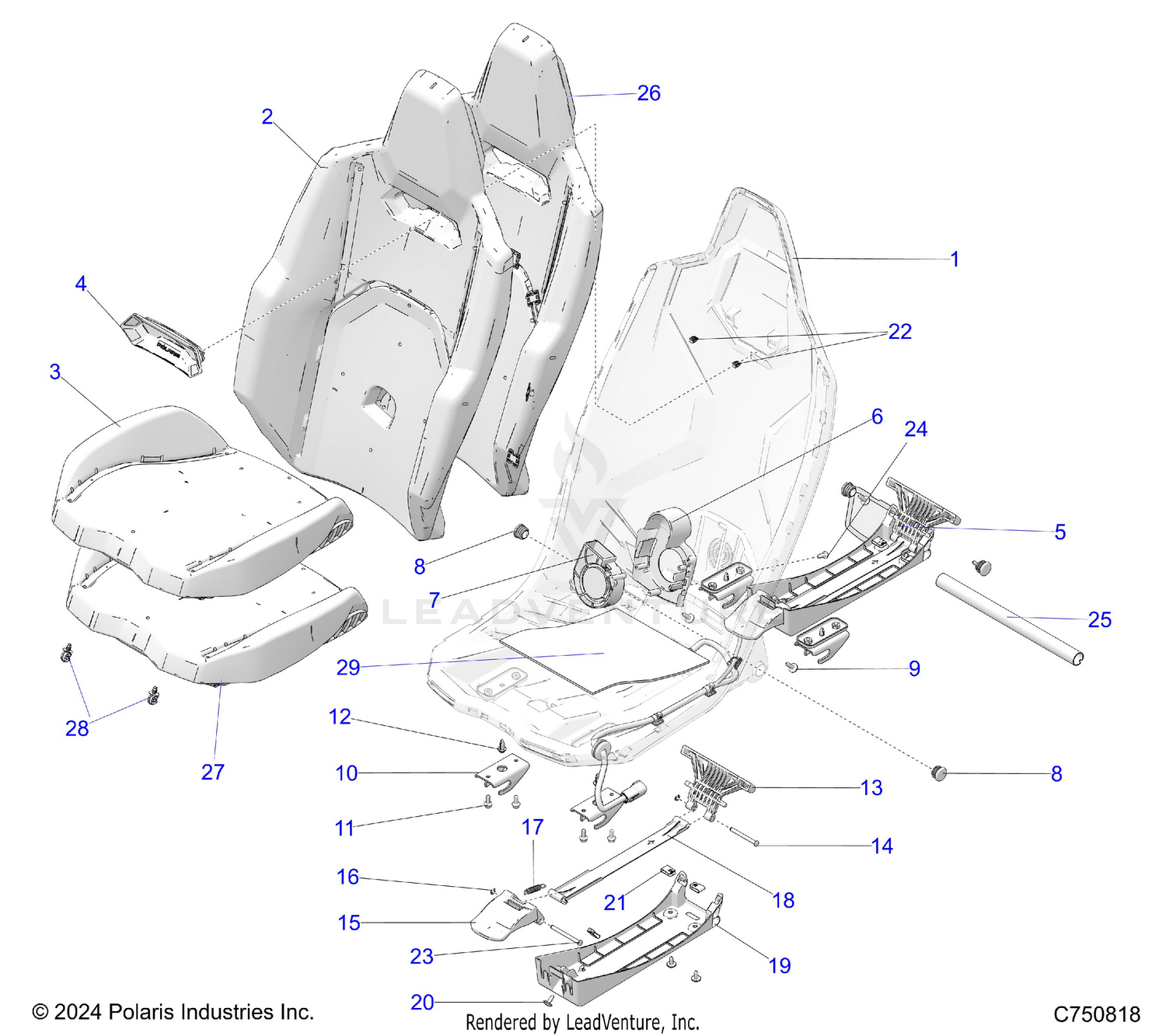

Body, Seat Asm., Front - Z25r4d2kak/bk/aj/bj/am/bm (c750818) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT-SHELL,ROUTERED
5465064
|
$214.99 | ||
|
Unavailable |
|||
|
#2
ASM-COVER-SEAT BACK,HVENT,TTM
2693210
|
|||
|
Unavailable |
|||
|
#3
ASM-COVER-SEAT BTM,HVENT,TTM
2693402
|
$134.99 | ||
|
Unavailable |
|||
|
#4
BEZEL-SEAT COVER,BLACK
5465755-070
|
$29.99 | ||
|
Unavailable |
|||
|
#5
SCREEN-SEAT,H/V
5458643
|
$11.99 | ||
|
Unavailable |
|||
|
#6
MOUNT-FAN,SEAT,BLK
5457836-070
|
$29.99 | ||
|
Unavailable |
|||
|
#7
FAN-SEAT
2415452
|
$159.99 | ||
|
Unavailable |
|||
|
#8
PLUG-END CAP,.88 DIA,RIBBED
5432831
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCR-TXTH-M6X1.0X25 ZFB
7519650
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
HOOK-SEAT BASE,FRONT,BLK
5466137-070
|
$9.99 | ||
|
Unavailable |
|||
|
#11
SCR-HXFL-M6X1.0X16 10.9 ZFB
7521331-16
|
$2.99 | ||
|
Unavailable |
|||
|
#12
RIVET-TUFLOK,.315-.325X.787
7661855
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
RELEASE-SEAT
5459947
|
$34.99 | ||
|
Unavailable |
|||
|
#14
PIN-RELEASE,SEAT
7662361
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
LEVER-RELEASE,SEAT
5459945
|
$29.99 | ||
|
Unavailable |
|||
|
#16
E-CLIP-M5,SS,0600101
7710568
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING-RELEASE,SEAT
7045065
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
LINK-RELEASE,SEAT
5459946
|
$54.99 | ||
|
Unavailable |
|||
|
#19
COVER-RELEASE,SEAT
5454899
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCR-M6X1X16 TR/TX-M
7518936
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT-M6-1.0, U-TYPE (2.5-3.8)
7547674
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
CLIP-TRIM, PLASTIC, WHITE
5456313
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN-LINK,RELEASE,SEAT
7662362
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCR-TX TRUSS-#14X3/4, HI/LO ZBK
7519045
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
TUBE-SEAT SHELL
5346358
|
$34.99 | ||
|
Unavailable |
|||
|
#26
ASM-SEAT,BUN,BACK
2639660
|
$89.99 | ||
|
Unavailable |
|||
|
#26
BUN-SEAT BACK,VENT
5815569
|
$84.99 | ||
|
Unavailable |
|||
|
#27
ASM-SEAT,BUN,BOTTOM
2639641
|
$49.99 | ||
|
Unavailable |
|||
|
#27
BUN-SEAT,BOTTOM
5815568
|
$119.99 | ||
|
Unavailable |
|||
|
#28
CLIP-C,FIR
TREE,6-7.6MM,06.6MM
7083115
|
$1.99 | ||
|
Unavailable |
|||
|
#29
MAT-HEATER,SEAT,LWR
4082080
|
$429.99 | ||
|
Unavailable |
|||
