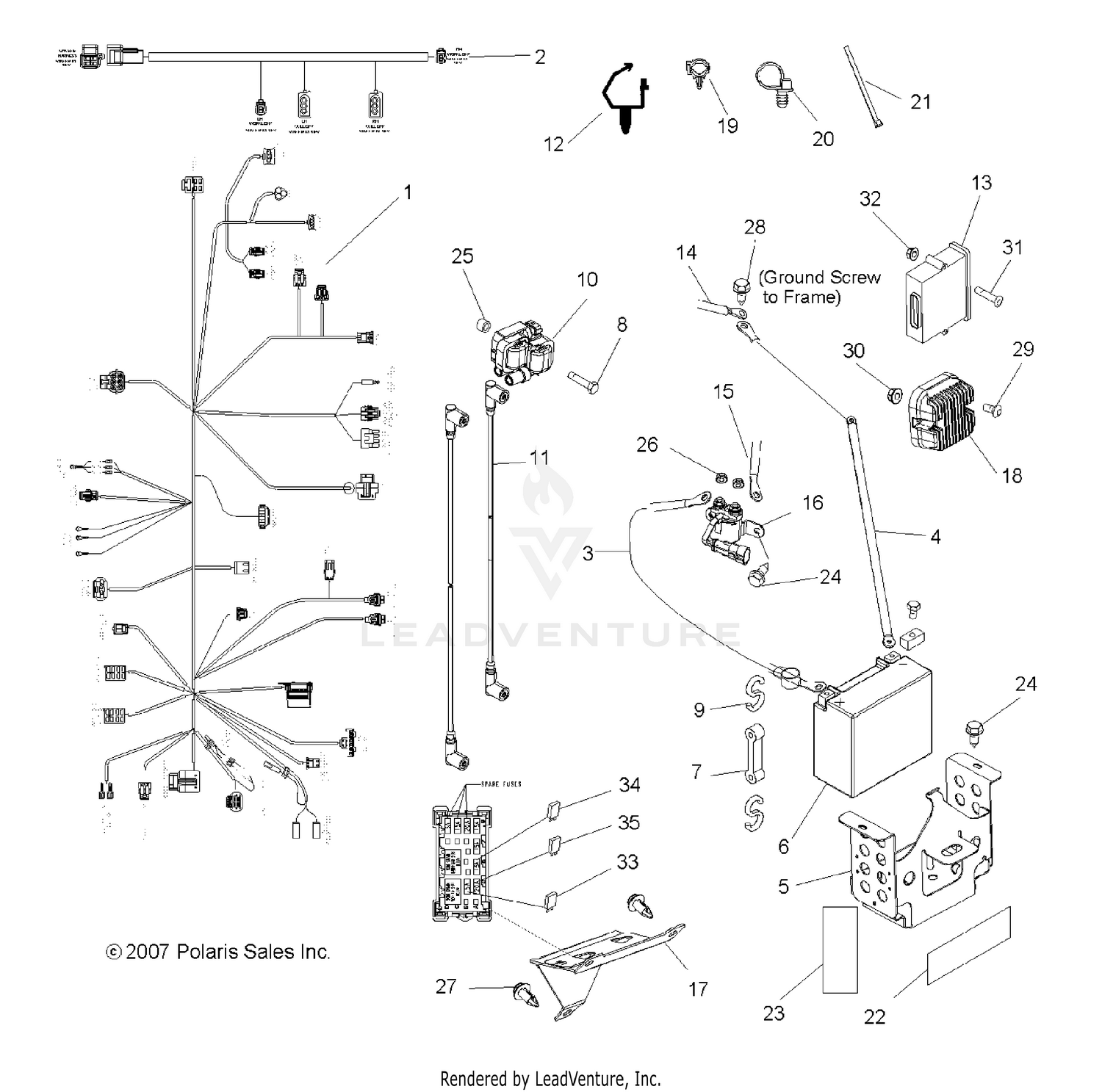

Electrical (built 8/13/07 And Before) - R08vh76ad/ag (49rgrelect08vista) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Harness, Chassis
2410682
|
$836.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Kit, Harness, Resistor Module
2204890
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
BREAKER-CIRCUIT,20 AMP,SEALED
2410881
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
COVER-DIAGNOSTIC,W/CLIP
4012170
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1
Relay, SPDT, Sealed
4011284
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Relay, Sealed, SPNO, 50 AMP
4012150
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Decal, Fuse/Relay Block
7174705
|
|||
|
Unavailable |
|||
|
#1
KIT-HARNESS,T-BAP,T-MAP
2875542
Superseded by 2878494
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Kit, Harness, Engine Temp
2875543
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Kit, Harness, TPS
2203801
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Kit, Harness, CPS
2878497
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Kit, Fusible Link, .8 mm
2202607
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Kit, Fusible Link, 1.0 mm
2202670
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Harness, Box
2410848
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CABLE-BATT TO SOLENOID/TERMINA
4011497
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Cable, Chassis, Ground
4011611
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Box, Battery, Matte' Black
1015946-458
|
$257.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Battery
4011496
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Strap, Battery Hold Down
5412499
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Screw
7518052
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Hook, Battery Strap
7010032
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Kit, Ignition Coil
4010425
Superseded by 2876049
|
$299.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Wire, Ignition, Black
4011059
Superseded by 4010909
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Clip, Routing
7670109
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
ECU
4011832
Superseded by 4011599
|
$644.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Cable, Ground
4011499
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Cable, Solenoid to Starter
4011498
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Solenoid, Starter
4012001
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Mount, Fusebox
1016053
|
$19.59 | ||
|
Available to order. Add to View Price |
|||
|
#18
Regulator
4011925
Superseded by 4012384
|
$354.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Clip, Rosebud
4020149
|
$7.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
CABLE-TIE,DIA10-50MM,FIR-TREE
7081334
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PAD-BATTERY
5810290
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
FOAM-SEAL,REAR COOLER
5810947
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Screw
7517386
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
Spacer, Coil
5133658
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Nut, Flanged
7547270
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Rivet
7661855
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
Screw
7515179
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Screw
7518196
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
Nut, Nylon, Flanged
7518287
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Screw
7518157
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT-M5X.8,HX NYL-Y
7546601
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
FUSE-5A,MINI BLADE
4011652
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
FUSE-15AMP,MINI BLADE
4010859
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
FUSE, 20 MINI BLADE 58V
2434017
Superseded by 4012811
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
