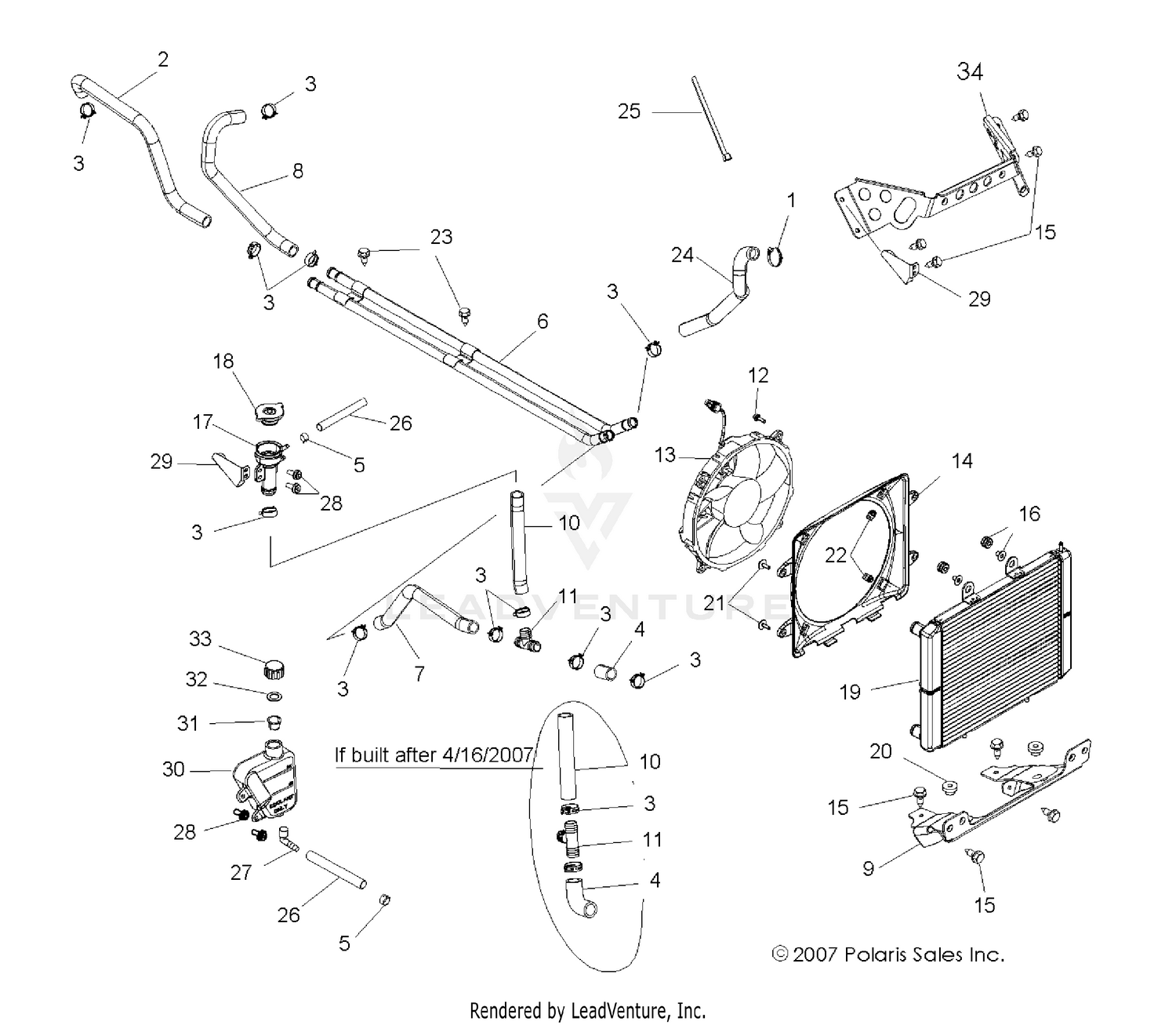

Cooling System - R08vh76ad/ag (49rgrcool08vista) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Clamp, Hose
7081174
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Hose, Engine Outlet, Rear
5413148
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Clamp, Springband
7080843
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Hose, Radiator, Lower, Short
5413146
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE, RADIATOR, LOWER
5410958
Superseded by 5414202
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP-HOSE, (LARGE GREEN)
7080307
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
Tube, Coolant
1015938
|
|||
|
Available to order. Add to View Price |
|||
|
#7
Hose, Radiator, Lower, Long
5413066
|
$40.19 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE, LOWER, FRONT
5413372
Superseded by 5414204
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Hose, Engine Inlet, rear
5413147
|
|||
|
Available to order. Add to View Price |
|||
|
#9
Bracket, Mount, Radiator, Lower
1015842-458
Superseded by 5253550
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Hose, Filler Neck
5413145
|
$20.59 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE, REMOTE FILL NECK
5413371
Superseded by 5414203
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
T-Connector
7052397
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Screw
7517975
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Asm., Fan
2410413
|
$329.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Shroud, Fan
5434853
Superseded by 5437845
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Screw
7517386
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
Asm., Grommet and Insert
5411975
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
Filler, Remote
5435196
|
$15.39 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP, PRESSURE
1240044
Superseded by 1240508
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Asm., Radiator, Core
1240319
Superseded by 1240444
|
$444.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BUSHING-MOUNT,LOWER RADIATOR
5410584
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Screw
7547220
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
U-Clip
7547197
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#23
Screw
7515179
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE, RADIATOR, UPPER
5413067
Superseded by 5414201
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Line, Fuel
8450003-1525
|
$89.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
Fitting, 90 Degree
7052065
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
Screw
7512084
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
Bracket, Filler Neck
5250993
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
TANK-SURGE
5436936
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
PLUG-CAP 9X(GREEN) FLEX TEMP
5433774
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
GASKET-OVERFLOW CAP
5810279
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
CAP-OVER FLOW BOTTLE,DRILLED
5430743
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
Bracket, Mount, Radiator, Upper, Matte Black
5250497-458
Superseded by 5254710-458
|
$49.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
