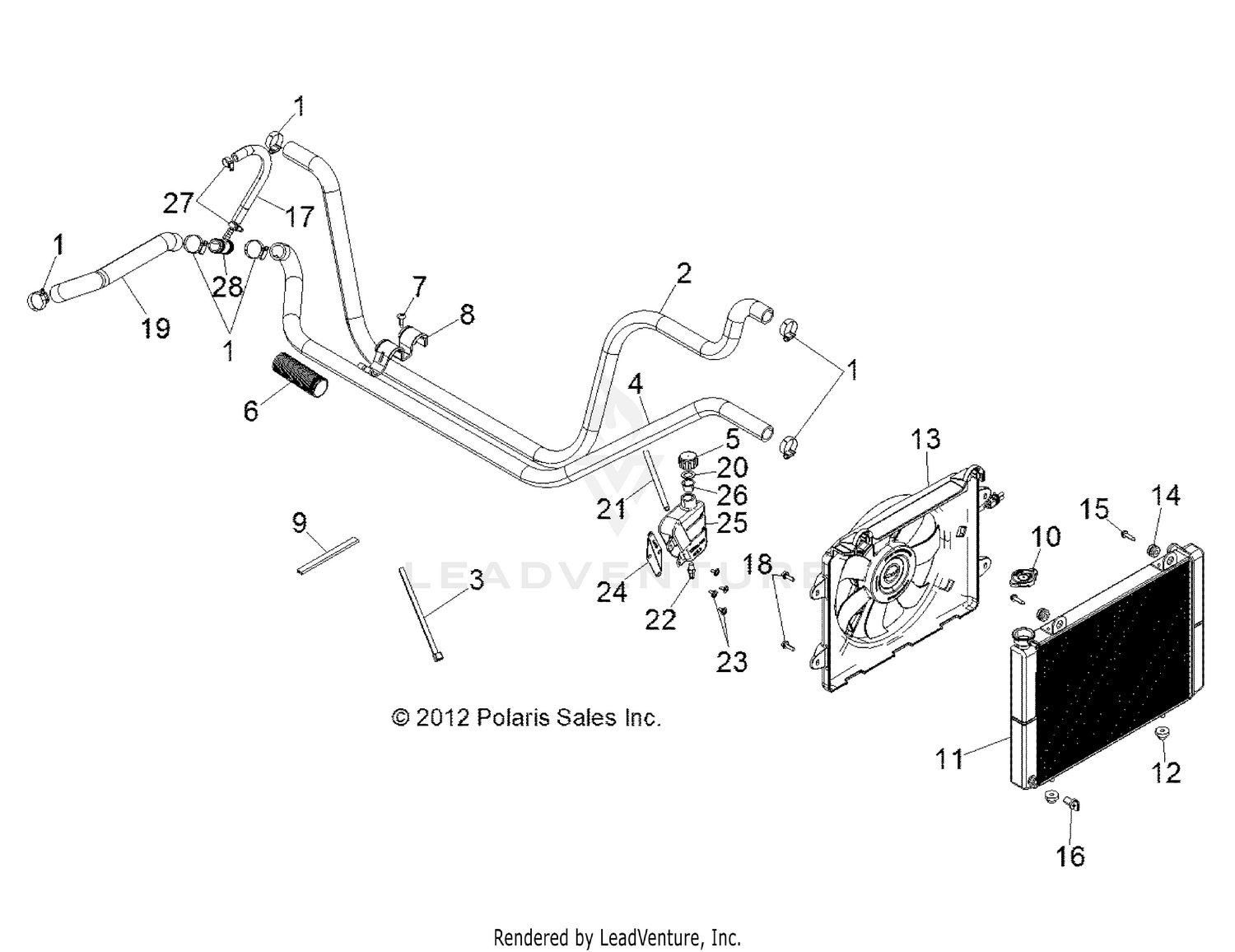

Engine, Cooling System - R14rh76aa/76ac/7eaz (49rgrcool13800mid) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP, HOSE
7081174
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE, ENGINE OUT, RADIATOR IN
5413740
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE, RADIATOR OUT, ENGINE IN
5414493
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP-OVER FLOW BOTTLE,DRILLED
5430743
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CONDUIT,FLEX,1.250ID
5521287-18
Superseded by 5521287-20
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
7517685
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
CLIP, COOLANT, ROUTING
5438331
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Trim, Edge
8360012-10
Superseded by 5521131
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP-PRESSURE
1240300
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
ASM., RADIATOR
1240720
Superseded by 1240721
|
$609.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BUSHING-MOUNT,LOWER RADIATOR
5410584
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
ASM., FAN
2411732
|
$394.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
ASM., GROMMET AND INSERT
5413155
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
7519342
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
VALVE-PLASTIC RAD/COOLER DRAIN
7052410
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE-BYPASS,3/8IN FORMED
5413949
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW
7516822
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
HOSE, BYPASS, FORMED
5414207
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET-OVERFLOW CAP
5810279
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
LINE, FUEL
8450003-1525
|
$89.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
FITTING
7052065
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SCREW
7512084
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BRACKET, SURGE TANK
5254763
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
TANK-SURGE
5436936
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLUG-CAP 9X(GREEN) FLEX TEMP
5433774
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
CLAMP-HOSE,.875-SS
7080474
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
CONNECTOR, TEE
7052494
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
