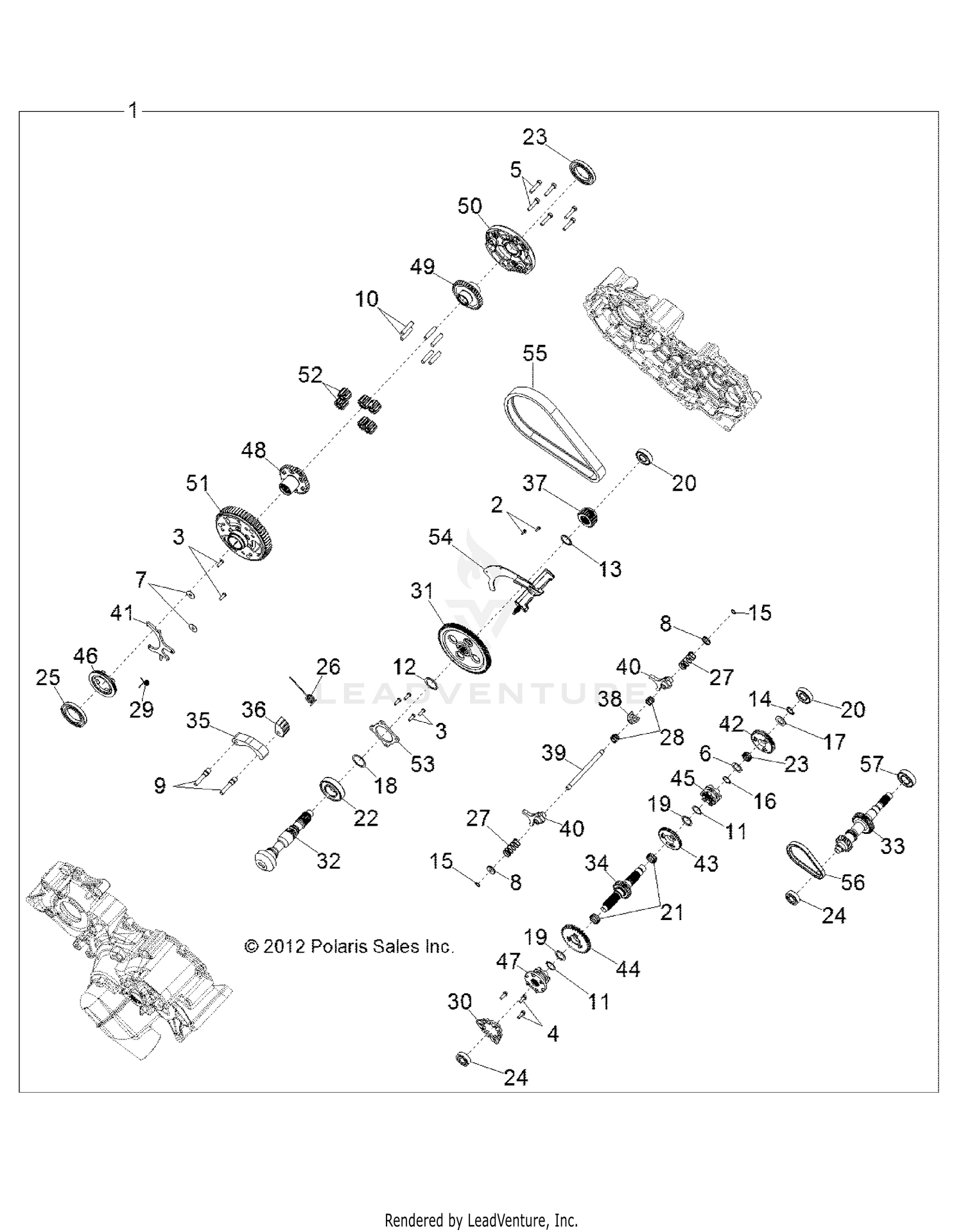

Drive Train, Main Gearcase Internals - R14rh76aa/76ac/7eaz (49rgrtransintl1333071) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-GEARCASE,MAIN
1333071
|
$3,784.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, TAPPING TORX, PH
3233749
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, TORX, PAN HD
3234086
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, TAPPING HEX, WASHER HD
3234247
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, CAP HH
3234267
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
3233855
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, FENDER
3234268
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER-CUP
3234091
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN
3233432
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, DOWEL
3234238
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
RING, RETAINING
3233306
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
RING, RETAINING, SHAFT
3233364
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
RING RTNG
3233699
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
RING, RETAINING BASIC, EXTERNAL, SHAFT
3234067
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
RING,RETAINING BASIC,EXTERNAL 0.428
3234090
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
RING, RETAINING, BASIC EXTERNAL
3234336
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER THRUST
3233176
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SHIM
3234271
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, THRUST
3234248
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING-BALL,6307 C3,35X80X21
3233018
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, NEEDLE
3233103
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING,BALL 6207 C3 35X72X17
3234065
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, NEEDLE, CAGE ASSEMBLY
3233009
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING, BALL
3234274
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING, BALL
3234275
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
TORSION SPRING
3233431
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPRING,COMPRESSION, .92 O.D. X 2.000
3234078
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPRING, COMPRESSION
3234089
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPRING, TORSION, RETURN
3234276
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
PLATE, PARK, 12-FACE, 33 DEG
3234943
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
GEAR OUTPUT, 91T, HCR
3234953
|
$259.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
PINION, 13T, CENTER DRIVE
3234263
|
$544.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
SHAFT, 43T, INPUT HELICAL
3235367
|
$329.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
SHAFT, REVERSE, 26T
3234948
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
SHOE, CHAIN TENSIONER
3233433
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
CAM, CHAIN, TENSIONER
3233434
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
SPROCKET, 19T
3234441
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
COLLAR-SHIFT
3234073
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
RAIL, SHIFT SHAFT
3234079
Superseded by 3235542
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
FORK, SHIFT
3234077
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
FORK, PIVOT SHIFT, REAR DIFF
3234285
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
GEAR, 44T HELICAL
3235368
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
SPROCKET 38T, 6-FACE
3234290
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
GEAR, 33T, 6-FACE
3234291
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
ENGAGEMENT DOG, 6-FACE
3234258
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
DOG, ENGAGEMENT
3234928
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
DOG, L/P, 33 DEGREE
3234944
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
SIDE, GEAR DIS. 36T, SUBASSEMBLY
3234362
|
$374.99 | ||
|
Unavailable |
|||
|
#49
SIDE, GEAR 36T, SUBASSEMBLY
3234363
|
$289.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
COVER SUBASSEMBLY
3234473
|
$299.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
CARRIER SUBASSEMBLY
3234472
|
$454.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
GEAR SUBASSEMBLY
3234469
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
COVER, BEARING, CENTER DRIVE
3234063
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
DEFLECTOR, OIL
3234915
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
CHAIN SILENT
3234442
|
$424.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
CHAIN
3234264
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
BEARING, BALL, 6205 C3 25X52X15
3233019
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
