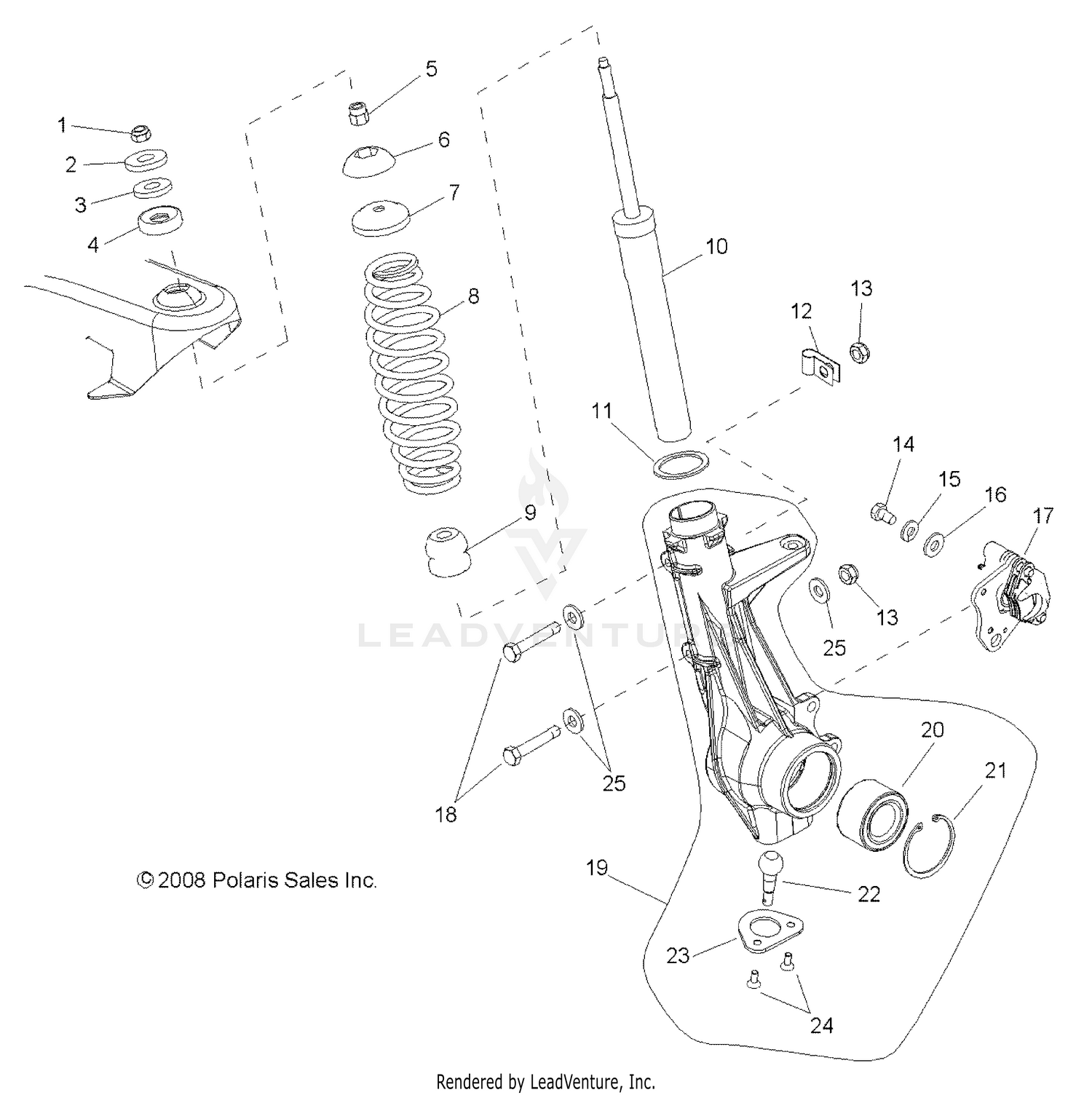

Suspension, Front Strut - R09wh68ac/ag/ah/al/ar/az (49rgrstrutfrt09crew) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NUT-1/2-20 NYLOK,THIN HT-Y
7547104
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
Washer
7555749
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
SPACER-RUBBER
5810291
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
PIVOT-BALL,TOP,DELRIN
5432872
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Spacer
5132062
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIVOT-BALL,BOTTOM,DELRIN
5432871
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
RETAINER-SPRING,STRUT
5243364
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Spring, Compression, Front, Black
7043336-067
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Spring, Compression, Front, Silver
7043336-385
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUMPER-MCU,17.8MM ID
5412665
|
$7.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
Strut, Front
7043106
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER-2.06X2.62X.105-Y
5211115
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
CLAMP-CABLE
7080367
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT-5/16-18 NYLOK-Y
7542324
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Bolt
7512457
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Washer, Spring Lock
7552603
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Washer, Flat
7556188
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
ASM., FRONT BRAKE CALIPER, RH
-------
|
|||
|
Unavailable |
|||
|
#18
SCR-HH-5/16-18X2.25 GR5 ZY3
7515339
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
ASM., HUBSTRUT, LH
1823299
Superseded by 1823716
|
$529.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
ASM., HUBSTRUT, RH
1823300
Superseded by 1823717
|
$529.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING-WHEEL, 35X64X37MM
3514342
Superseded by 3514634
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Ring, Retaining
7710507
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BALL-JOINT,GREASELESS,STRUT
7061158
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET-BALL JOINT
5211121
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCR-1/4-20X5/8 FL HX SOC CP-Y
7512284
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
WASHER-.344X.688X.063 FL-Y
7558402
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
