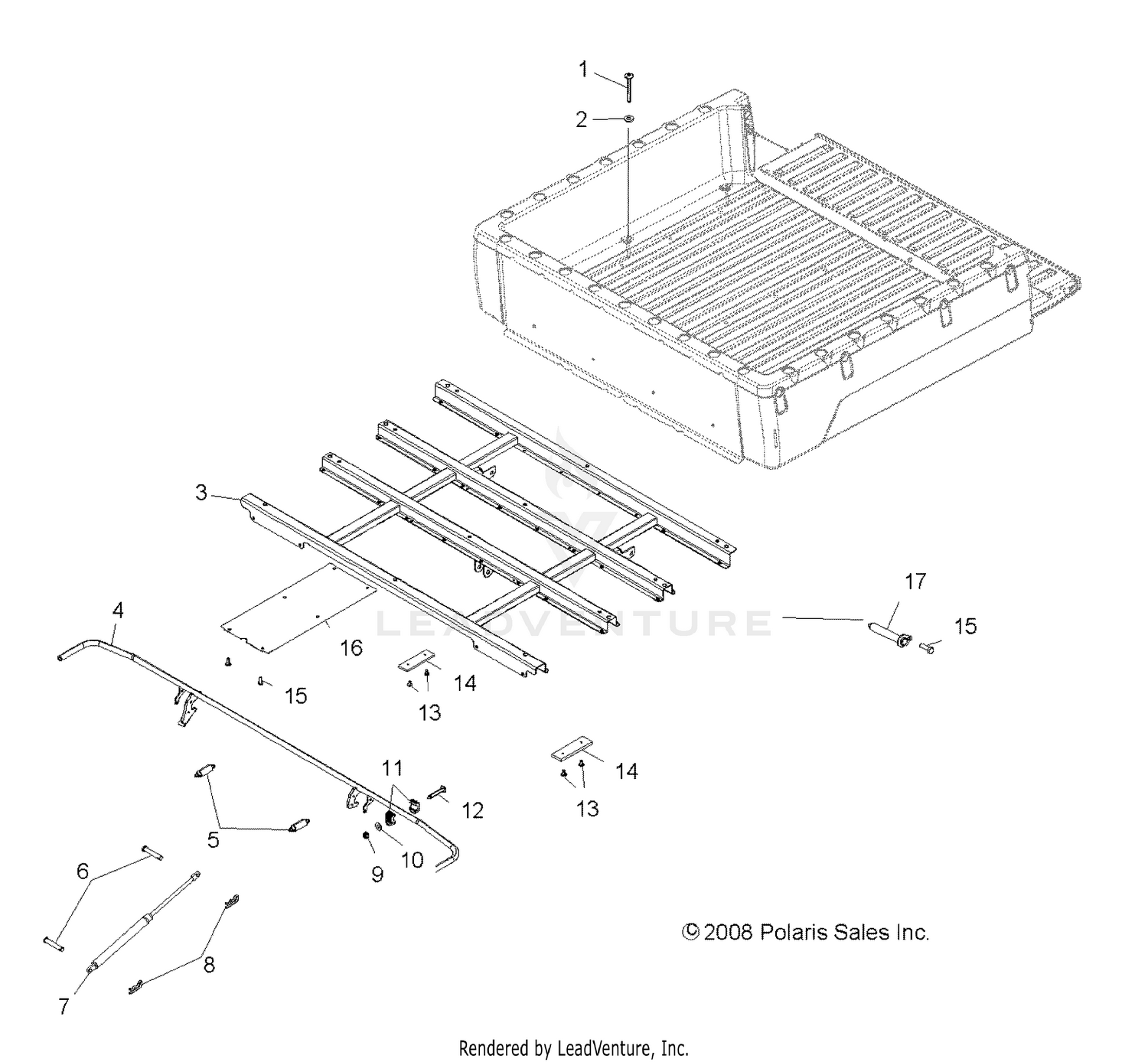

Body, Box Mounting - R09wh68ac/ag/ah/al/ar/az (49rgrboxmounting09crew) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Screw
7518375
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
Washer
7556329
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
Box, Support, Short, Black
1015308-329
|
|||
|
Unavailable |
|||
|
#4
Latch, Box, Black
1016235-067
|
$185.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING-EXHAUST
7041687
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Pin, Clevis
7661878
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Shock, Dump Box
7043187
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Clip
7661067
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT-5/16-18 HX FLG NL-Y
7542343
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER-.344X.688X.063 FL-Y
7558402
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BUSHING-BOX,LATCH
5434226
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Screw
7515319
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Rivet
7621418
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
Bumper, Box Base
5412321
|
$6.19 | ||
|
Available to order. Add to View Price |
|||
|
#15
Screw
7517386
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
Shield, Heat, Exhaust
5249127
Superseded by 5253903
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Pin, Box Hinge, Black
1016695-329
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
