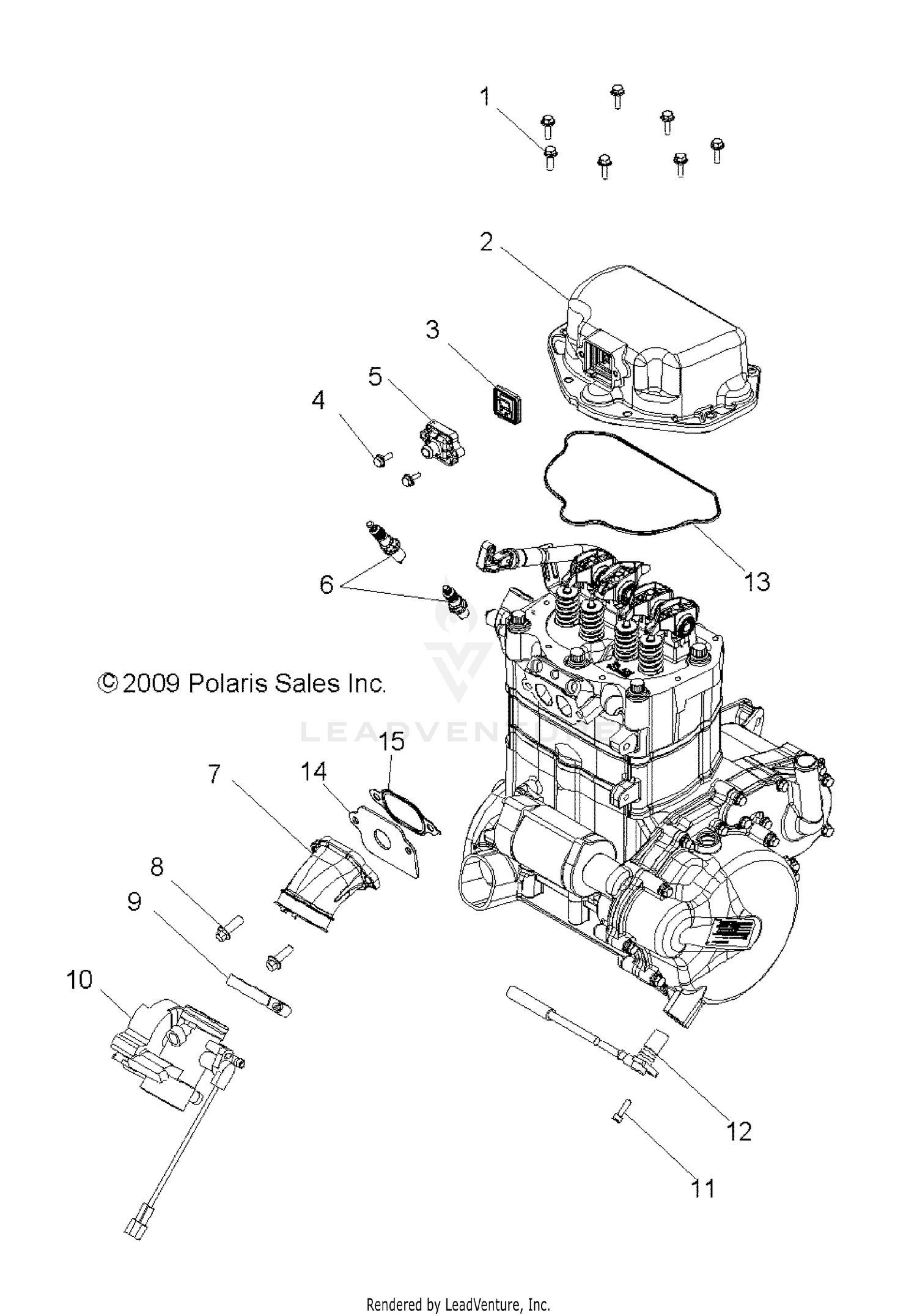

Engine, Throttle Body And Valve Cover - R10wh76ag/ah/ar/av/wy76aw/az (49rgrthrottlebody10800crew) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Screw
7516822
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Cover, Valve
5136099
Superseded by 5138505
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ASM-REED W/GASKET
3021352
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Screw
7516607
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Cover, Breather
5432533
|
$25.79 | ||
|
Unavailable |
|||
|
#6
Plug, Spark, Champion RC7YC3
3021671
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Adapter
1240494
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Screw
7519126
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP-WORM GEAR,44-70MM,HOSE
7081623
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
KIT-THROTTLE BODY 1203944
1203944
Superseded by 2204189
|
$369.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
ASM., TPS 850
2410342
Superseded by 1204715
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-Ring, TPS
5413812
|
$2.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
Screw
7517384
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Sensor, Crank Position
2410720
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Seal, Valve Cover
5412632
Superseded by 5412836
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Plate, Restrictor
5253217
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Gasket, Restrictor Plate
5813478
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
