2010 Polaris RANGER 800 CREW EPS SUNSET RED LE Body, Box Mounting - R10wh76ag/ah/ar/av/wy76aw/az (49rgrboxmounting10crew) OEM Parts

Air & Fuel
Body, Fairing & Fender
Brakes
Cooling System
Drive & Transmission
Electrical
Engine
Exhaust
Foot Control
Frame
Handlebars & Controls
Other
Seat
Suspension

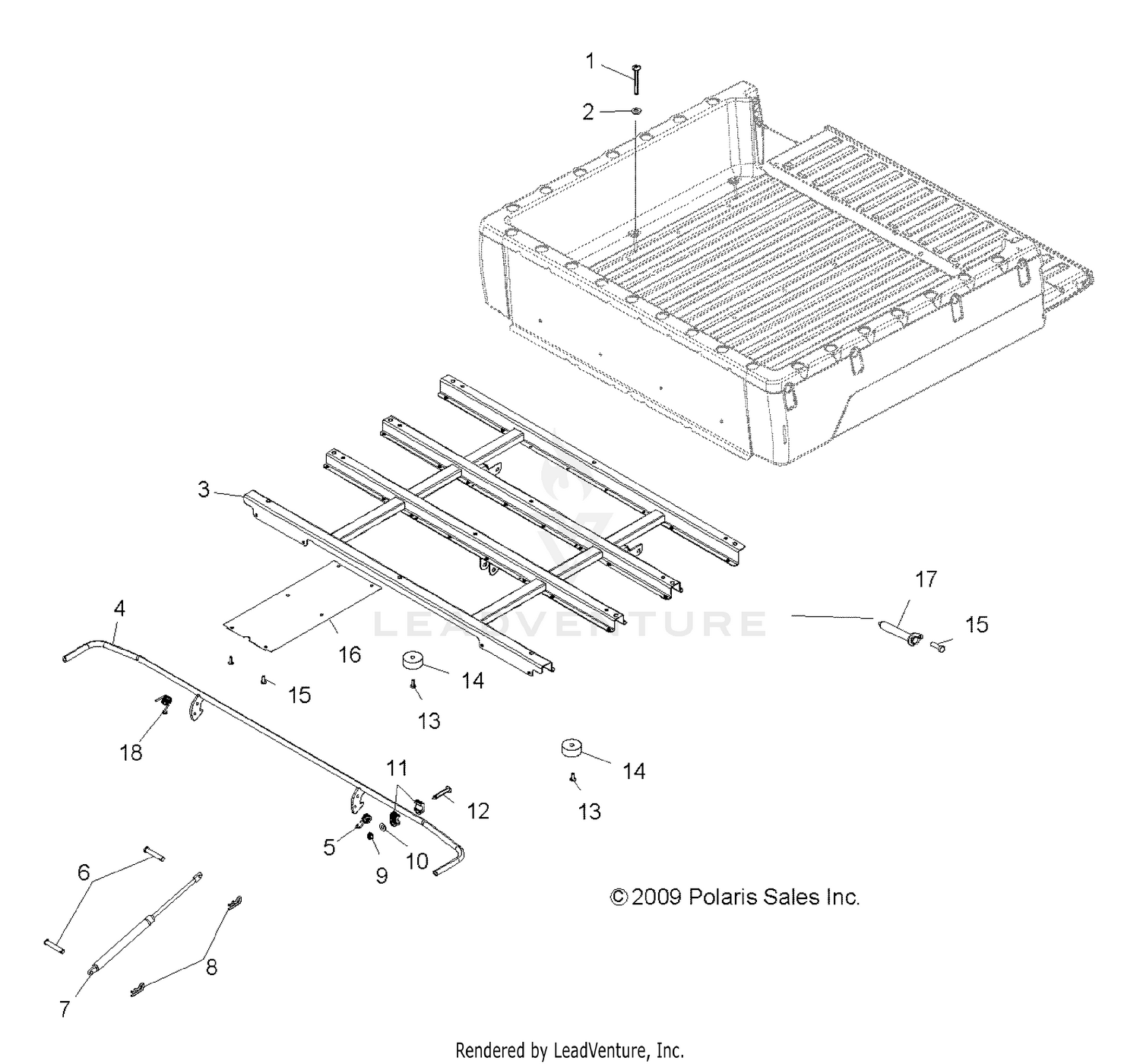

Body, Box Mounting - R10wh76ag/ah/ar/av/wy76aw/az (49rgrboxmounting10crew) Diagram

Item MSRP Qty
#1 Screw
7518375
$1.49
Available to order.
Add to View Price
#2 Washer
7556329
$1.49
Available to order.
Add to View Price
#3 Box, Support, Short, Black
1017313-329
$389.99
Available to order.
Add to View Price
#3 Box, Support, Short, Black
1017600-329
$249.99
Available to order.
Add to View Price
#4 Latch, Box, Black
1017305-067
$269.99
Available to order.
Add to View Price
#5 Spring, Latch
7043576
$5.99
Available to order.
Add to View Price
#6 Pin, Clevis
7661878
$2.99
Available to order.
Add to View Price
#7 Shock, Dump Box
7043187
$84.99
Available to order.
Add to View Price
#8 Clip
7661067
$2.99
Available to order.
Add to View Price
#9 NUT-5/16-18 HX FLG NL-Y
7542343
$5.99
Available to order.
Add to View Price
#10 WASHER-.344X.688X.063 FL-Y
7558402
$0.99
In Stock: Ready to ship.
Add to View Price
#11 BUSHING-BOX,LATCH
5434226
$4.99
Available to order.
Add to View Price
#12 Screw
7515319
$5.99
Available to order.
Add to View Price
#13 Screw
7518280
$1.49
Available to order.
Add to View Price
#14 Bumper, Box w/Washer
5413833
$4.99
Available to order.
Add to View Price
#15 Screw
7517386
$1.49
Available to order.
Add to View Price
#16 Shield, Heat, Exhaust
5253903
$69.99
Available to order.
Add to View Price
#17 Pin, Box Hinge, Black
1016695-329
$12.99
Available to order.
Add to View Price
#18 Spring, Latch
7043607
$13.99
Available to order.
Add to View Price
Back to Top
