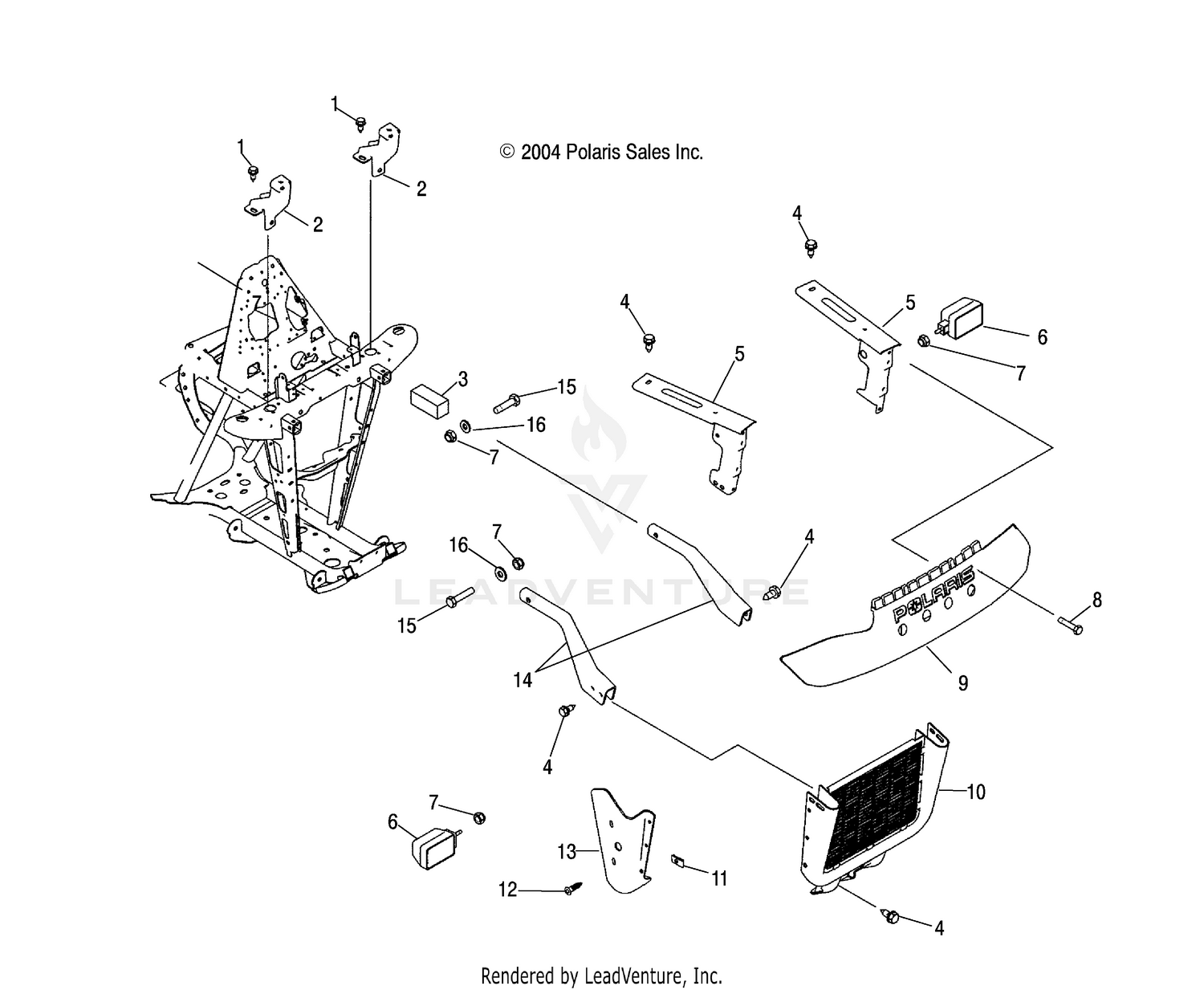

Front Rack And Bumper Mounting - A05cd32aa/ab/ac (4994909490a07) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Screw
7512232
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
Support, Front Rack, LH
1013744-067
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Support, Front Rack, RH
1013746-067
|
$94.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
Plug, Frame
5810467
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Screw
7515399
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
Mount, Rack, LH
1014099-067
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Mount, Rack, RH
1014101-067
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Asm., Headlight, Side, LH
2431011
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Asm., Headlight, Side, RH
2431012
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Bulb, Headlamp, 30W
4030061
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT-5/16-18 NYLOK-Y
7542324
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Screw
7517977
|
|||
|
Available to order. Add to View Price |
|||
|
#9
Bumper
5432155-070
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Guard, Brush
1013772-067
|
|||
|
Available to order. Add to View Price |
|||
|
#11
Nut, U-Type
7670094
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Screw
7512097
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Shield, Radiator Side, LH
5433923
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Shield, Radiator Side, RH
5433924
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Extension, Frame, LH
5244729-067
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Extension, Frame, RH
5244730-067
|
$156.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Bolt
7512329
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER-.344X.688X.063 FL-Y
7558402
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
