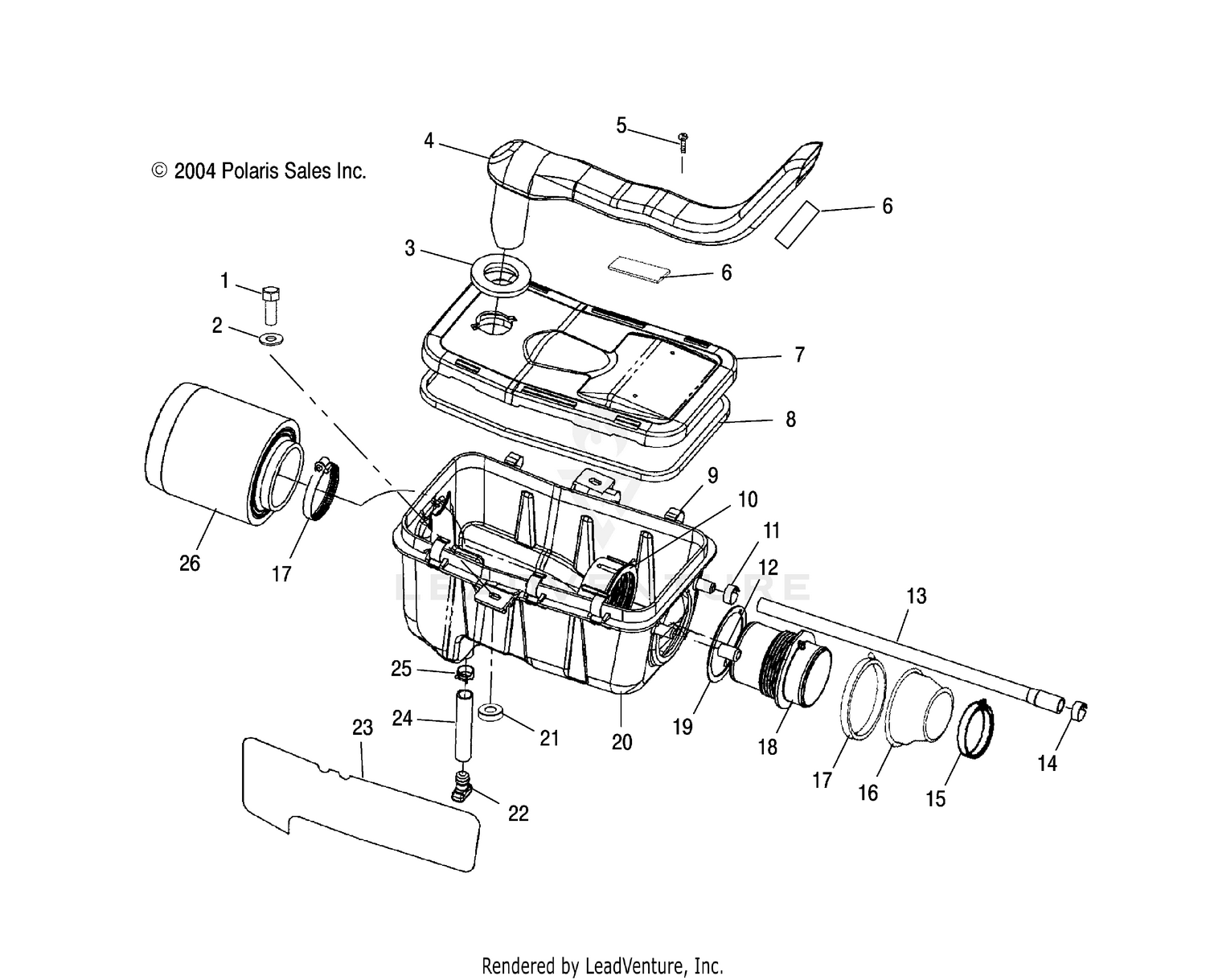

Air Box - A05cd32aa/ab/ac (4994909490b06) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Screw
7518306
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Washer, Flat
7558301
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
Seal, Airbox, Intake
5812023
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
Duct, Inlet, Airbox Cover
5433920
|
|||
|
Unavailable |
|||
|
#5
SCR-#8X1/2,TR/PH,TYPE B-Y
7517317
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
Pad
5810317
|
|||
|
Available to order. Add to View Price |
|||
|
#7
Cover, Air Box
5433769
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAL, COVER
5811482
Superseded by 5812829
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP-AIR BOX
5242044
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Collar, Carburetor Inlet
5432601
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Clamp, Hose
7080699
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Cap, Rubber
5433396
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Hose, Breather
5411866
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
Clamp, Hose, Spring
7080694
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Clamp, Narrow Band
7080511
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Boot, Carburetor
5411588
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Clamp, Narrow Band
7080413
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
Duct, Carburetor Inlet
5433180
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Gasket, Carburetor Inlet
5830128
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Box, Air Intake, 4 Stroke
5435758
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Spacer
7556091
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Plug, Trap
5435299
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Foil, Air Box, RH
5812111
|
|||
|
Unavailable |
|||
|
#24
LINE, FUEL
8450059-100
Superseded by 8450059-150
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Clamp, Hose
7080650
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Asm., Filter
1253372
|
$34.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
