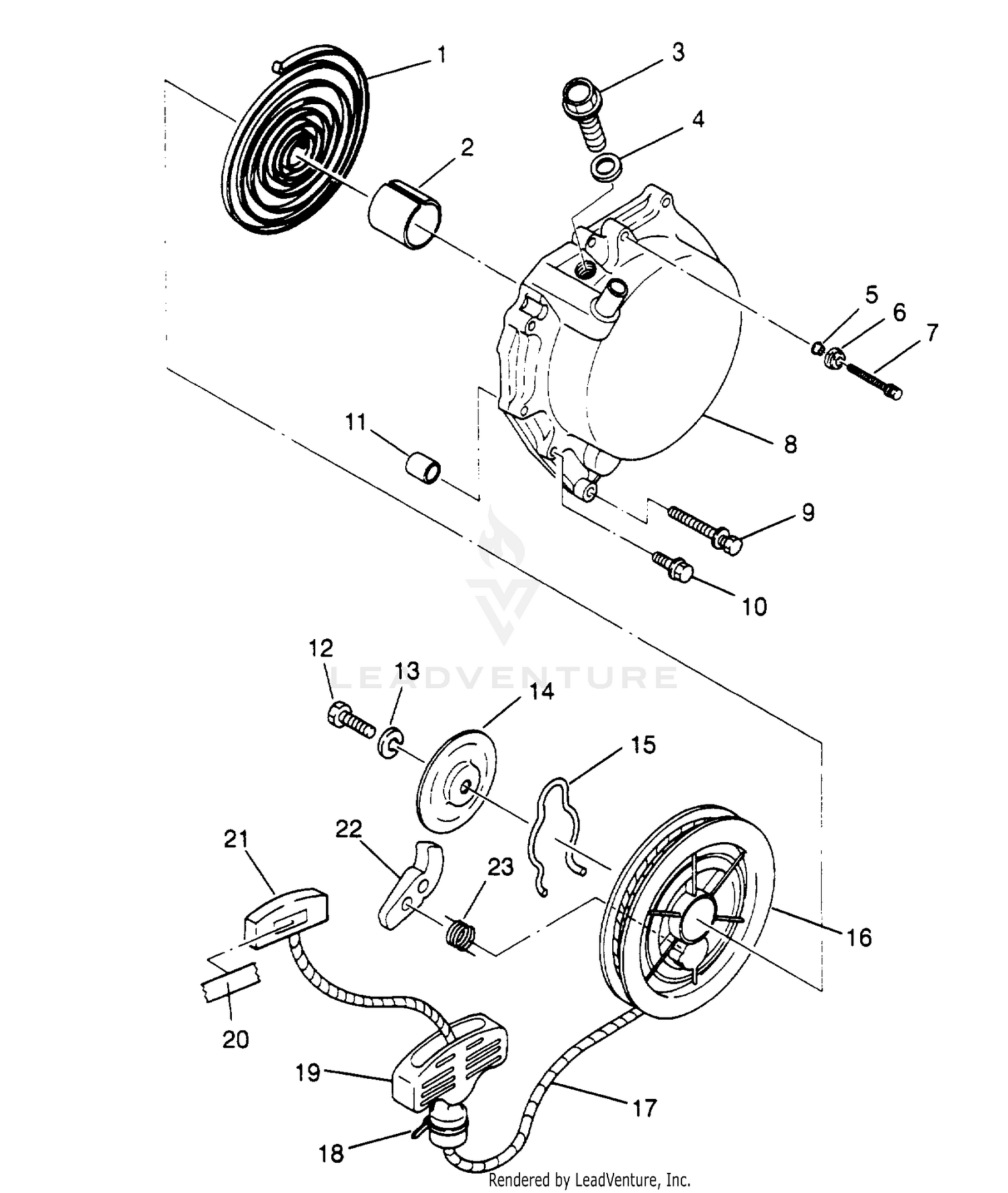

Recoil Starter 6x6 300 W948730 (4926792679d008) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPRING
3083185
|
$41.19 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSH
3084750
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLUG Substituted by 3086749
3083453
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
3082956
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
COLLAR
3083732
|
|||
|
Unavailable |
|||
|
#6
MOUNTING,RUBBER
3083731
|
$6.19 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT&WASHER
3083730
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CASE,STARTER
3084821
|
|||
|
Unavailable |
|||
|
#8
STARTER ASM, RECOIL Substituted by 3085082
3084780
|
|||
|
Unavailable |
|||
|
#8
STARTER, RECOIL Substituted by 3084780
3084781
|
|||
|
Unavailable |
|||
|
#9
BOLT&WASHER
3084782
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
Bolt, Flange
3084177
Superseded by 3086751
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUSHING, STARTER
3083669
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT Substituted by 3085266
3084751
|
|||
|
Unavailable |
|||
|
#13
WASHER, SPRING
3084752
|
|||
|
Unavailable |
|||
|
#14
PLATE, FRICTION
3084744
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, FRICTION
3083379
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
REEL,STARTER
3084822
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
ROPE,100 FT,NYL.STARTER
2870621
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
ROPE ASM
3084745
Superseded by 3085083
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAND, WIRE
3084823
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
ROPE ASM
3084747
Superseded by 3085083
|
$49.99 | ||
|
Unavailable |
|||
|
#20
ROPE ASM
3084748
Superseded by 3085083
|
$49.99 | ||
|
Unavailable |
|||
|
#21
ROPE ASM
3084749
Superseded by 3085083
|
$49.99 | ||
|
Unavailable |
|||
|
#22
RATCHET
3083378
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING, RETURN
3083463
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
