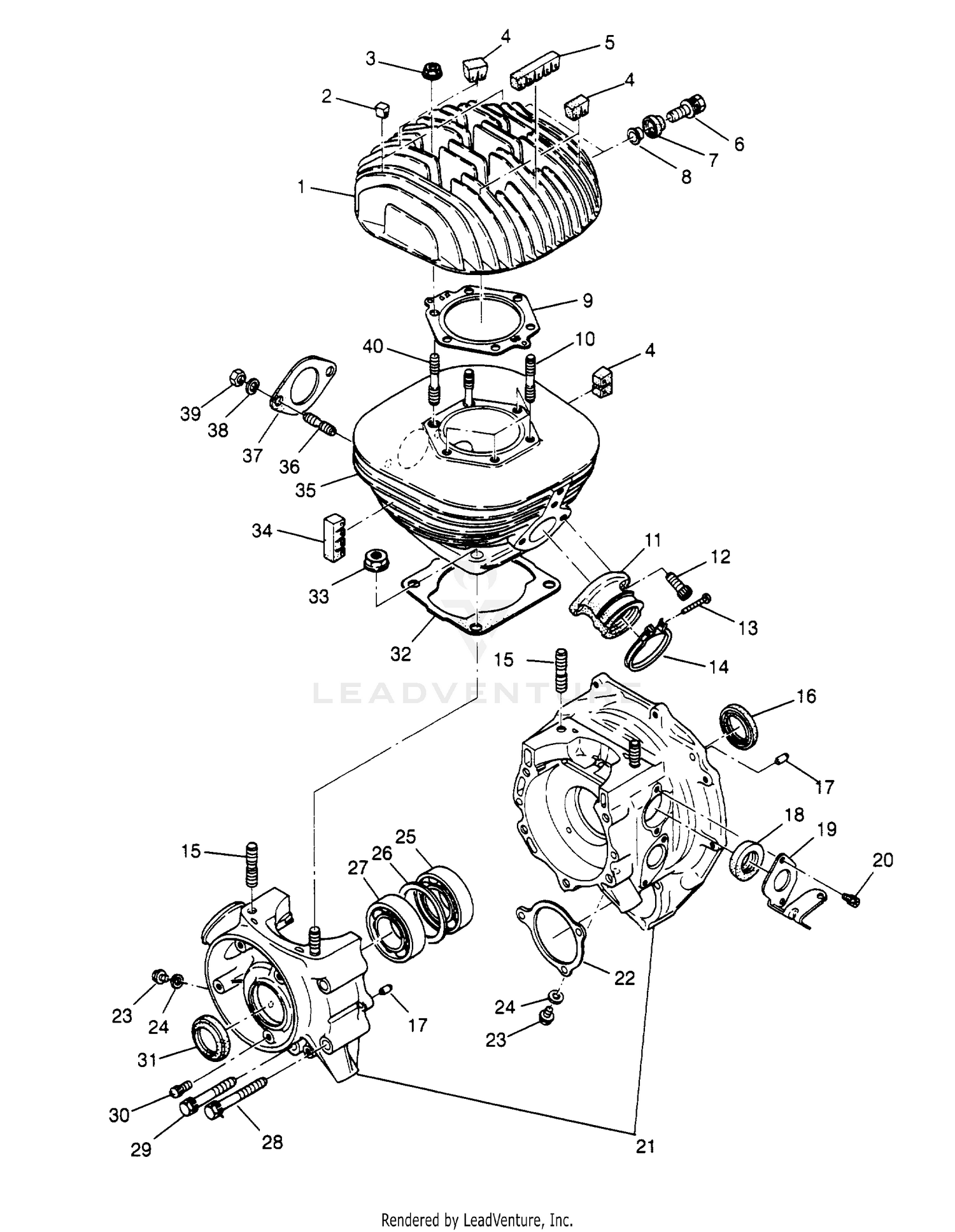

Crankcase And Cylinder 6x6 300 W948730 (4926792679d003) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD,CYLINDER
3084796
|
|||
|
Unavailable |
|||
|
#2
FIN DAMPER #2
3083930
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT-FLANGE(10)
3082910
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
FIN DAMPER B
3084799
|
|||
|
Unavailable |
|||
|
#5
FIN DAMPER A
3084798
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT&WASHER
3083730
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
MOUNTING,RUBBER
3083731
|
$6.19 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
3083732
|
|||
|
Unavailable |
|||
|
#9
GASKET,HEAD
3084797
|
|||
|
Unavailable |
|||
|
#10
STUD
3080283
|
$16.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
ADAPTER, CARB. *
3083412
Superseded by 3085013
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, ALLEN
3081330
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW,(10)
3081497
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BAND-CARB MTG.
3082257
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
STUD
3084119
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAL,OIL
3080006
Superseded by 3082162
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Pin, Dowel
3080103
Superseded by 3086838
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
GROMMET
3084801
|
$6.29 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRACKET,WIRE
3084800
|
|||
|
Unavailable |
|||
|
#20
BOLT&WASHER ASM.(10)
3084802
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
CRANKCASE ASM.
3084791
|
|||
|
Unavailable |
|||
|
#22
GASKET,STARTER(NON-ASBESTOS)
3084018
Superseded by 3085283
|
$12.39 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLUG, DRAIN
3083767
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, FLAT
3082758
Superseded by 7555998
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BEARING, BALL
3084775
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPACER
3084792
|
|||
|
Unavailable |
|||
|
#27
BEARING, BALL
3084121
|
$49.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BOLT W/WASHER
3080739
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT&WASHER ASSY.
3083615
|
|||
|
Unavailable |
|||
|
#30
SCREW&WASHER ASM.
3081635
|
|||
|
Unavailable |
|||
|
#31
SEAL, OIL, PTO
3084581
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
GASKET,CYL,NA
3084795
|
|||
|
Available to order. Add to View Price |
|||
|
#33
NUT-FLANGE(10)
3082911
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
FIN DAMPER #1
3083929
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
CYLINDER
3084793
|
|||
|
Available to order. Add to View Price |
|||
|
#36
STUD (10)
3080016
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#37
Gasket, Exhaust
3084017
Superseded by 3086757
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER LOCK ,(10)
3080530
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
Nut
3080285
Superseded by 3087199
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
STUD
3084794
|
|||
|
Unavailable |
|||
