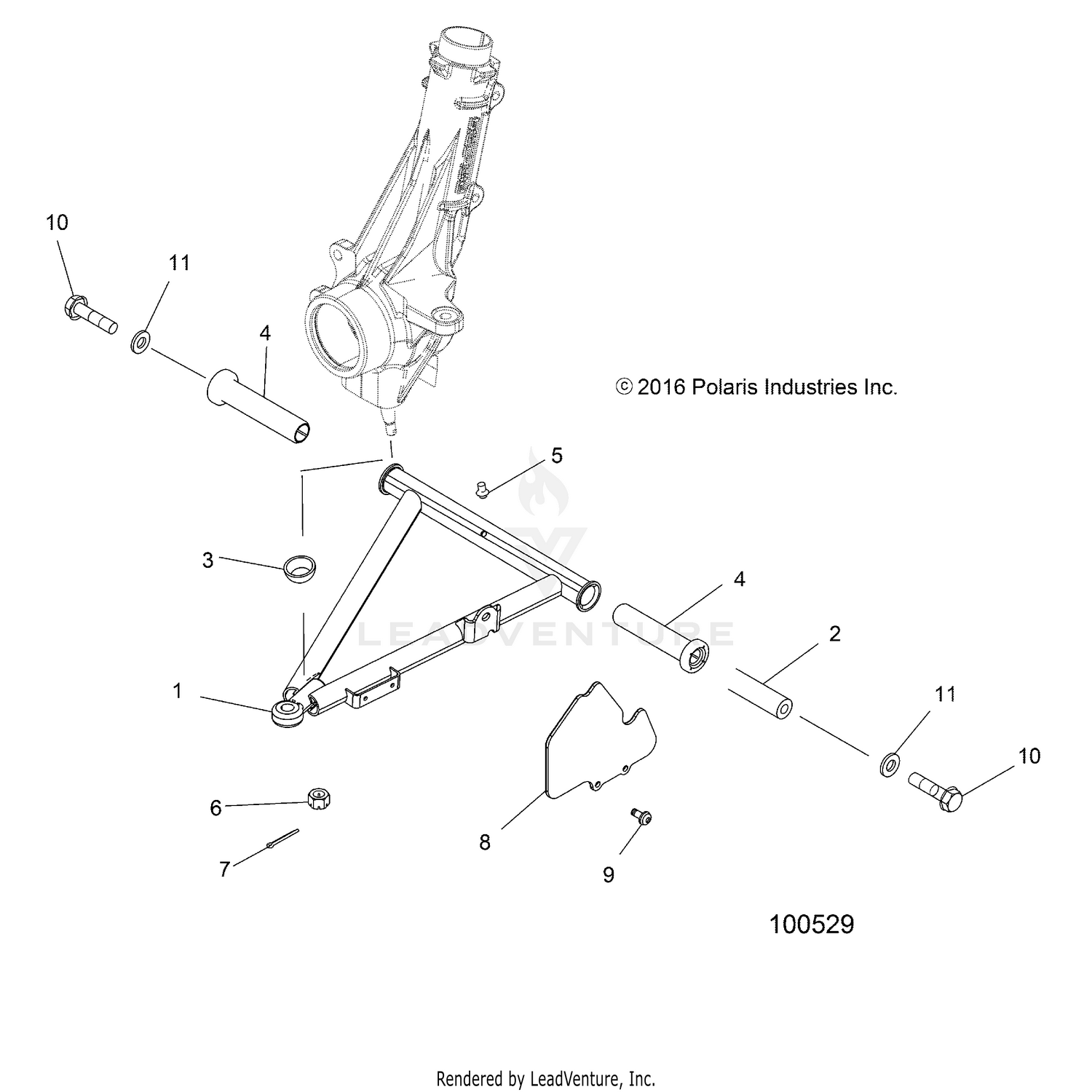

Suspension, A-arm And Strut Mounting - A18daa50b7 (100529) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WELD-A-FRAME,FLARED,LH,M.BLK
1543675-458
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
WELD-A-FRAME,FLARED,RH,M.BLK
1543676-458
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHAFT-A-ARM,C-BORE
5139929
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOOT, BALL JOINT, GREASELESS
5412658
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSHING, A-ARM, LONG
5436973
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY)
1543326
|
$15.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
FITTING, LUBRICATION
7080433
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
NUT-3/8-24 HX CA GR5-Y
7542438
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
PIN, COTTER
7661203
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SHIELD-CV,FRONT,BLK
5438641-070
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SCREW
7512084
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SCR-3/8-24X1 3/4,HX,GR5,P30,Y
7520340
|
$1.79 | ||
|
Unavailable |
|||
|
#11
WASHER-3/8 FW SAE STL THRU-HRD
7556153
|
$2.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
