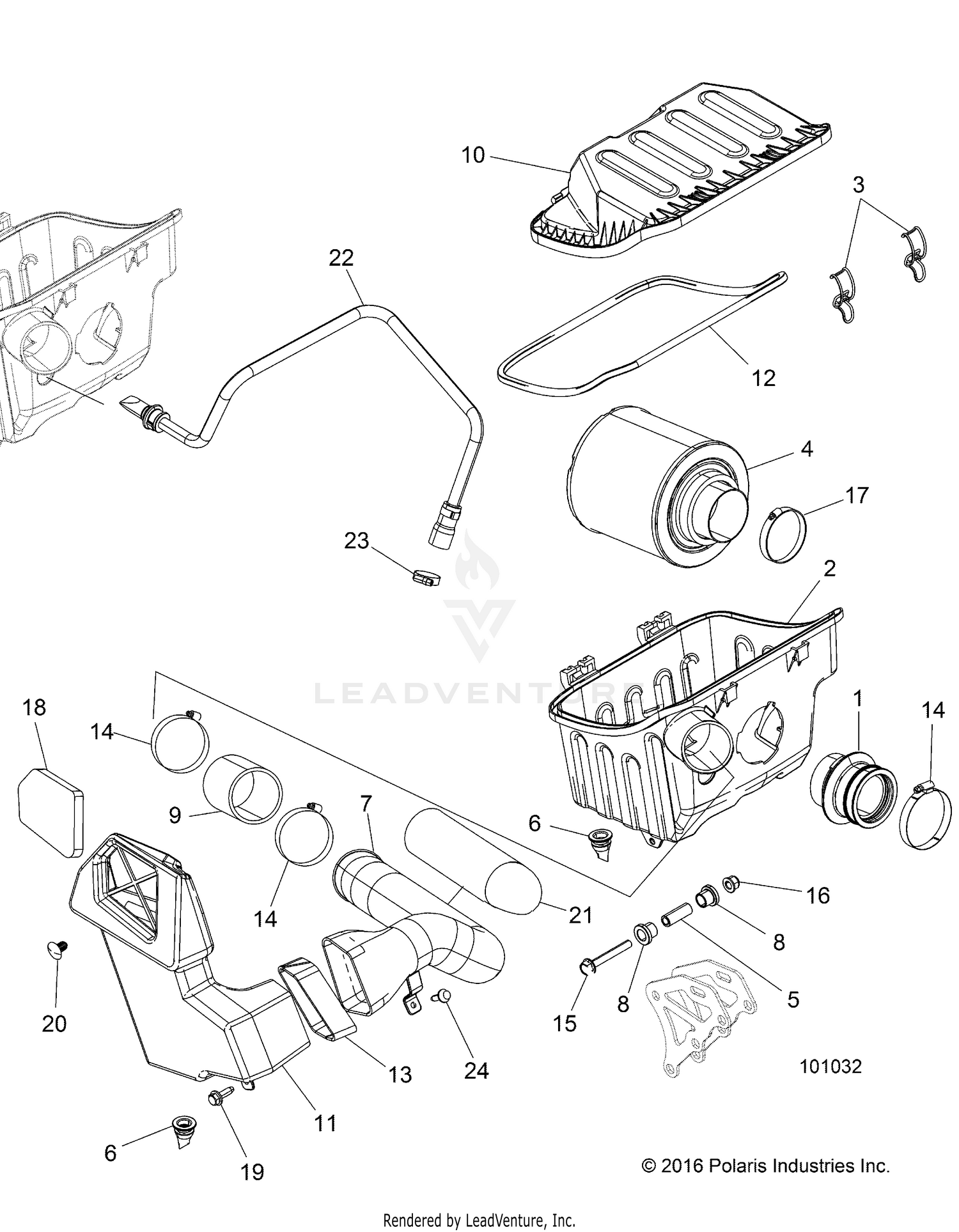

Engine, Air Intake System - A18daa50b7 (101032) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOOT, ENGINE, INTAKE
5415939
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOX, AIR INTAKE
5450495
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLIP-AIRBOX
7081707
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
FILTER-AIR
7082037
|
$37.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
SHAFT, COMPRESSION
5138987
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG-DRAIN
5414472
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
DUCT, INTAKE
5452665
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSHING-MOUNT
5414719
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE, INTAKE
5414582
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER-AIRBOX
5450175
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOX, INTAKE, RH
5450728
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL-AIR BOX COVER
5814106
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL, FOAM
5814033
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP-WORM GEAR,44-70MM,HOSE
7081623
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
7519298
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CLAMP-BAND,NARROW 60-80MM
7080707
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
FILTER, INTAKE, FOAM
5814026
|
$15.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
CLIP-PLASTIC DART, NYLON
7670088
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SHIELD-SLEEVE
5814546
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE, BREATHER
5415578
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP, HOSE
7080696
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
RIVET, TUFLOK
7661855
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
