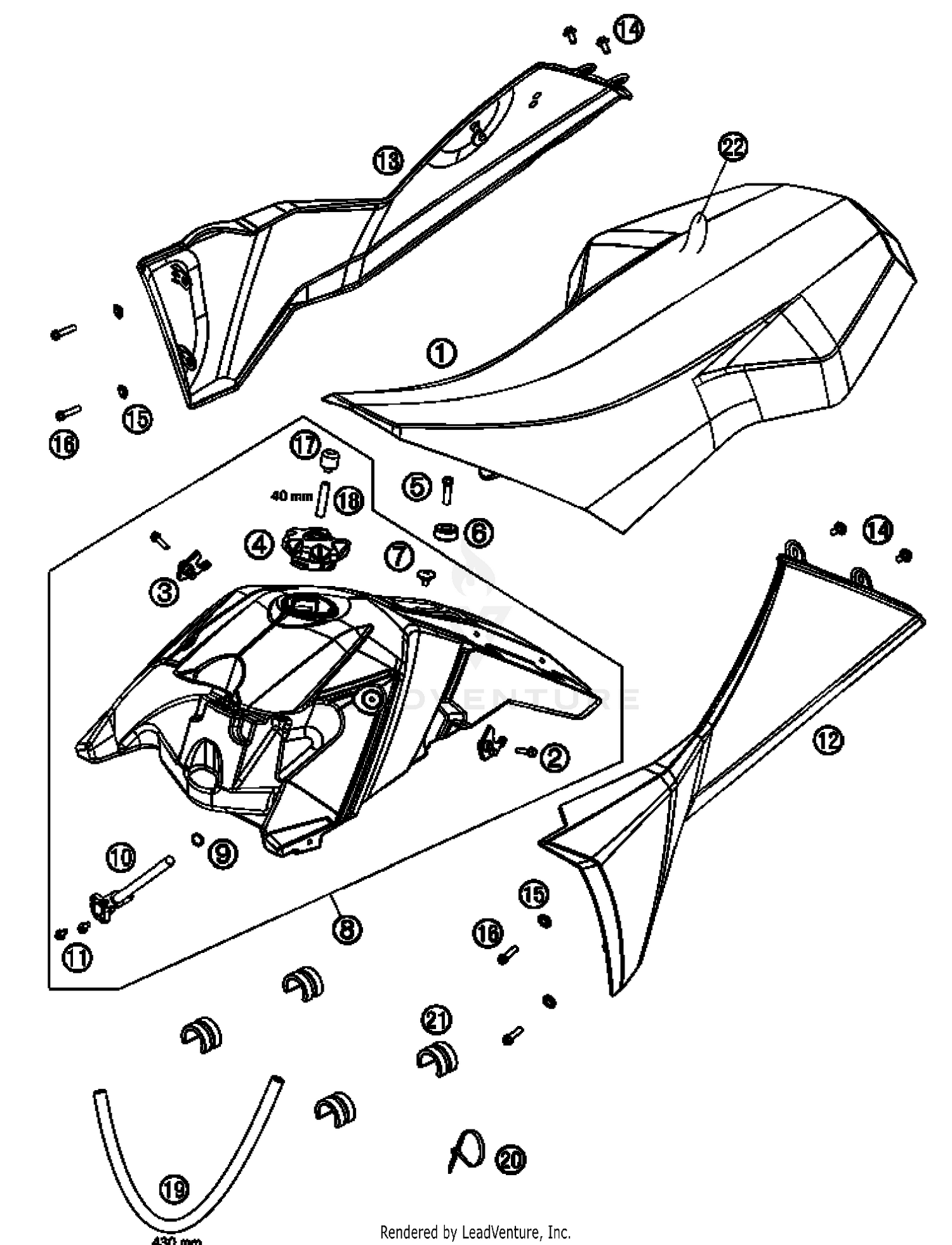

Tank, Seat, Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT ATV 2009
83007040000
Superseded by 83007040100
|
$216.80 | ||
|
Available to order. Add to View Price |
|||
|
#2
HH collar screw M5x20 TX30
0015050203
Superseded by 0025050206
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
SPOILER BRACKET
83007013050
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#4
TANK PLUG CPL. EXC
78007008044
|
|||
|
Unavailable |
|||
|
#5
HH collar screw M6x16 TX30
0025060166
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
TANK ROLLER 12X26X12 '98
50307014000
|
$12.97 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Seat screw M6x11.5 ISA30
58407011100
Superseded by 0900000601200
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FUEL TANK CPL.
83007013044
Superseded by 8300701303330
|
$618.33 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING 1,78x10,82x14,38 2-013
55007006200
Superseded by 0770020130
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
GAS COCK ON/OFF/RES 03
54807004000
|
$38.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
HH collar screw M5x12 TX30
0015050123
Superseded by 0025050126
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
RADIATOR SPOILER L/S BLACK
8300805000030
|
$50.59 | ||
|
Available to order. Add to View Price |
|||
|
#13
RADIATOR SPOILER R/S BLACK
8300805100030
|
$49.09 | ||
|
Available to order. Add to View Price |
|||
|
#14
HH COLLAR SCREW M6X10 TX30
0024060106
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BUSH FOR SPOILER 6X11X16X7,5
50308053000
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#16
HH collar screw M6x20 TX30
0025060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NIPPLE FOR VENTILATION HOSE 04
80007030000
|
$2.74 | ||
|
Available to order. Add to View Price |
|||
|
#18
FUEL HOSE VITON 6X1,5 PER/M
58307016001
|
$43.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
FUEL HOSE
83007016000
|
$24.19 | ||
|
Available to order. Add to View Price |
|||
|
#20
CABLE TIE 200/3,6MM BLACK
44011076200
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPACER FUEL TANK 05
61007014000
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#22
SEAT COVER
83007040050
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
