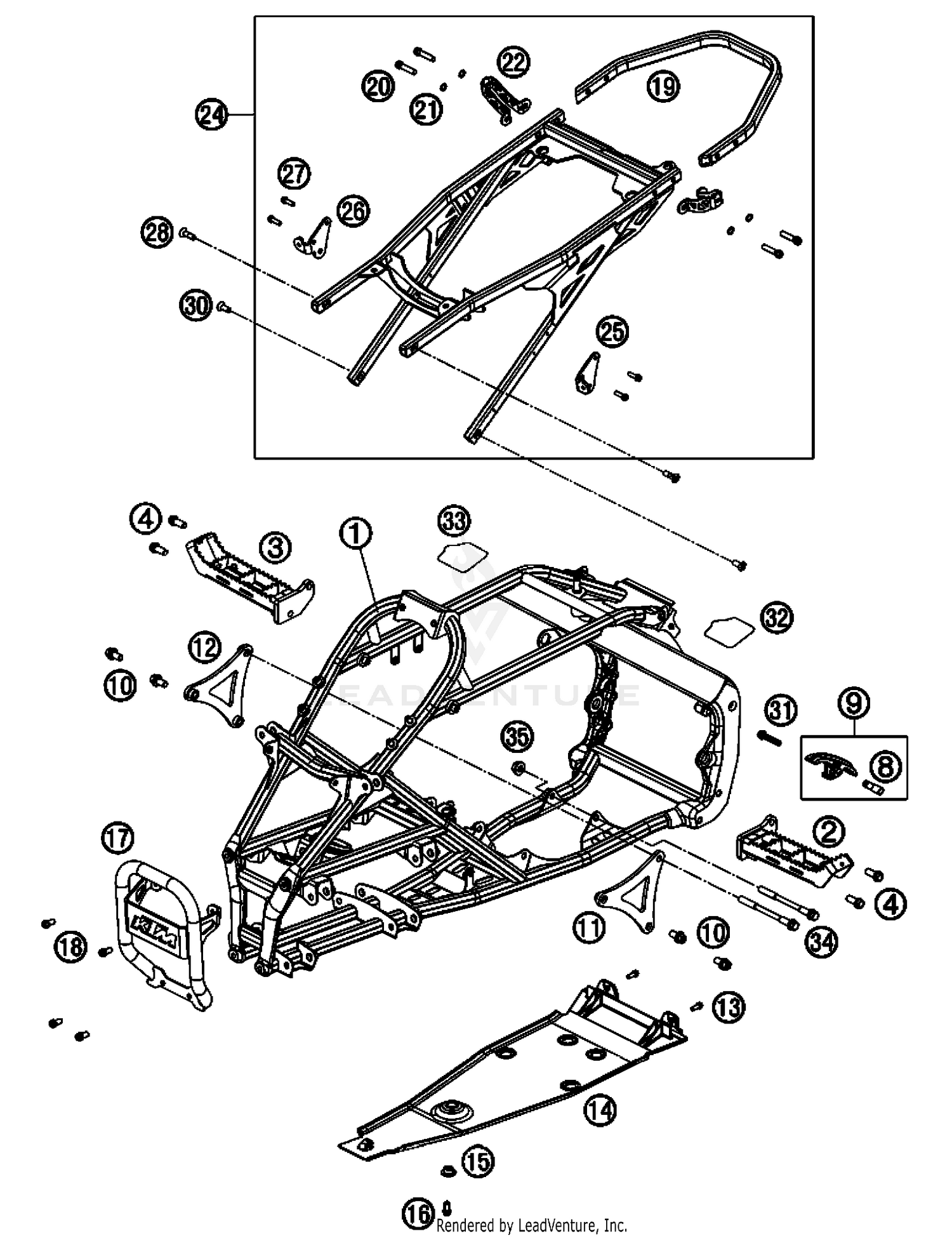

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME ATV-XC ''NC08'' 2009
8300300100030
Superseded by 8300300110030
|
$2,325.74 | ||
|
Available to order. Add to View Price |
|||
|
#2
FOOTREST L/S
83003040000
Superseded by 83003040300
|
$107.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
FOOTREST CPL. R/S
83003041000
|
$79.48 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHCS M10x24 TX45
0025100246
Superseded by 0035100249
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSH 8,2X10X22
77303053051
|
$4.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CHAIN SLIDING PIECE BELOW
83003053000
|
$16.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
AH-COLLAR SCREW M10X20 ISA45
0023100183
Superseded by 0035100209
|
$9.23 | ||
|
Available to order. Add to View Price |
|||
|
#11
ENGINE SUPPORT L/S CPL.
83003013044
|
$119.90 | ||
|
Available to order. Add to View Price |
|||
|
#12
ENGINE SUPPORT R/S CPL.
83003113044
|
$99.42 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPECIAL SCREW M6X12,5 WS=8
59001092050
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
FRAME PROTECTION BELOW
83003090000
Superseded by 83003090200
|
$26.72 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING BUSHING INSIDE 03
60007061000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
HH collar screw M8x20
0025080206
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
FRONT BUMPER BLACK
8300300300030
|
$176.79 | ||
|
Available to order. Add to View Price |
|||
|
#18
HH COLLAR SCREW M8X16 TX40
0025080166
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SUB FRAME-BRACKET 07
83003002010
|
$73.98 | ||
|
Available to order. Add to View Price |
|||
|
#20
HH COLLAR SCREW M8X35 TX40
0025080356S
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
LOCK WASHER 8MM
36003014000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
FENDER MOUNTING
83003002030
|
$32.88 | ||
|
Available to order. Add to View Price |
|||
|
#24
SUB FRAME CPL. 08
83003002044
|
$579.89 | ||
|
Available to order. Add to View Price |
|||
|
#25
HEELGUARD FIXING L/S
83003002040
|
$21.93 | ||
|
Available to order. Add to View Price |
|||
|
#26
HEELGUARD FIXING R/S
83003002041
|
$24.74 | ||
|
Available to order. Add to View Price |
|||
|
#27
HH collar screw M6x20 TX30
0025060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
COUNTER-SUNK SCREW ISA45 M8X26
0019080266S
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
FLAT HEAD SCREW M. ISA45 M8X20
0019080206S
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
HH collar screw M8x45 TX40
0025080456
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
PROTECT.FILM F. FRAME L/S 2008
83003099000
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
PROTECT.FILM F. FRAME R/S 2008
83003099100
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#34
ENGINEBRAC.SCREW M10X123 WS=13
59003013000
|
$11.10 | ||
|
Available to order. Add to View Price |
|||
|
#35
SELF LOCKING NUT M10 CU WS=14
54310086100
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
