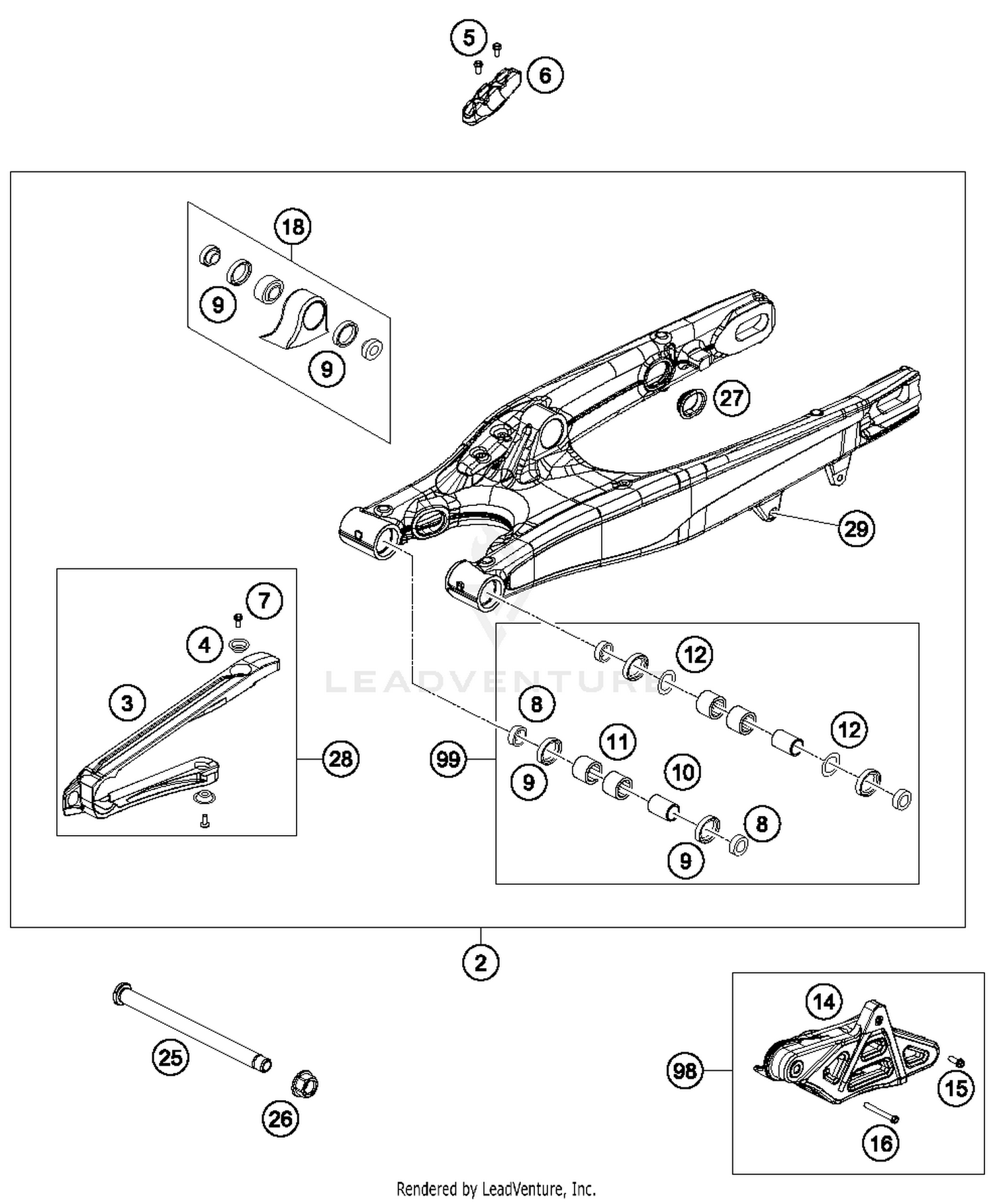

Swing Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
SWING ARM CPL. PDS 2011
51504030044
|
$801.66 | ||
|
Available to order. Add to View Price |
|||
|
#3
CHAIN SLID.GUARD PDS
51504066000
|
$26.72 | ||
|
Available to order. Add to View Price |
|||
|
#4
Chain slider bushing
77304066050
Superseded by 77304066150
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
EJOT SPIRAL SCREW SF M5X10-K
0009050106
|
$2.99 | ||
|
Unavailable |
|||
|
#6
BRAKE HOSE GUIDE LOWER 07
77313047000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPECIAL SCREW M6X13 WS=8 10.9
59009062013
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BUCKET F. SHAFT SEAL RING 03
54804034000
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
radial shaft seal 25x32x7
0760253270
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSHING SLEEVE F. SWING ARM 03
54804032000
|
$12.86 | ||
|
Available to order. Add to View Price |
|||
|
#11
NEEDLE BEARING HK 2216
58033097000
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
stop disc 22.2/31.7/1
54603036000
Superseded by 63533032000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#14
CHAIN GUIDE EXC ORANGE
7810407010004
|
$75.99 | ||
|
Unavailable |
|||
|
#15
SPECIAL SCREW M6X19 WS=8 10.9
59009062019
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
HH collar screw M6x50 TX30
0025060506
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
PIVOT BEARING+BUSH. PDS '11
50304090144
|
$76.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
SWINGARM BOLT M16X1,5 07
77304037000
|
$66.65 | ||
|
Available to order. Add to View Price |
|||
|
#26
Nut with flange M16X1,5 WS=19 03
54804038000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLOSING COVER
77204041000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CHAIN SLIDING GUARD KIT 11-15
51504066044
|
$33.10 | ||
|
Available to order. Add to View Price |
|||
|
#29
PRESS IN NUT M6 STEEL ZINC
54603055051
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#98
CHAIN GUIDE KIT EXC 14-15
78104070010
|
$54.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#99
SWINGARM REPAIR KIT 05-15
54804230210
|
$100.97 | ||
|
Available to order. Add to View Price |
|||
