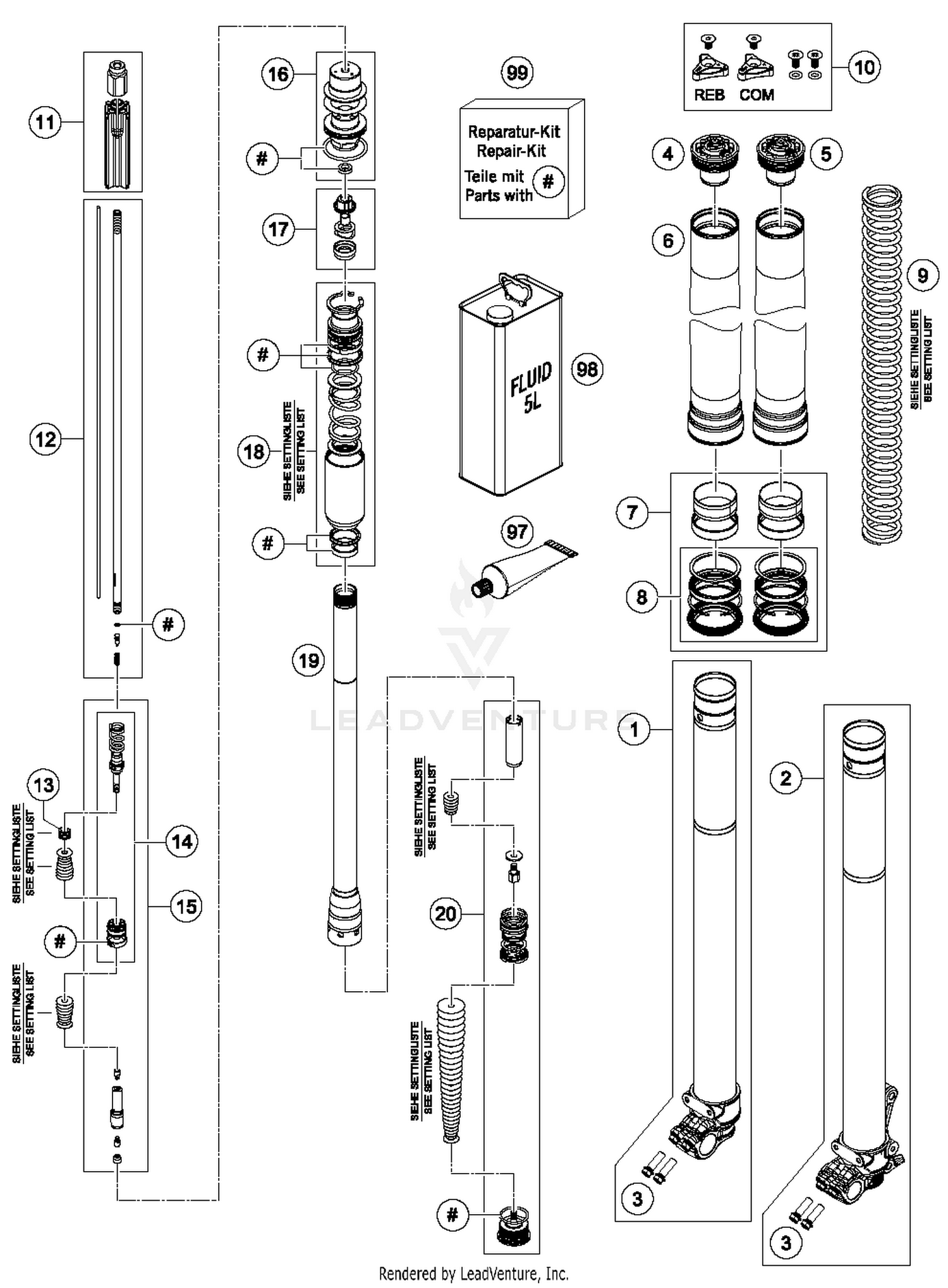

Front Fork Disassembled Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE CLAMP L/S WITH INNER TUBE
48601326S1
|
$491.89 | ||
|
Available to order. Add to View Price |
|||
|
#2
AXLE CLAMP R/S WITH INNER TUBE
48601327S1
|
$456.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
HH collar screw M8x25
0025080256
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
SCREW CAP M51X1,5 REB. KPL.
48601050E
Superseded by 48601050S
|
$108.19 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW CAP M51X1,5 COMP. KPL
48601116E
Superseded by 48601116S
|
$108.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
Fork outer tube 49,13x577 dt54 db60 natu
48600736
|
$543.94 | ||
|
Available to order. Add to View Price |
|||
|
#7
Fork repair kit 48mm offroad
R14063
|
$192.77 | ||
|
Available to order. Add to View Price |
|||
|
#8
Seal kit 48mm SKF black
R14040
Superseded by RP10048T
|
$78.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
main spring (43.8) 4.0-470 fork cpl.
91410100S
Superseded by S809900031S0000
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
main spring (43.8) 4.2-470 fork cpl.
91410101S
Superseded by S809900032S0000
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
main spring (43.8) 4.4-470 fork cpl.
91410102S
Superseded by S809900033S0000
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
main spring (43.8) 4.6-470 fork cpl.
91410103S
Superseded by S809900034S0000
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
main spring (43.8) 4.8-470 fork cpl.
91410104S
Superseded by S809900035S0000
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW CAP SMALL PART KIT
R14033
Superseded by R14033T
|
$8.02 | ||
|
Unavailable |
|||
|
#11
SPRING GUIDE CPL.
48601035S
|
$16.93 | ||
|
Available to order. Add to View Price |
|||
|
#12
PISTON ROD CPL.
48601343S
|
$123.63 | ||
|
Available to order. Add to View Price |
|||
|
#13
Spring (11,4) 0,4-8 valve
48600382
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
TAP KIT
R14056
Superseded by R14056T
|
$41.13 | ||
|
Unavailable |
|||
|
#15
Tap compression cpl.
48601390S3
|
$111.75 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW SLEEVE KIT
R14035
Superseded by R14035T
|
$71.71 | ||
|
Unavailable |
|||
|
#17
CONTROL VALVE D21 CPL.
4861025S1
|
$36.79 | ||
|
Available to order. Add to View Price |
|||
|
#18
Reservoir 36x85 cpl.
48601315S4
|
$94.48 | ||
|
Available to order. Add to View Price |
|||
|
#19
TUBE L403 + ADAPTER
48601031S1
|
$134.79 | ||
|
Available to order. Add to View Price |
|||
|
#20
Base tap cpl.
48601522S
|
$69.29 | ||
|
Available to order. Add to View Price |
|||
|
#97
Fuchs grease IPR (250g)
T511
Superseded by T14034
|
$40.69 | ||
|
Available to order. Add to View Price |
|||
|
#98
Fork Fluid Viscosity 4.0 5L
48601166S1
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#99
O-Ring Set 4CS
R24002
Superseded by R24002T
|
$49.99 | ||
|
Unavailable |
|||
