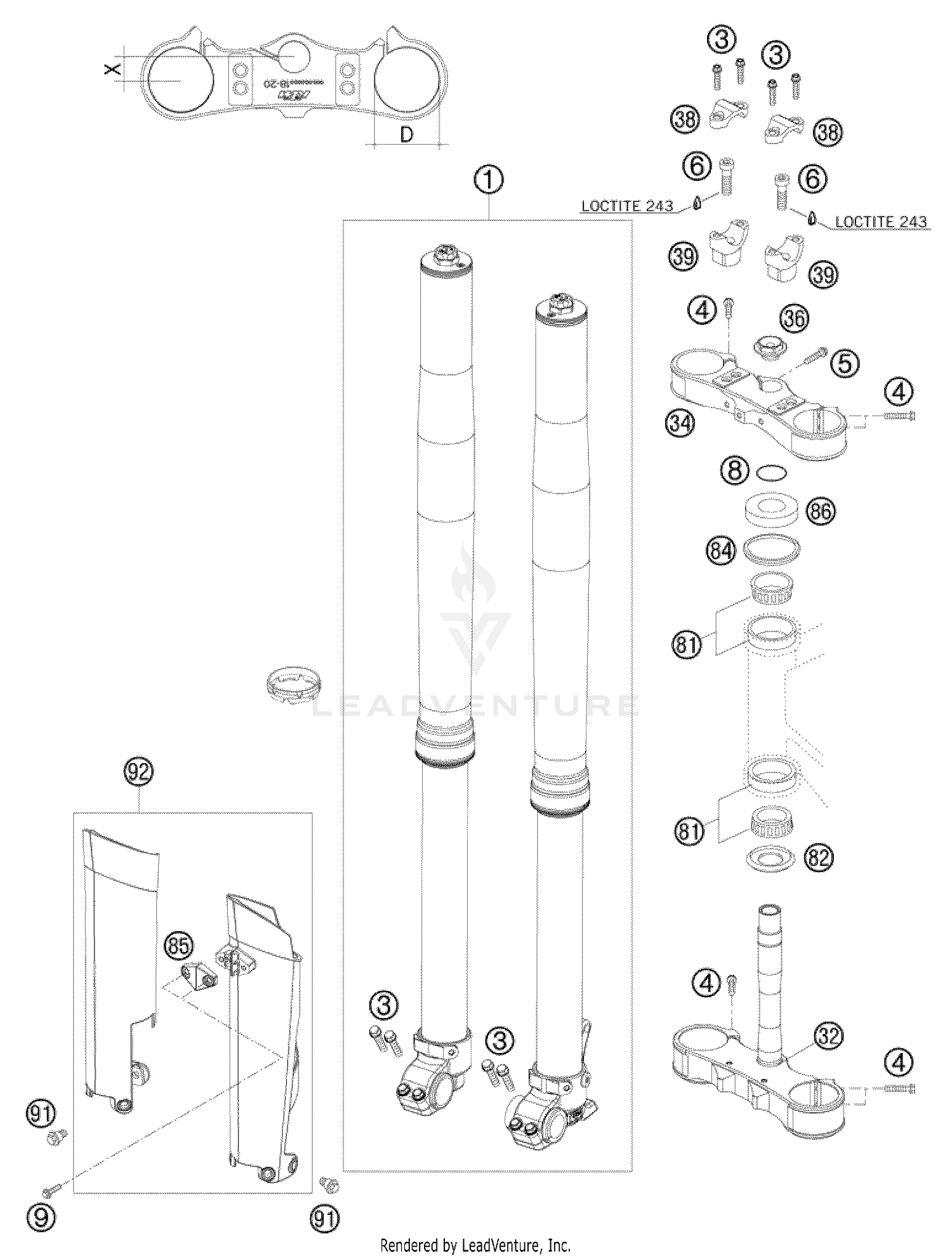

Front Fork, Triple Clamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK WP 250/300EXC 12
14187E0401
Superseded by 14187L6301
|
$2,761.29 | ||
|
Available to order. Add to View Price |
|||
|
#3
HH collar screw M8x25
0025080256
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#4
HH collar screw M8x35 TX40
0025080356
|
$4.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
HH COLLAR SCREW M8X25 TX40
0025080256S
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
AH-COLLAR SCREW M10X35 ISA45
0912100356
Superseded by 0032100356S
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
O-RING 25X3,55 NBR70 05
0770025035
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW F. PLASTIC K60X20AL SW6
0017060204
Superseded by 0017060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BOT. TRI. CLAMP CPL. X=19MM 09
7800103201930
|
$324.71 | ||
|
Available to order. Add to View Price |
|||
|
#34
TOP TRIPLE CLAMP D=54MM 09
5940103401930
|
$263.22 | ||
|
Available to order. Add to View Price |
|||
|
#36
Steering head screw M20x1.5 SW=27
54801036000
Superseded by 54801036300
|
$13.19 | ||
|
Unavailable |
|||
|
#38
HANDLEBAR CLAMP 28MM
59401038000
Superseded by 77201038000
|
$29.47 | ||
|
Available to order. Add to View Price |
|||
|
#39
HANDLEB.SUPP. D=28MM H=37MM 05
59401039037
|
$40.14 | ||
|
Available to order. Add to View Price |
|||
|
#81
TAPERED ROLLER BEARING CPL. 06
54201081100
|
$60.05 | ||
|
Available to order. Add to View Price |
|||
|
#82
O-RING SUPPORT W. SEALING LIP
54601084200
Superseded by 77701084000
|
$22.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#84
STEARING HEAD GASKET TOP
54601184000
|
$8.35 | ||
|
Available to order. Add to View Price |
|||
|
#85
CLAMP FOR SPEED CABLE D=6MM 08
7800108500004
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#86
STEERING HEAD COVER
54201086000
|
$10.00 | ||
|
Unavailable |
|||
|
#91
SPECIAL SCREW M6X12,5 WS=8
59001092050
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92
FORK PROT. L/S+R/S ORANGE
7800109400004
Superseded by 7800109420004
|
$36.40 | ||
|
Unavailable |
|||
