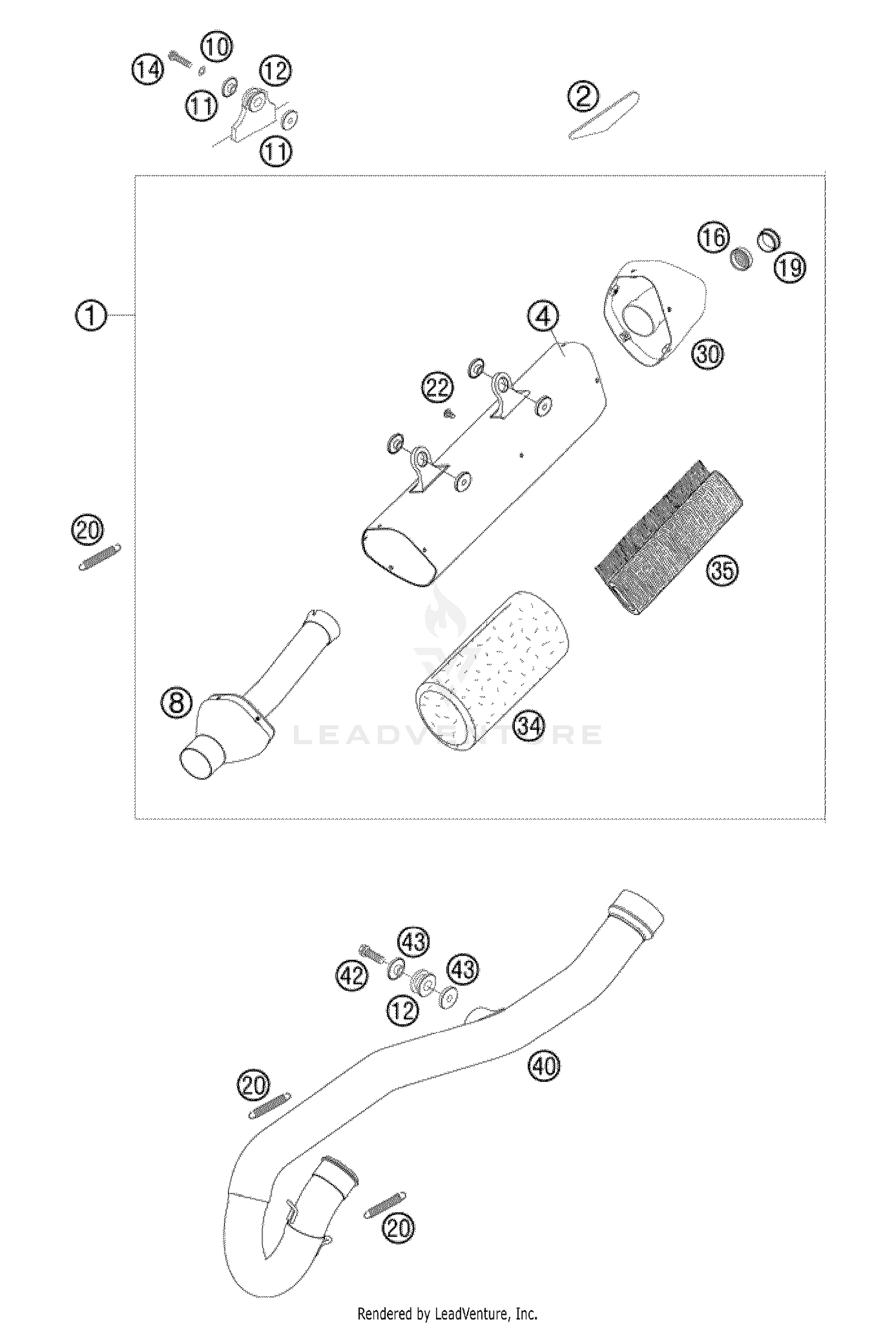

Exhaust System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST SILENCER SPARKY XCF-W
78005082000
|
$656.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
THERMAL PROTECTION FOIL 07
77308013050
|
$11.32 | ||
|
Available to order. Add to View Price |
|||
|
#4
SILENCER HOUSING XC-F USA 08
78005082050
|
$147.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
SIL. CONNECT. CAP CPL.EXC-F 07
77005081009
|
$143.52 | ||
|
Available to order. Add to View Price |
|||
|
#10
spring washer DIN 137 B - 6
0137060003
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BUSHING 7.5x12x28x7.6 07
77305069000
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMP. COMPON. BLACK
54605068000
Superseded by 77205068000
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#14
HH collar screw M6x30 TX30
0025060306
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
THROTTLE ELEMENT CPL. EXC 07
77005081065
|
$18.69 | ||
|
Available to order. Add to View Price |
|||
|
#19
SIL. ELEMENT EXC-F 07
77005081055
|
$11.54 | ||
|
Available to order. Add to View Price |
|||
|
#20
Tension spring L=65mm
50305016000
Superseded by A46005016000
|
$5.38 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
SCREW TORX M5X10 05
58605083010
|
$2.99 | ||
|
Unavailable |
|||
|
#30
ENDCAP SPARKY ATV 08
83005082070
|
$110.53 | ||
|
Available to order. Add to View Price |
|||
|
#34
STUFFING YARN 400G
58705078350
Superseded by 77005078400
|
$92.39 | ||
|
Available to order. Add to View Price |
|||
|
#35
STUFFING YARN REAR
77005081016
Superseded by 77005078050
|
$48.28 | ||
|
Available to order. Add to View Price |
|||
|
#40
EXHAUST MANIFOLD 250 EXC-F 07
77005007100
|
$481.57 | ||
|
Available to order. Add to View Price |
|||
|
#42
HH collar screw M8x25
0025080256
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
BUSHING FOR EXHAUST SUPPORT 03
59405069000
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
