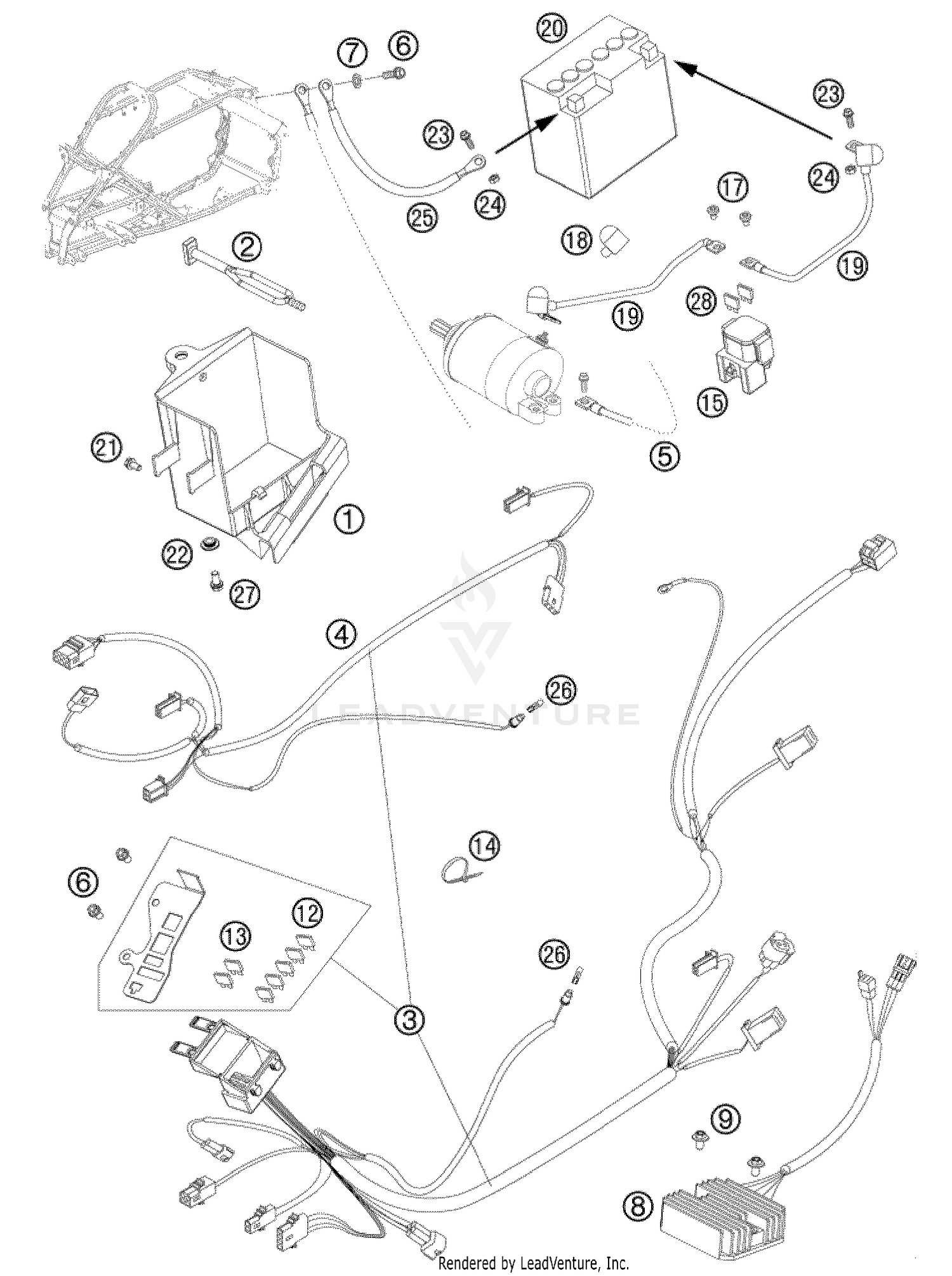

Wiring Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BATTERY BOX
83011055000
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER L=145MM
50303018000
|
$7.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
WIRING HARNESS ATV SX 2009
83511075050
|
$210.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
LIGHTING WIRING HARNESS 08
83011079000
|
$30.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
GROUND CABLE 2
83011097100
|
$14.07 | ||
|
Available to order. Add to View Price |
|||
|
#6
HH collar screw M6x16 TX30
0025060166
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CONTACT WASHER M6 VSV-K6
58411098100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
VOLTAGE REGULATOR
83011034000
|
$211.41 | ||
|
Available to order. Add to View Price |
|||
|
#9
HH collar screw M6x20 TX30
0025060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
FUSE 10 A 2000
58011109110
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
FUSE 15 A
58011109115
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CABLE TIE 140/2,5MM BLACK
44011076100
Superseded by 44011076140
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CABLE TIE 200/3,6MM BLACK
44011076200
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
STARTER RELAY 12V '99
58211058000
|
$85.46 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
AH OVAL SCREW ISO 7380 M 6X8
0902060083
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PROTECTION CAP F. STARTER ENG.
58440099000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
STARTER CABLE
83011059000
|
$15.80 | ||
|
Available to order. Add to View Price |
|||
|
#20
BATTERY 12V 4AH YTX5L-BS
58511053000
|
$131.88 | ||
|
Available to order. Add to View Price |
|||
|
#21
HH collar screw M5x12 TX30
0025050126
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
Collar bushing 6x11x16x5áMM
50308052000
Superseded by 79608152000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR SCREW M6X12 TX
0023060123
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
hex nut DIN 934 M6
0934060003
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
GROUND CABLE 1
83011097000
|
$11.54 | ||
|
Available to order. Add to View Price |
|||
|
#26
BULB 12V 2,3W (W2X4,6D)
49111425000
Superseded by 49111425200
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
HH collar screw M6x12 TX30
0025060126
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
FUSE 20 A
58011109120
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
