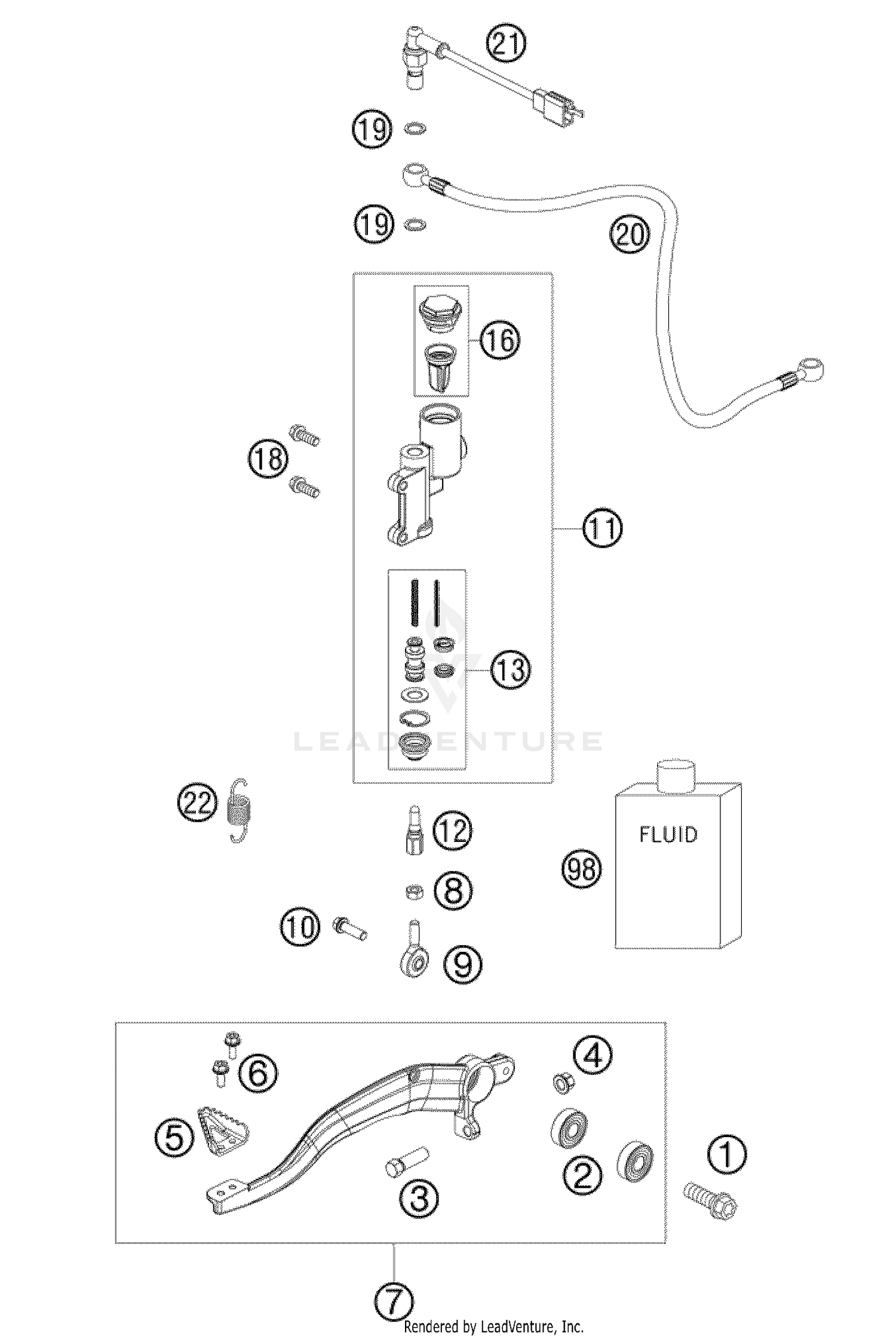

Rear Brake Control Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHCS M10x30 TX45
0035100309S
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
deep groove ball bearing SKF 6000-2RS1
0625060002
|
$14.51 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPECIAL SCREW M8X26 WS=10
59001037000
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
flanged nut M8 WS10
46030045000
|
$9.23 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
STEP PLATE FOOT BRAKE LEVER 03
60013051000
|
$6.59 | ||
|
Available to order. Add to View Price |
|||
|
#6
HH collar screw M5x12 TX30
0025050126
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
FOOT BRAKE LEVER CPL. ATV
83013050044
|
$140.37 | ||
|
Available to order. Add to View Price |
|||
|
#8
SELF LOCK. NUT DIN0985-M 6
0985060003
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
Joint head CMP6
54813055000
Superseded by 54813055100
|
$23.42 | ||
|
Available to order. Add to View Price |
|||
|
#10
HH collar screw M6x20 TX30
0025060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
FOOT BRAKE CYL. MAGURA 13MM
83013060000
|
$436.14 | ||
|
Available to order. Add to View Price |
|||
|
#12
PUSH ROD
83013056000
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
REPAIR KIT PISTON MAGURA 13 MM
83013061000
|
$137.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, MEMBRANE MAGURA
83013062000
|
$54.77 | ||
|
Available to order. Add to View Price |
|||
|
#18
HH collar screw M6x16 TX30
0025060166
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
COPPER GASKET
59413013050
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRAKE HOSE REAR
83013070100
|
$261.78 | ||
|
Available to order. Add to View Price |
|||
|
#21
BRAKE LIGHT SWITCH REAR '98
50311051100
|
$43.44 | ||
|
Available to order. Add to View Price |
|||
|
#22
RETURN SPRING F. BRAKE LEVER
83003062000
|
$9.45 | ||
|
Available to order. Add to View Price |
|||
|
#98
BRAKE FLUID DOT5.1 0,25L
00062030000
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
