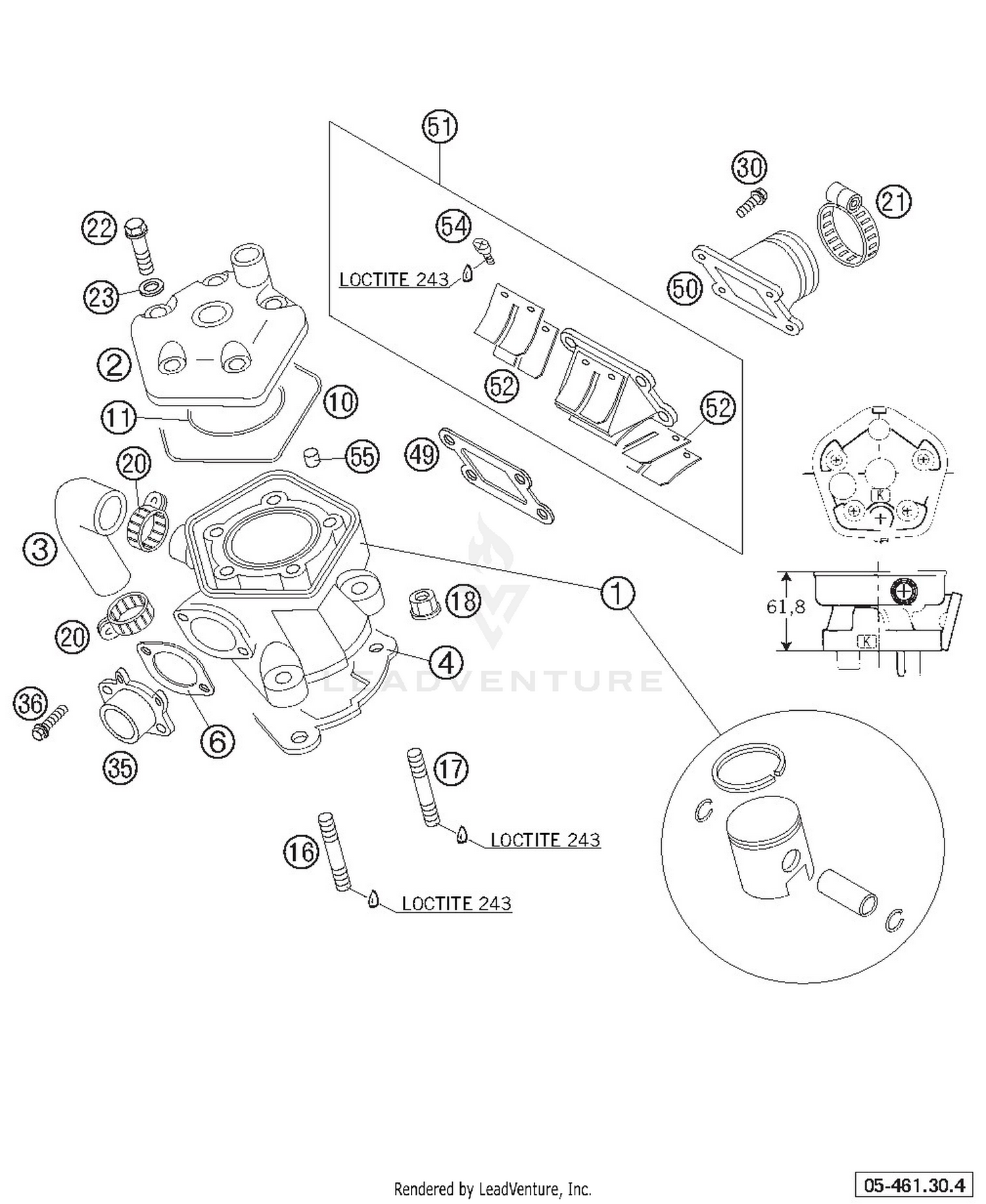

2005 KTM SX 65 Cylinder OEM Parts Diagram

Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Exhaust
+
Item MSRP Qty
#1 CYLINDER W.PISTON 45MM 65SX 03
46030005600
$556.62
Available: Ships in 7-12 days.
Add to View Price
#2 CYLINDERHEAD 65 SX 2003
46030006700
$144.92
Available: Ships in 7-12 days.
Add to View Price
#3 PRE-FORM.HOSE CYL.-CLUTCH COV.
46035027000
$8.10
Available: Ships in 7-12 days.
Add to View Price
#4 CYLINDER BASE GASKET 0,2 MM
46030035020
$11.87
Available: Ships in 7-12 days.
Add to View Price
#4 CYLINDER BASE GASKET 0,4 MM
46030035040
$10.35
Available: Ships in 7-12 days.
Add to View Price
#4 CYLINDER BASE GASKET 0,5 MM
46030035050
$10.26
In Stock: Ready to ship.
Add to View Price
#4 CYLINDER BASE GASKET 0,6 MM
46030035060
$10.14
Available: Ships in 7-12 days.
Add to View Price
#6 EXHAUST GASKET 60/65 CCM
46030046000
$6.77
Available: Ships in 7-12 days.
Add to View Price
#10 O-RING 94,97X1,78
46030037000
$8.63
In Stock: Ready to ship.
Add to View Price
#11 O-RING 53,7X1,78 VITON
46030036000
$9.06
In Stock: Ready to ship.
Add to View Price
#16 STUD M8X41
46030043000
$5.72
Available: Ships in 7-12 days.
Add to View Price
#17 STUD M8X44
46030043100
$5.67
Available: Ships in 7-12 days.
Add to View Price
#18 flanged nut M8 WS10
46030045000
$7.76
Available: Ships in 7-12 days.
Add to View Price
#20 hose clamp 18-29
10001020000
Superseded by 10001020300
$2.73
Available: Ships in 7-12 days.
Add to View Price
#21 HOSE CLAMP 32-52MM D5
31001027000
$6.89
Available: Ships in 7-12 days.
Add to View Price
#22 CYLINDERHEADSCR.HH-M7X38 2003
46030079100
$1.41
Available: Ships in 7-12 days.
Add to View Price
#23 CU-SEAL RING DIN7603- 7,3X12X1
50230032010
Superseded by 0603070121
$0.43
Available: Ships in 7-12 days.
Add to View Price
#30 HH collar screw M6x20 TX30
0015060203
Superseded by 0025060206
$2.02
Available: Ships in 7-12 days.
Add to View Price
#35 EXHAUST FLANGE 65 SX 2002
46036040100
$17.49
Available: Ships in 7-12 days.
Add to View Price
#36 HH collar screw M6x20 TX30
0015060203
Superseded by 0025060206
$2.02
Unavailable
#49 INTAKE VALVE GASKET
46030049000
$2.73
Available: Ships in 7-12 days.
Add to View Price
#50 INTAKE FLANGE
46030050000
$82.71
Available: Ships in 7-12 days.
Add to View Price
#51 MEMBRANE HOUSING CPL.65SX 2001
46030051144
$86.29
Available: Ships in 7-12 days.
Add to View Price
#52 MEMBRANE LOOSE 60/65 CCM
46030052000
$15.54
In Stock: Ready to ship.
Add to View Price
#54 FLAT HEAD SCREW DIN7985-M 3X6
0985030063
$0.11
Available: Ships in 7-12 days.
Add to View Price
#55 DOWEL 7X9X10
45130023000
$4.64
Available: Ships in 7-12 days.
Add to View Price
