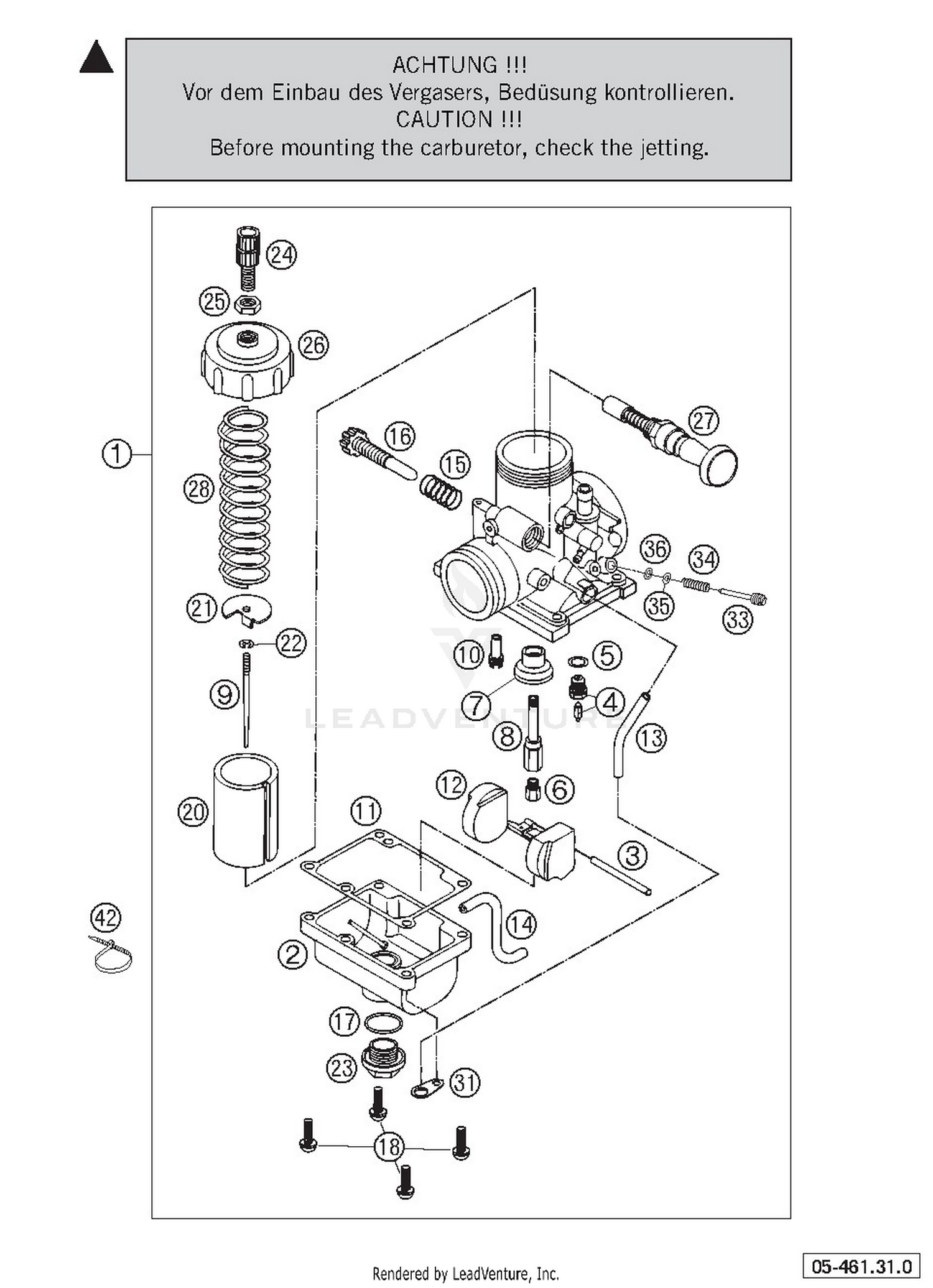

2005 KTM SX 65 Carburaeor Mikuni VM24 OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR MIKUNI VM24-505 04
46131001000
|
$405.97 | ||
|
Available to order. Add to View Price |
|||
|
#2
FLOAT BODY 5-1 VM24
46031011000
|
$29.34 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN 2,5X27
45031008000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NEEDLE VALVE CPL. VM24
46131020000
|
$38.19 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET NEEDLE VALVE 9,1X12X0,5
46031018000
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
MAIN JET 185
45031023185
|
$5.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
MAIN JET 190
45031023190
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
MAIN JET 195
45031023195
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
MAIN JET 200
45031023200
|
$7.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
MAIN JET 205
45031023205
|
$7.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BUFFLE
46031074000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NEEDLE JET 864 0-0
46131021000
|
$25.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
JET NEEDLE MIKUNI 5I14
45031034200
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
IDLING JET 25 MIKUNI
45031007025
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET FLOAT BOWL
45031010100
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#12
FLOAT VM24
46031009000
|
$34.69 | ||
|
Available to order. Add to View Price |
|||
|
#13
PVC-HOSE 3X5MM
52031137001
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
PVC-HOSE 3X5MM
52031137001
|
$4.99 | ||
|
Unavailable |
|||
|
#15
SPRING MIKUNI
45031015100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
THROTTLE VALVE SCREW M6X30
46031019000
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING 17,5X1,4
46031043000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
HH COLLAR SCREW M 4X13 WS=6
45031014016
Superseded by 0016040133
|
$1.99 | ||
|
Unavailable |
|||
|
#20
THROTTLE VALVE 1.5
46131035000
|
$126.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOLDING WASHER
46031032000
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING
45031045000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLUG SCREW M16 WS=17
46031014000
|
$18.19 | ||
|
Available to order. Add to View Price |
|||
|
#24
ADJUSTMENT SCREW M6X0,75
57031525000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
HH-NUT M6X0,75
45031026000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CARBURETOR COVER VM24
46031027000
|
$20.84 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLD STARTER KNOB CPL. VM24
46031048044
|
$38.69 | ||
|
Available to order. Add to View Price |
|||
|
#28
THROTTLE VALVE SPRING VM24
46031030000
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BRACKET FOR BREATHER HOSE
46031081000
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#33
ADJUSTING SCREW MIKUNI
46131017000
|
$9.59 | ||
|
Available to order. Add to View Price |
|||
|
#34
COMPRESSION SPRING ADJUSTER
45031015000
Superseded by 55431017010
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER ADJUSTING SCREW
46131032000
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
O-RING ADJUSTING SCREW
46131033000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
CABLE TIE 140/2,5MM BLACK
44011076100
Superseded by 44011076140
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
