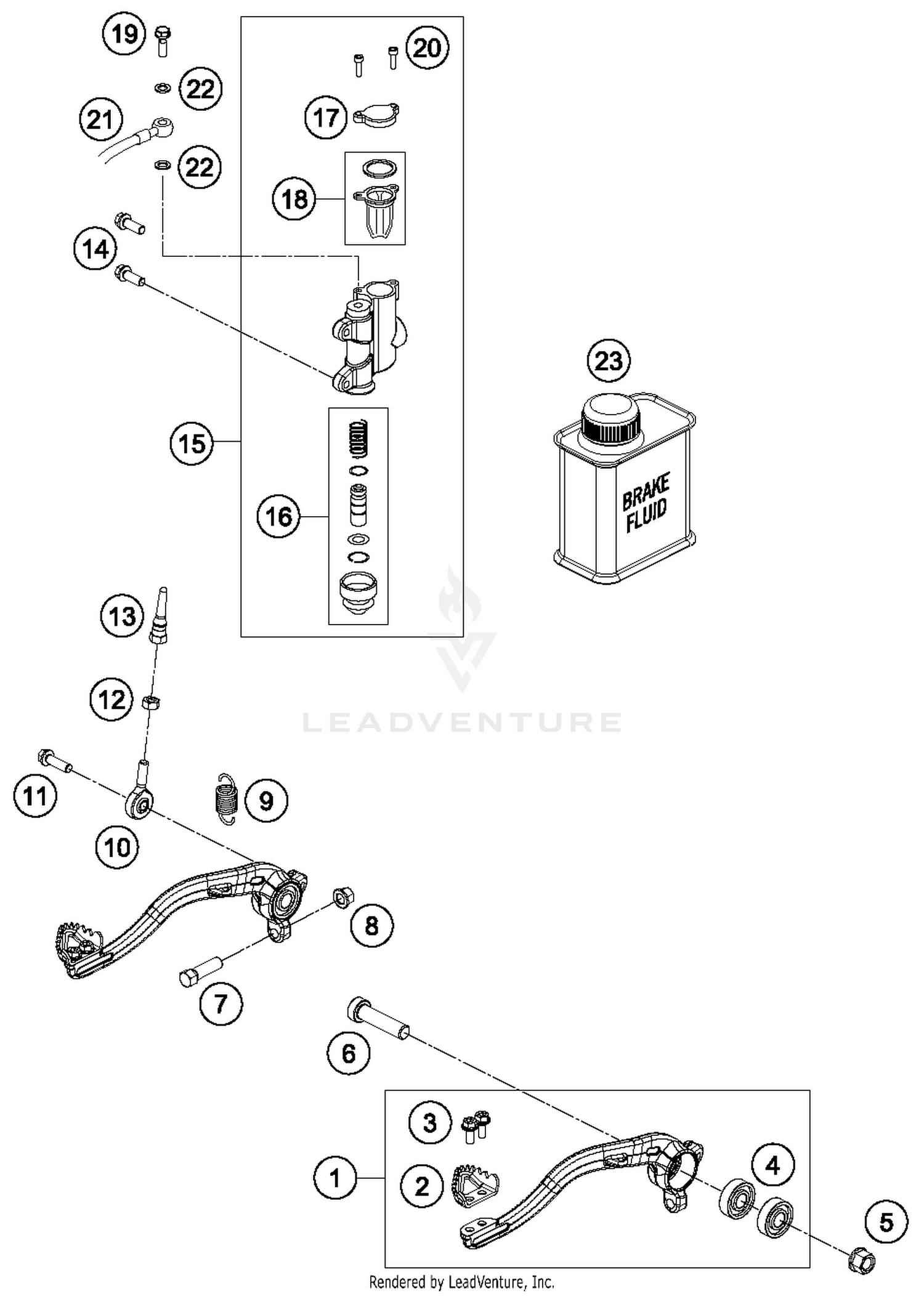

Rear Brake Control Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FOOT BRAKE LEVER 65SX CPL.
46213050044
|
$118.79 | ||
|
Available to order. Add to View Price |
|||
|
#2
STEP PLATE FOR BRAKE LEVER
54813051000
|
$12.97 | ||
|
Available to order. Add to View Price |
|||
|
#3
HH collar screw M5x12 TX30
0025050126
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
deep groove ball bearing SKF 6000-2RS1
0625060002
|
$14.51 | ||
|
Available to order. Add to View Price |
|||
|
#5
Collar nut M10-SW13 ZnNi
54630044000
Superseded by 55530044000
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
AH-COLLAR SCREW M10X40 ISA45
0032100406S
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPECIAL SCREW M8X26 WS=10
59001037000
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
flanged nut M8 WS10
46030045000
|
$9.23 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
Return spring for brake lever
54603062100
Superseded by 54603062200
|
$7.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SWIVEL HEAD KA6 INNOX
46213055000
|
$51.36 | ||
|
Available to order. Add to View Price |
|||
|
#11
HH collar screw M6x20 TX30
0025060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
hex nut DIN 934 M6
0934060003
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PUSH ROD
46213056000
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#14
HH collar screw M6x16 TX30
0025060166
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
FOOT BRAKE CYL. REAR CPL. D=12
4701306030001S
|
$222.52 | ||
|
Available to order. Add to View Price |
|||
|
#16
REP. SET PISTON REAR D=12 2004
47013061100
|
$88.76 | ||
|
Available to order. Add to View Price |
|||
|
#17
CYLINDER COVER REAR 85 SX 03
47013062000
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET CYLINDER COVER REAR 03
47013063000
|
$12.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
HOLLOW SCREW BRAKE CYLINDER 03
47013025000
|
$12.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
AH.SCREW DIN0912-M 4X10
0912040103
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BRAKE HOSE REAR 65 SX 09
46213070000
|
$119.78 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING 8,00X1,00 FORMULA
0770080019
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BRAKE FLUID DOT5.1 0,25L
00062030000
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
