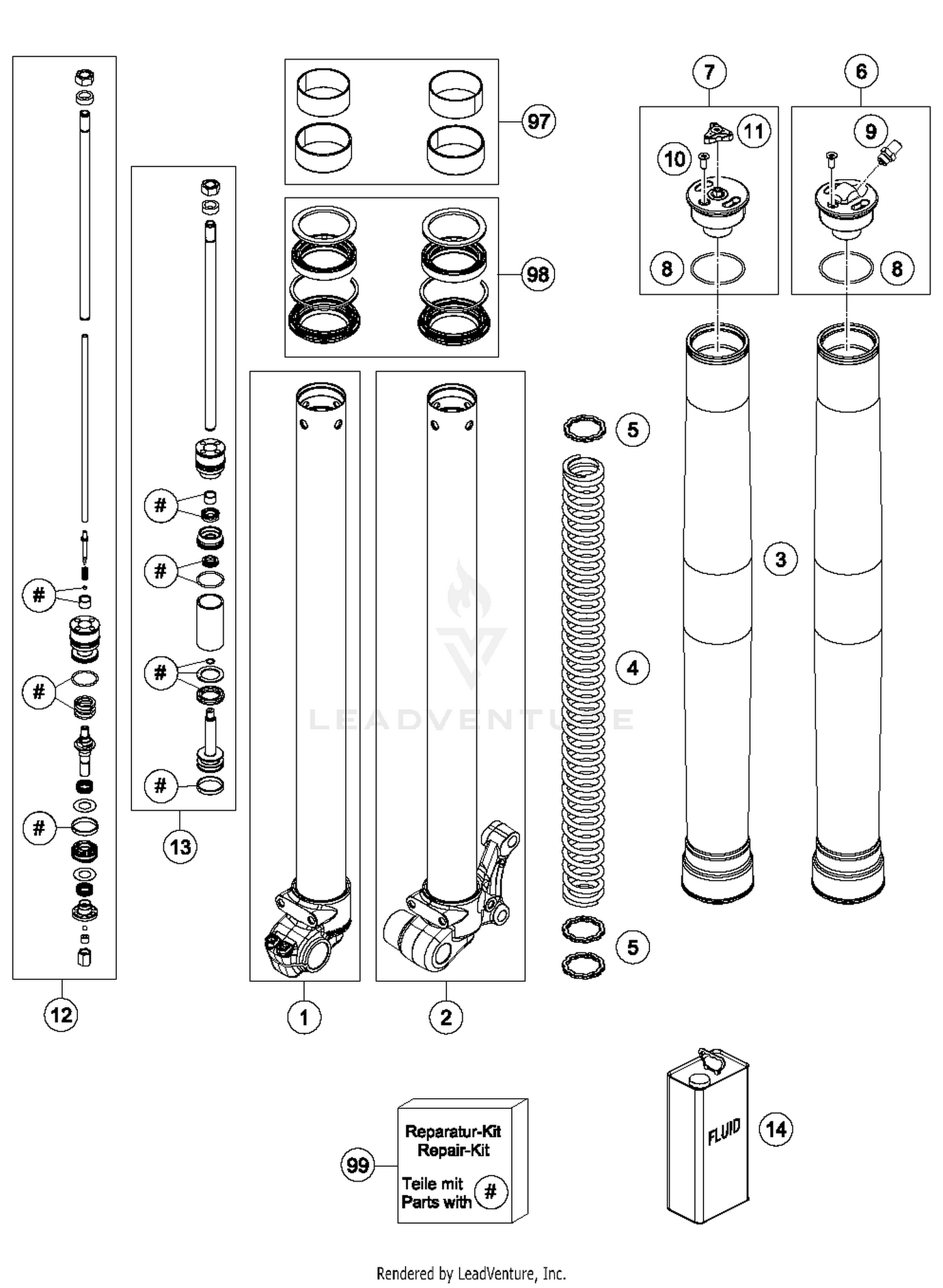

Front Fork Disassembled Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE CLAMP KTM 65SX R/S. CPL.
35480455S4
|
$384.55 | ||
|
Available to order. Add to View Price |
|||
|
#2
AXLE CLAMP KTM 65SX L/S CPL.
35480466S3
|
$384.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
Fork outer tube 36x465 dt44 db48
35480564
|
$248.37 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING 2,8N/MM D3,6 SET
95010044S
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Washer 22x30x2,5
35480497
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
Screw cap M38x1,5 air cpl.
35480548S
|
$146.84 | ||
|
Available to order. Add to View Price |
|||
|
#7
Screw cap M38x1,5 air rebound cpl.
35480507S1
|
$86.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-ring 35x1,5 NBR70 yellow
46180581
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#9
Schrader valve M8x1 cmpl.
46180662
Superseded by 48601494ST
|
$29.39 | ||
|
Available to order. Add to View Price |
|||
|
#10
ISA countersunk head screw M4x8 acc draw
600003
Superseded by 00700007
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
ADJUSTER REB. RED CPL.
48601118S
Superseded by 48601118ST
|
$4.39 | ||
|
Unavailable |
|||
|
#12
PISTON ROD SX 65 CPL. RIGHT
35480551S4
|
$496.97 | ||
|
Available to order. Add to View Price |
|||
|
#13
PISTON ROD SX 65 CPL. LEFT
35480551S5
|
$430.28 | ||
|
Available to order. Add to View Price |
|||
|
#14
Fork Fluid Viscosity 4.0 5L
48601166S1
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#97
BUSHING KIT 35MM
RP10006
Superseded by RP10006T
|
$35.52 | ||
|
Available to order. Add to View Price |
|||
|
#98
gasket kit 35mm black
RP10007
Superseded by RP10027T
|
$66.98 | ||
|
Available to order. Add to View Price |
|||
|
#99
REPAIR KIT 50+65SX AIR
RP10008
Superseded by RP10008T
|
$49.16 | ||
|
Available to order. Add to View Price |
|||
