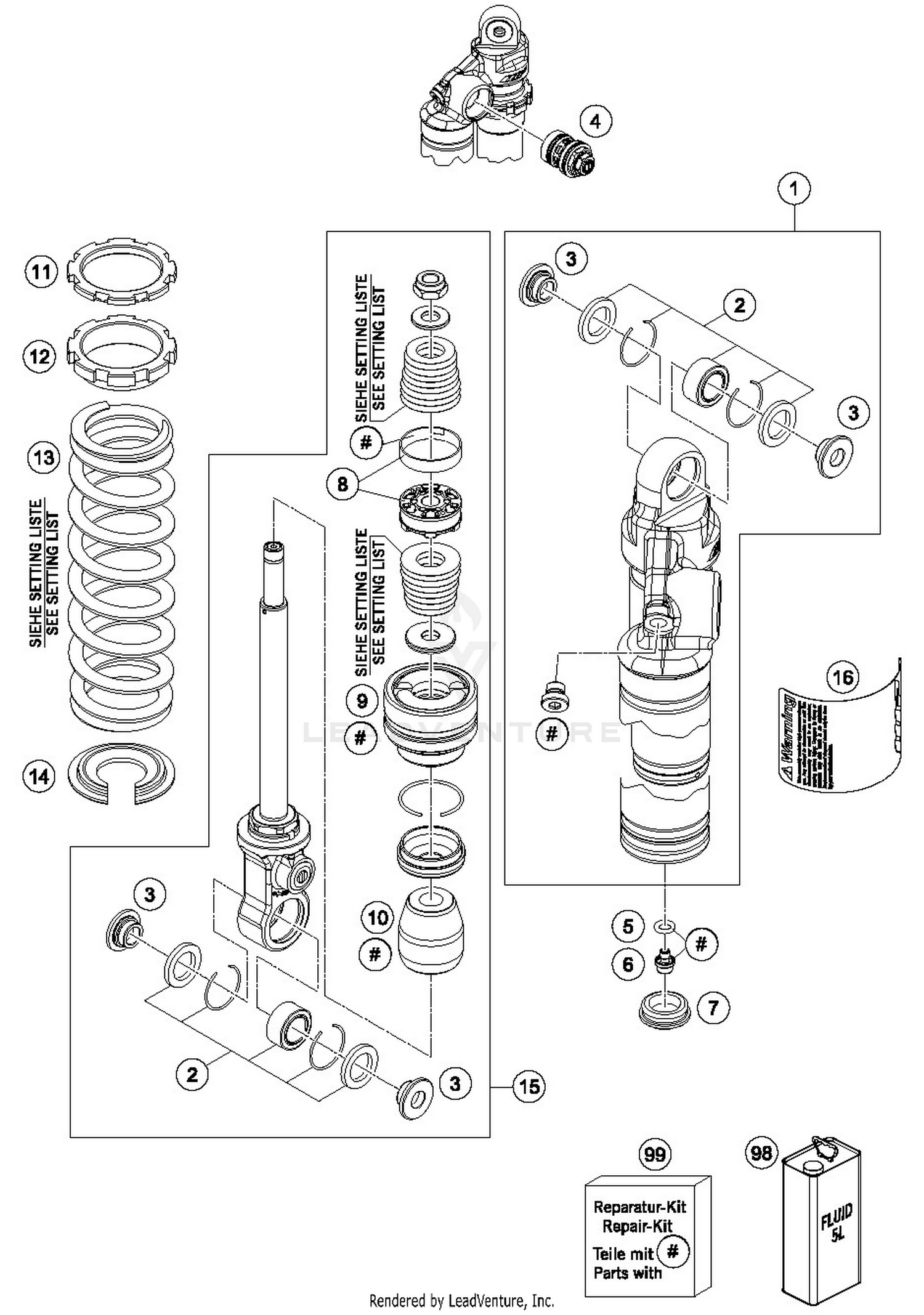

Shock Absorber Disassembled Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MONOSHOCK TOP PART CPL.
36120846S1
|
$522.38 | ||
|
Available to order. Add to View Price |
|||
|
#2
Ball joint bearing kit top 12mm
R12012
Superseded by R12012T
|
$42.01 | ||
|
Available to order. Add to View Price |
|||
|
#3
Distance bush 10x15/18/24,5x9,5
46180009
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#4
Compression cpl.
50181101S9
|
$111.09 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-ring 5,28x1,78 HNBR70 red
46810893
Superseded by S208600003000FB
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG SCREW M5X6 CPL.
36120151
Superseded by 36120151ST
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#7
Rubber cap do not open 22x5,5 NBR
46811208
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Piston 10,05x35,5x13,7 3,5/5,5
14460016
|
$68.41 | ||
|
Available to order. Add to View Price |
|||
|
#9
Sealholder 36x26,6 cpl.
36120787S
|
$90.30 | ||
|
Available to order. Add to View Price |
|||
|
#10
Rubber pad 13,9x38x43 black
36120799
|
$15.17 | ||
|
Available to order. Add to View Price |
|||
|
#11
Lock nut shock M44x1,5
36120015
|
$36.18 | ||
|
Available to order. Add to View Price |
|||
|
#12
Adjustment nut shock M44x1,5
36120418
|
$53.78 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHOCK SPRING 35N/MM - 210MM
93010224S
|
$183.03 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHOCK SPRING 40N/MM - 210MM
93010225S
|
$183.03 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHOCK SPRING 45N/MM - 210MM
93010226S
|
$183.03 | ||
|
Available to order. Add to View Price |
|||
|
#14
Spring retainer 27x57x2
36120386
|
$31.78 | ||
|
Available to order. Add to View Price |
|||
|
#15
MONOSHOCK LOWER PART CPL.
36120781S12
|
$396.76 | ||
|
Available to order. Add to View Price |
|||
|
#16
Sticker WP warning 65x40
52000143
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#98
SHOCK ABSORBER FLUID 5 LT
50180751S1
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#99
REPAIR-KIT
R12023
Superseded by R308T
|
$76.55 | ||
|
Unavailable |
|||
