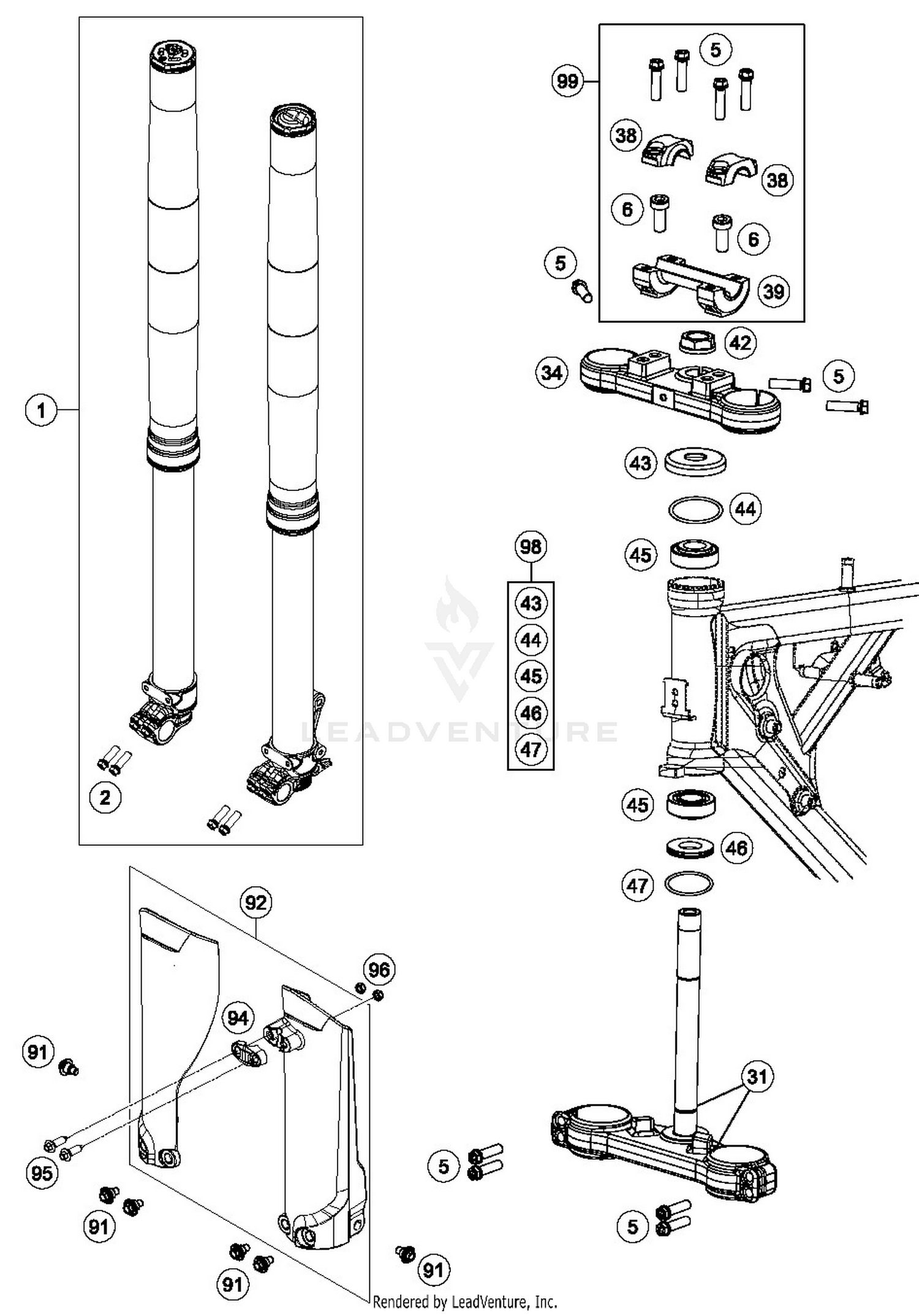

Front Fork, Triple Clamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Fork 65 SX/TC 20
07186Q0301
Superseded by 07186T0301
|
$2,003.60 | ||
|
Available to order. Add to View Price |
|||
|
#2
HH collar screw M6x30 TX30
0025060306
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
HH collar screw M8x30
0025080306
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
AH-COLLAR SCREW M10X25 ISA45
0032100256S
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
BOT.FORK PLATE CPL.
46201032022
|
$260.03 | ||
|
Available to order. Add to View Price |
|||
|
#34
TOP TRIPLE CLAMP
45201034022
|
$180.39 | ||
|
Available to order. Add to View Price |
|||
|
#38
HANDLEBAR CLAMP D=22MM 2001
50301038000
|
$25.29 | ||
|
Available to order. Add to View Price |
|||
|
#39
HANDLEBAR SUPPORT 50SX D=22MM
45201039000
|
$73.25 | ||
|
Available to order. Add to View Price |
|||
|
#42
HH NUT M20X1,5 WS=27 RIGHT
59030029000
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
|
#43
COVERING CAP
49001086000
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#44
O-RING 49,00X2,50 NBR
0770049025
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
TAPERED ROLLER BEARING 32004X
49001081000
|
$49.60 | ||
|
Available to order. Add to View Price |
|||
|
#46
PROTECTION RING 20,1X39X5
46001086000
|
$10.11 | ||
|
Available to order. Add to View Price |
|||
|
#47
O-RING 36,00X3,00 NBR
0770360030
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#91
SPECIAL SCREW M6X12,5 WS=8
59001092050
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92
Fork protection kit 50/65
4630109400028A
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#94
Clamp for brake hose
4630108500028
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#95
SCREW F. PLASTIC K60X20AL SW6
0017060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#96
SELF LOCKING NUT DIN0985-M 5
0985050003
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#98
Stearing Head repair kit Mini
00050000931
Superseded by 49001081044
|
$82.38 | ||
|
Available to order. Add to View Price |
|||
|
#99
HANDLEBAR SUPPORT KIT 50SX '12
00050000925
|
$100.97 | ||
|
Available to order. Add to View Price |
|||
