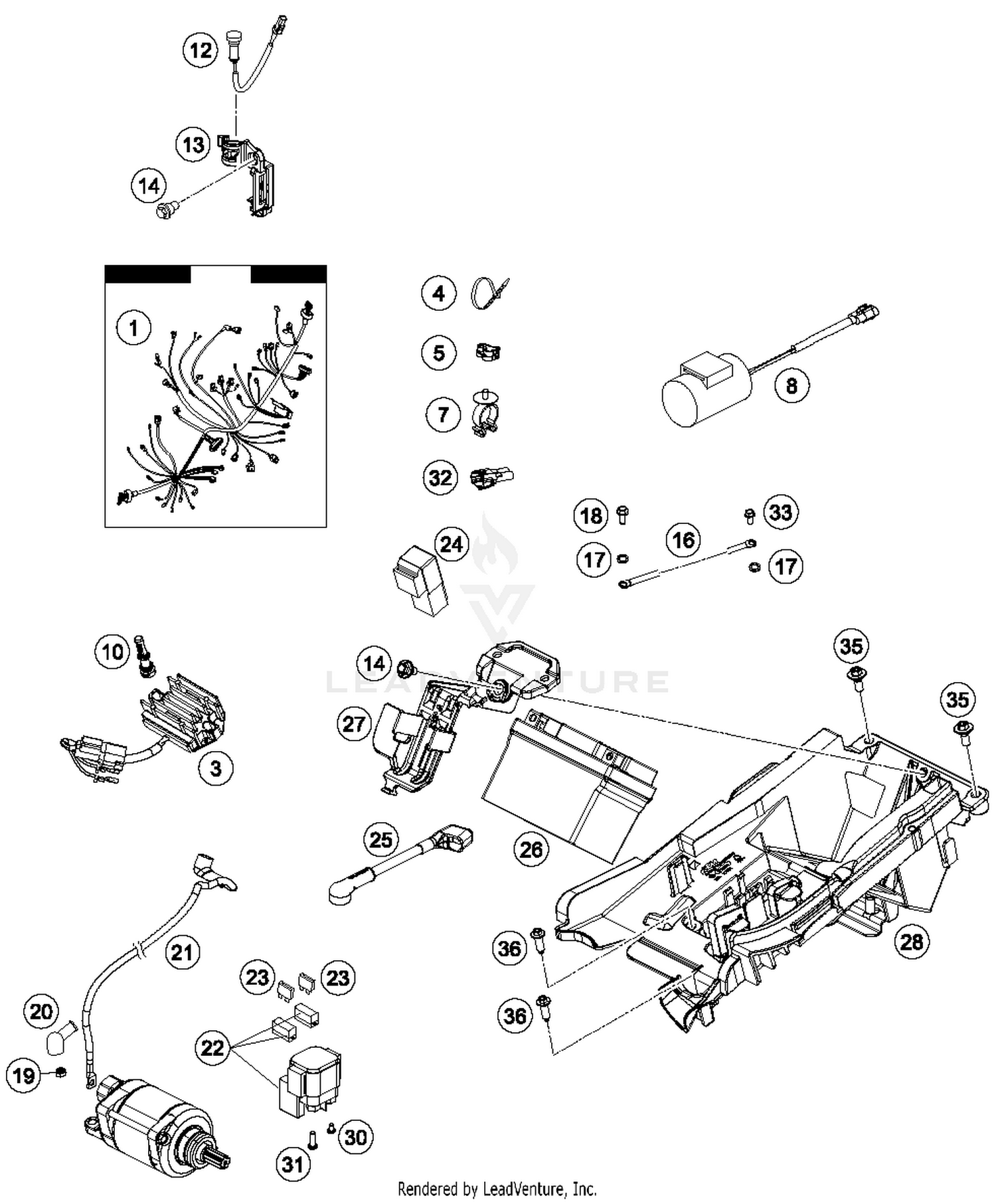

Wiring Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Main wiring harness 2020
79111075000
Superseded by 79111075100
|
$450.33 | ||
|
Available to order. Add to View Price |
|||
|
#3
VOLTAGE REGULATOR 09
77211034000
|
$221.64 | ||
|
Available to order. Add to View Price |
|||
|
#4
CABLE TIE 140/2,5MM BLACK
44011076140
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
CABLE TIE 200/3,6MM BLACK
44011076200
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CABLE TIE 300/4,8MM BLACK
44011076305
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
CABLE GUIDE
83013026000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Cable bracket d8
61111041000
Superseded by 79711013010
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CONDENSATOR
77711035000
|
$102.73 | ||
|
Available to order. Add to View Price |
|||
|
#10
Holder control unit
55641030000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
INDICATOR LIGHT LED YELLOW FI
81214083000
|
$36.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
HOLDER INDICATOR LIGHT SX
77214098000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPECIAL SCREW M6X12,5 WS=8
59001092050
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
GROUND CABLE D=6MM L=140MM '97
58411097100
|
$10.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CONTACT WASHER M6 VSV-K6
58411098100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
EJOT SPIRAL SCREW SF M5X10-K
0009050106
|
$2.99 | ||
|
Unavailable |
|||
|
#19
SELF LOCK. NUT DIN0985-M 6
0985060003
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
PROTECTION CAP F. STARTER ENG.
77240099000
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#21
Starterkabel
25111059000
|
$24.63 | ||
|
Available to order. Add to View Price |
|||
|
#22
STARTER RELAY 12V '99
58211058000
|
$85.46 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
FUSE 10 A 2000
58011109110
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
RELAY CM1A-R-12V-H80 07
61111057000
|
$19.79 | ||
|
Available to order. Add to View Price |
|||
|
#25
Batteriekabel
25111059050
|
$24.30 | ||
|
Available to order. Add to View Price |
|||
|
#26
battery 12V/24Wh
79111053000
|
$195.35 | ||
|
Available to order. Add to View Price |
|||
|
#27
battery support
79111056000
|
$6.81 | ||
|
Available to order. Add to View Price |
|||
|
#28
Battery compartment
79111055000
Superseded by 79111155000
|
$37.39 | ||
|
Available to order. Add to View Price |
|||
|
#30
AH OVAL SCREW ISO 7380 M 6X8
0902060083
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Oval head screw AH socket M6x16 A2-70
0738060167
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Endconnector Can-Bus 2017
69011040000
Superseded by 000700000AL001
|
$23.53 | ||
|
Available to order. Add to View Price |
|||
|
#33
HH collar screw M5x12 TX30
0025050126
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
SPECIAL SCREW M6X15X3
83008000015
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
SCREW F. PLASTIC K60X20AL SW6
0017060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
