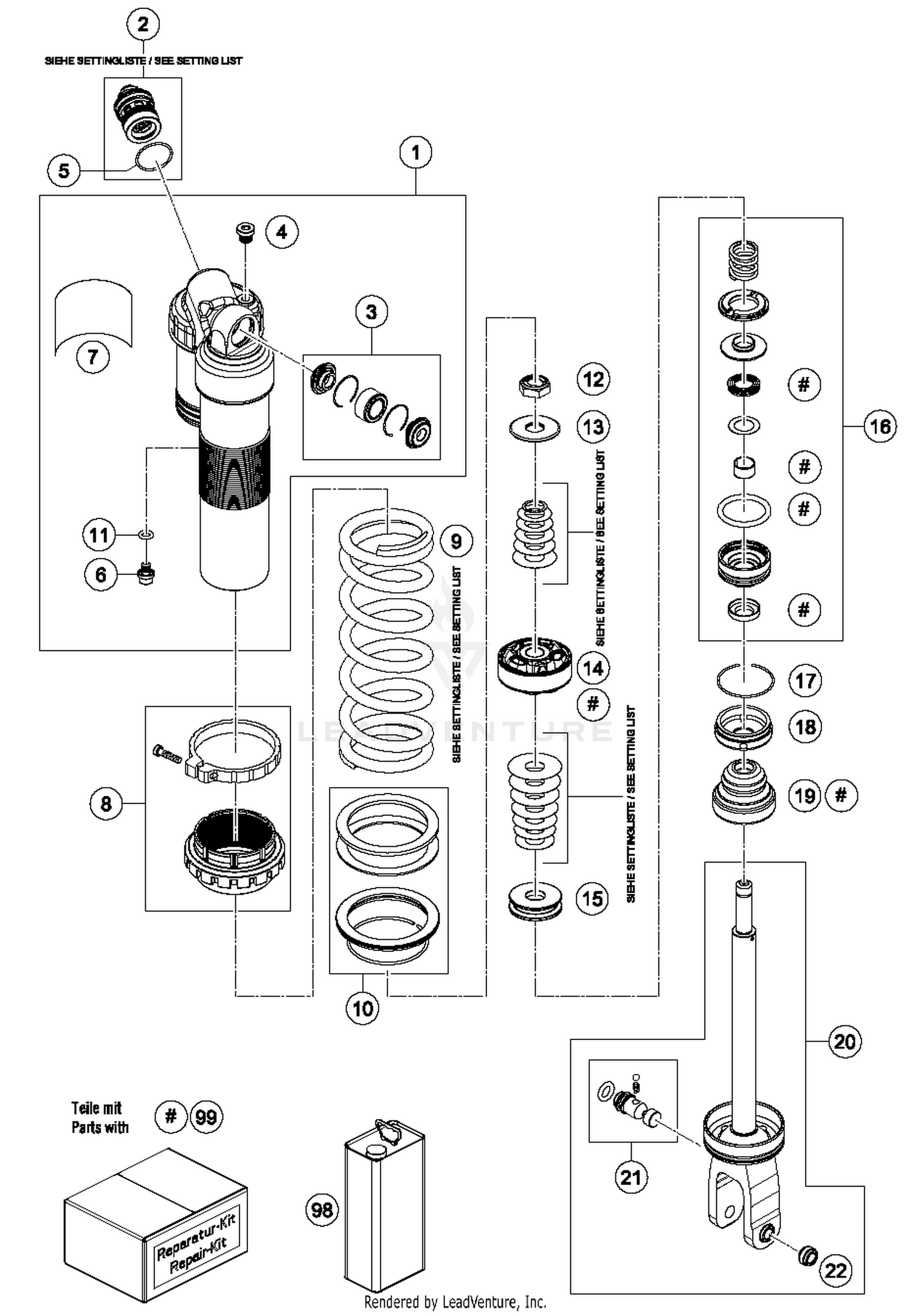

Shock Absorber Disassembled Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MONOSHOCK UPPER PART CPL.
50181144S1
|
$412.05 | ||
|
Available to order. Add to View Price |
|||
|
#2
Compression cpl.
50181101S23
|
$155.86 | ||
|
Available to order. Add to View Price |
|||
|
#3
Ball joint bearing kit 12mm
R12025
|
$44.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
HS cylinder-head screw R1/8 l8
50180095
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
O-ring 25x1,5 Viton70
50180218
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG SCREW M5X6 CPL.
36120151
Superseded by 36120151ST
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#7
Sticker WP warning 55x92
52000146
|
$11.76 | ||
|
Available to order. Add to View Price |
|||
|
#8
Spring retainer M58,1x2 plastic cpl.
50180991S
|
$41.24 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING 260 45 N/MM
91210100S
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING 260 42 N/MM
91210124S
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING 260 48 N/MM
91210101S
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING PLATE SET
50180824S
|
$44.98 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-ring 5,28x1,78 HNBR70 red
46810893
Superseded by S208600003000FB
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#12
Locking nut M12x1 h9 WAF19
50181207
|
$9.23 | ||
|
Available to order. Add to View Price |
|||
|
#13
Rebound disc 12x34x2 h0
50181092
|
$25.07 | ||
|
Available to order. Add to View Price |
|||
|
#14
Piston 12x50x20 cpl.
50181255S
Superseded by 50181255S1
|
$57.96 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
Rebound disc 12x43x12,5 h8
50181091
|
$30.24 | ||
|
Available to order. Add to View Price |
|||
|
#16
DichtungstrSger 50x28 cpl.
50180603SA
Superseded by 50180603S7
|
$74.24 | ||
|
Available to order. Add to View Price |
|||
|
#17
Round-wire snap ring 53x1,75
50180126
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
Cover 50x6 h16
50180626
|
$53.89 | ||
|
Available to order. Add to View Price |
|||
|
#19
Rubber pad 18x58x46 black
50181100
|
$22.76 | ||
|
Available to order. Add to View Price |
|||
|
#20
MONOSHOCK BOTTOM PART CPL.
50181148S1
|
$388.95 | ||
|
Available to order. Add to View Price |
|||
|
#21
ADJUSTING SCREW M8X0,5 CPL.
50181094S
|
$17.37 | ||
|
Available to order. Add to View Price |
|||
|
#22
Bush M10x12/15/13x9,5
46811205
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#98
SHOCK ABSORBER FLUID 5 LT
50180751S1
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#99
Rebuild kit 5018 Link 2019
RP10019
Superseded by RP10019T
|
$108.89 | ||
|
Unavailable |
|||
