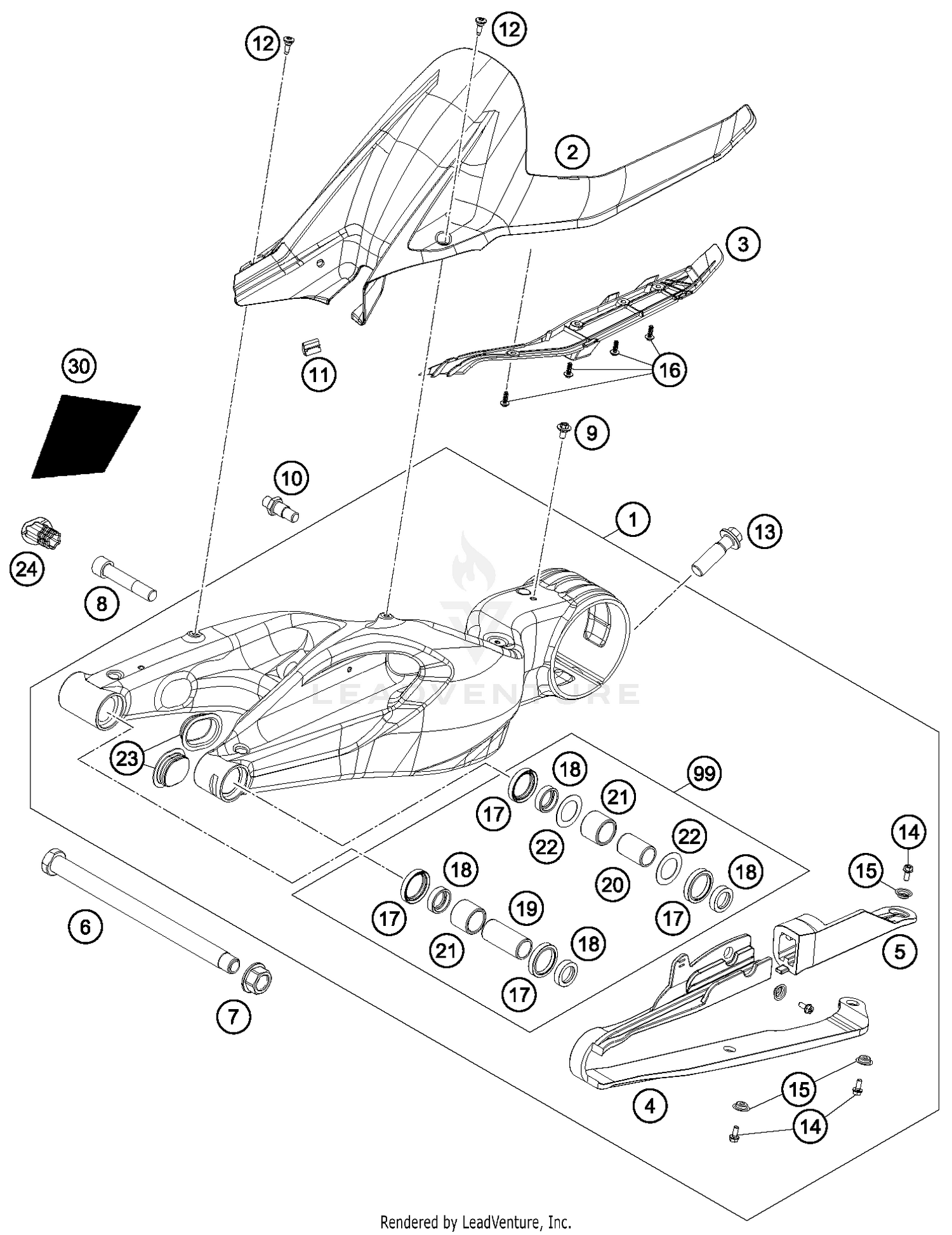

Swing Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Swingarm cmpl. SD-GT
6130403004433A
Superseded by 6140403014433A
|
$1,553.85 | ||
|
Available to order. Add to View Price |
|||
|
#2
REARFENDER
61304050100
|
$56.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET SPLASH PROTECTOR
61304051000
|
$19.68 | ||
|
Available to order. Add to View Price |
|||
|
#4
CHAIN SLIDING GUARD FRONT
61304060000
|
$43.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
CHAIN SLIDING GUARD REAR
61304070000
|
$27.60 | ||
|
Unavailable |
|||
|
#6
Swingarm pivot
69004037244
Superseded by 69004037344
|
$86.78 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR NUT M19X1,5 SW=27MM
60004038200
|
$21.11 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW M14X1,5 L=73MM 03
60004017000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
special screw M6x12x3
83008000012
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT BRAKE SADDLE BRACKET
76004142000
|
$35.41 | ||
|
Available to order. Add to View Price |
|||
|
#11
CABLE SUPPORT
61304042000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
special screw M5x17
69008021060
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HH COLLAR SCREW M16X1,5X55
61310021000
|
$10.22 | ||
|
Available to order. Add to View Price |
|||
|
#14
HH collar screw M5x12 TX30
0025050126
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BUSH FOR CHAINSLIDER GUARD 02
46104066050
|
$9.78 | ||
|
Available to order. Add to View Price |
|||
|
#16
EJOT PT screw K50x14
0081050141
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHAFT SEAL RING 30X40X7
0760304073
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BUCKET F. SHAFT SEAL RING 03
60004034000
|
$9.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
INNER RING JR 20X25X56,5
69004032000
|
$42.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
INNER RING JR20X25X38,5 03
60004032000
|
$21.33 | ||
|
Available to order. Add to View Price |
|||
|
#21
NEEDLE BUSH HK2526B 03
60004031000
|
$12.53 | ||
|
Available to order. Add to View Price |
|||
|
#22
STOP DISK 03
60004033000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLOSING COVER SWINGARM
61304041100
|
$10.22 | ||
|
Available to order. Add to View Price |
|||
|
#24
Plug
61604041040
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Swing protective foil sw.
61604030010
|
$8.57 | ||
|
Available to order. Add to View Price |
|||
|
#99
SWING ARM REP. KIT 08-14
69004230010
|
$113.29 | ||
|
Available to order. Add to View Price |
|||
