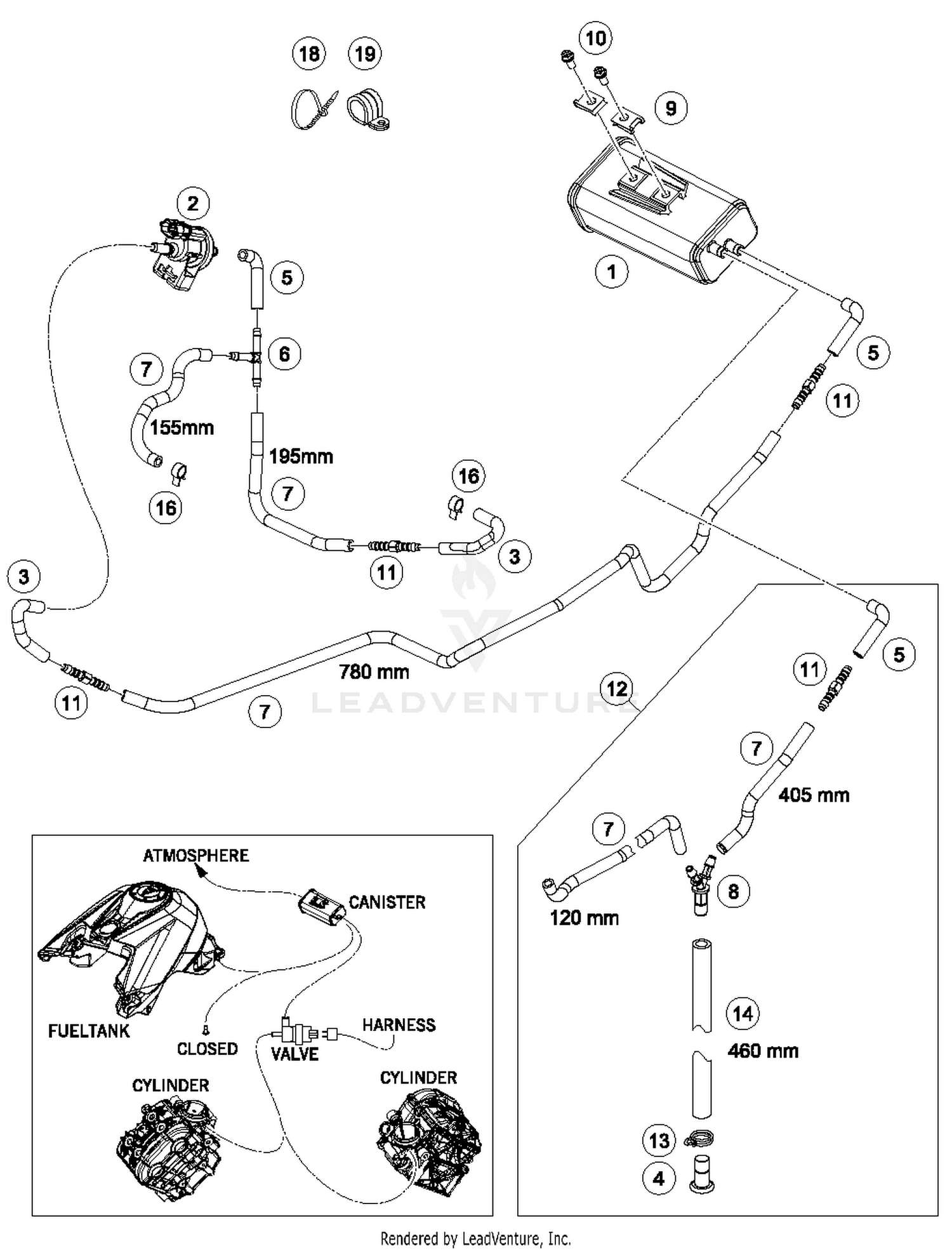

Evaporative Canister Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBON CANISTER
75015001200
|
$78.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
EVAP valve
76015015000
|
$299.74 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE PURGE VALVE
61415021000
|
$29.47 | ||
|
Available to order. Add to View Price |
|||
|
#4
Screw plug ACF
61315026000
Superseded by 61315026100
|
$25.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
PREFORMED HOSE 6X10 FPM
61315022000
|
$12.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
T-CONNECTOR TS-6 03
60015022000
|
$7.03 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE EPA D=6/10 L=2000MM
78015019000
|
$73.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
Y-CONNECTOR YS 6-10-6
61315028100
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#9
clip nut M6
54603048100
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HH collar screw M6x12 TX30
0025060126
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
HOSE CONNECTION STRAIGHT
69015019010
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#12
Hose
61615025033
|
$118.79 | ||
|
Available to order. Add to View Price |
|||
|
#13
YDNAC-CLAMP 10173 (16MM) '98
58431082100
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE EPA D=10/16 L=2000MM
78015119000
|
$287.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP YDNAC 10096F (9,6MM)
59007017000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
CABLE TIE 140/2,5MM BLACK
44011076140
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
CABLE CLAMP D=16
61315027000
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
